• Model NO.：11KV power cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, Kema
• Model：11kv Cable
• Brand：Yifang
• Cores Number：Single Core , Three Core
• Standards：IEC, DIN , Icea,Bs,etc
• Insulation：XLPE , Tr-XLPE
• Transport Package：Steel Drum
• Specification：3X120mm2
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan
• HS Code：8544601200
• Production Capacity：3000km,Year

Basic Info.

Model NO. 11KV power cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, Kema Model 11kv Cable Brand Yifang Cores Number Single Core / Three Core Standards IEC, DIN , Icea,Bs,etc Insulation XLPE / Tr-XLPE Transport Package Steel Drum Specification 3X120mm2 Trademark Yifang cable Origin Zhengzhou, Henan HS Code 8544601200 Production Capacity 3000km/Year

Product Description

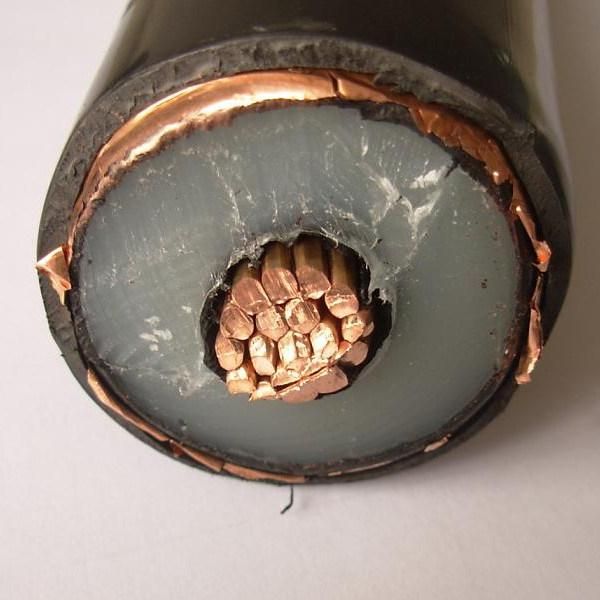

Copper Conductor Copper Tape Screen XLPE Insulated 11kV Power Cable

Application:

The cable can be used for laying indoor, tunnel, underground, canal, water and seabed, etc. The cable can bear external mechanical pressure and moderate pulling force with different design, such as metallic armour, water proof material, corrugated alu sheath, lead sheath, etc.

Standards: IEC, ASTM, BS, DIN, NFC, AS/NZS, CSA, IS, etc.,

Rated Voltage: 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV, 66KV, 220KV

( 5KV, 8KV, 11KV, 12KV, 15KV, 23KV, 33KV, 36KV, 66KV, 220KV )

Constructure:

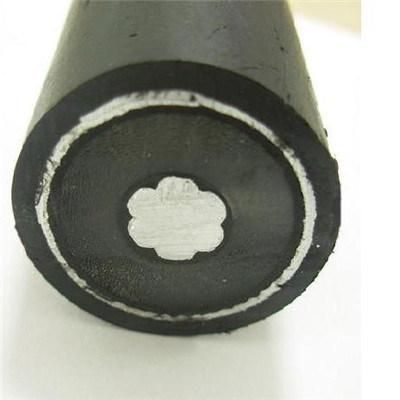

Conductor: Copper / Aluminum

Conductor screen: Semi-conducting compound

Insulation: XLPE / TR-XLPE (133% insulation can be customized )

Insulation Screen: Semi-conducting compound

Metallic Screen: Individual and overall copper tape screen
(copper wire & copper tape shield can be customized )

Bedding: PVC

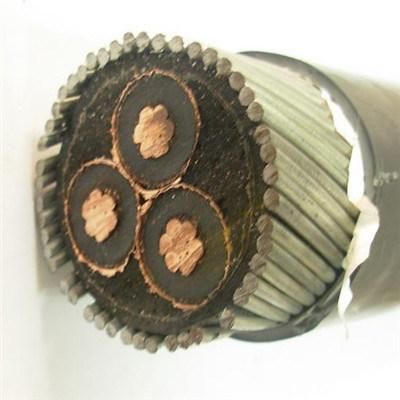

Armoring:
Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA) or Steel tape armoured (STA)

Sheath: PVC, PE, LDPE, LLDPE, LSZH

Color: Red, black or as your request

Conductor Cross-section area is up to 1000mm2

For other detailed information, pls contact us directly.
