• Model NO.：Type R , S , B
• Material Shape：Round Wire
• Range of Application：Temperature Sensors
• Certification：ISO9001, CE, RoHS
• Brand：Ht Elite
• Types：K,J,E,N,T,R,S,B
• Standard：IEC584
• Temperature：0-300 Degree
• Samples：Available
• Packing：200m,Roll, 250m,Roll, 500, Roll
• Other Packing：Plastic Spool
• Production Time：10-15 Days
• Transport Package：in Roll
• Specification：AWG 24, 22, 20, 18, 16, 14, 12
• Trademark：no
• Origin：China
• HS Code：8544491900
• Production Capacity：80, 0000

Basic Info.

Model NO. Type R / S / B Material Shape Round Wire Range of Application Temperature Sensors Certification ISO9001, CE, RoHS Brand Ht Elite Types K/J/E/N/T/R/S/B Standard IEC584 Temperature 0-300 Degree Samples Available Packing 200m/Roll, 250m/Roll, 500, Roll Other Packing Plastic Spool Production Time 10-15 Days Transport Package in Roll Specification AWG 24, 22, 20, 18, 16, 14, 12 Trademark no Origin China HS Code 8544491900 Production Capacity 80, 0000

Product Description

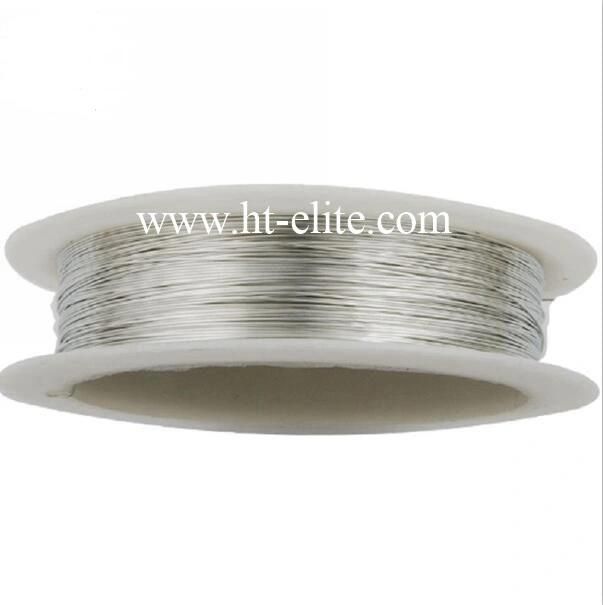

0.5mm Platinum Rhodium Thermocouple Bare Wire S / B / R type


1. Thermocouple Wire Introduction:


We offer Platinum Rhodium Thermocouple Wires that can be availed in different sizes as per the requirements of the clients. We offer Bare Thermocouple Wires that can be availed in different diameter and length as per the requirements of the clients. They are always supplied in pair and calibrated. The Platinum Rhodium Thermocouple Wires that we deal in are used in varied applications related to the measurement of high temperature.

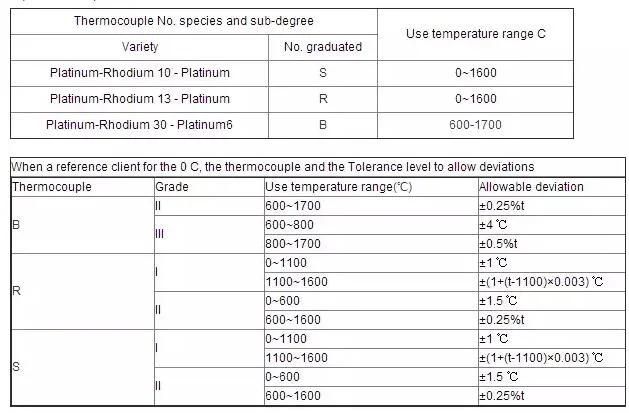

1)Type B (Platinum / Rhodium)

Suited for high temperature measurements up to 1800 °C. Unusually type B thermocouples (due to the shape of their temperature / voltage curve) give the same output at 0 °C and 42 °C. This makes them useless below 50 °C.

2)Type R (Platinum / Rhodium)

Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and high cost makes them unsuitable for general  purpose use.



3)Type S (Platinum / Rhodium)

Suited for high temperature measurements up to 1600 °C. Low sensitivity (10 µV/ °C ) and cost makes them unsuitable for general purpose use. Due to its high stability type S is used as the standard of calibration for the melting point of gold (1064.43°C).

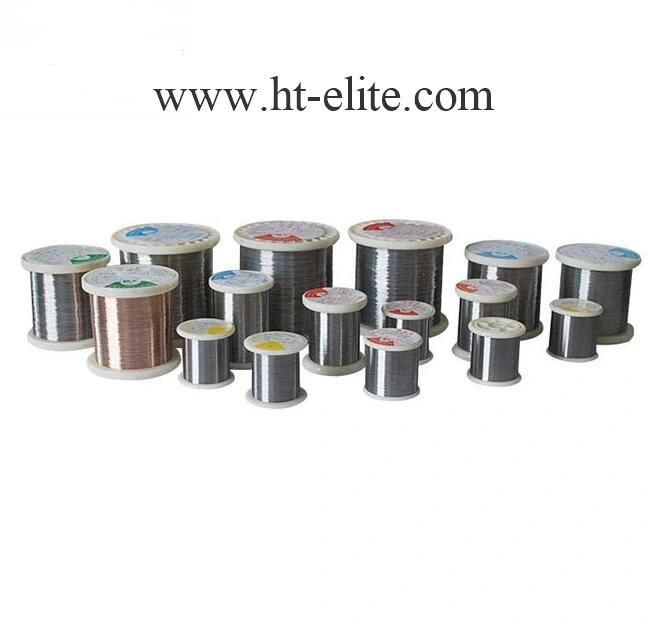

Other product series :

FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.

NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.

CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.

Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.

Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.

Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.

Incoloy alloy: Incoloy 800,800H,800HT,825,925.

Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.

Monel Alloy: Monel 400,K500.

High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.

Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.

Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
