• Model NO.：XLP 100% cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC, SGS
• Model：AWG
• Brand：Hongda
• Use：Dry or Wet Use
• Transport Package：Wooden Drum
• Specification：2AWG to 1000kcmil
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544601200
• Production Capacity：15km,Day

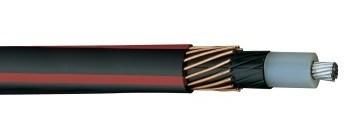

1. Conductor:1350 hard aluminum compact class B, blocked at the longitudinal passage of water by means of blocking wires.2. Semiconductor display on the conductor:Thermoset extruded semiconductor compound.3. Insulation:Cross-linked polyethylene retardant to arborescences (XLP-RA), extruded in a true triple extrusion process. level of isolation of 100% or 133%.4. Semiconductor screen over insulation:Thermoset extruded semiconductor compound, with adequate adhesion to the insulation, which makes it easier to remove the screen.5. Semiconductor W / B Tape:Applied helically under the electrostatic shield, avoiding transverse penetration of moisture (They only correspond to the wet wires in case as required).6. Metal shield:Bare copper wires smoothly applied helically. The total section assigned for each gauge meets the above in the standard NRF-024-CFE.7. Nonconductive W / B Strap:Applied helically on the electrostatic screen, avoiding transverse penetration of moisture (They only correspond to the wet wires in case as required).8. Exterior cover:PVC cover red color or high density polyethylene (HDPE) extruded with three red stripes, with excellent properties mechanical and chemical.
Applications
These cables are for use in environments mainly moist and are used preferably in distribution networks of urban energy. They are suitable for installed directly buried, in trenches, in ducts, ladders or electric pipes.

Xlp 133% Wire Screen Al 15 Kv Medium Voltage Cable
Packaging
On non-returnable wooden spools of 500m.
Tolerance in the length of ± 5%. (It can deliver in different tranches)


 ConductorInsulation
Thickness
(Mils)Concentric
NeutralCond.
Dia.(In)Ins.
Dia.
(In)Ins.
Shield
Diameter (In)Jacket
Dia.(In)Cable
Weight
(Lbs/Kft)Min.
Bending
Radius (In)(A)(B)(C)(D)15kv 133% Aluminum Single Phase - Full Neutral2 Solid Al22010-#140.2580.740.811.0454592 Awg Al22010-#140.2840.760.831.0656491 Solid Al22013-#140.2890.780.851.0962691 Awg Al22013-#140.3240.810.881.1265591/0 Solid Al22016-#140.3250.800.871.1068691/0 Awg Al22016-#140.3640.840.911.14720102/0 Awg Al22013-#120.4080.900.971.24872103/0 Awg Al22016-#120.4580.951.021.29993114/0 Awg Al22020-#120.5150.991.061.33113311250 MCM Al22016-#100.5611.061.151.46139812350 MCM Al22016-#90.6641.161.251.5917211315kv 133% Aluminum Three Phase - One-Third Neutral2 Solid Al2206-#140.2580.750.821.0651092 Awg Al2206-#140.2840.770.841.0853391 Solid Al2206-#140.2890.780.851.0954491 Awg Al2206-#140.3240.810.881.1257391/0 Solid Al2206-#140.3250.820.891.1258691/0 Awg Al2206-#140.3640.850.921.16619102/0 Awg Al2207-#140.4080.900.971.21685103/0 Awg Al2209-#140.4580.951.021.26773114/0 Awg Al22011-#140.5150.991.061.3086111250 MCM Al22013-#140.5611.061.151.39100012350 MCM Al22018-#140.6641.161.251.49122612500 MCM Al22016-#120.7941.291.381.71164914750 MCM Al22024-#120.9741.481.571.902192161000 MCM Al22020-#101.1241.631.752.12280217
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
