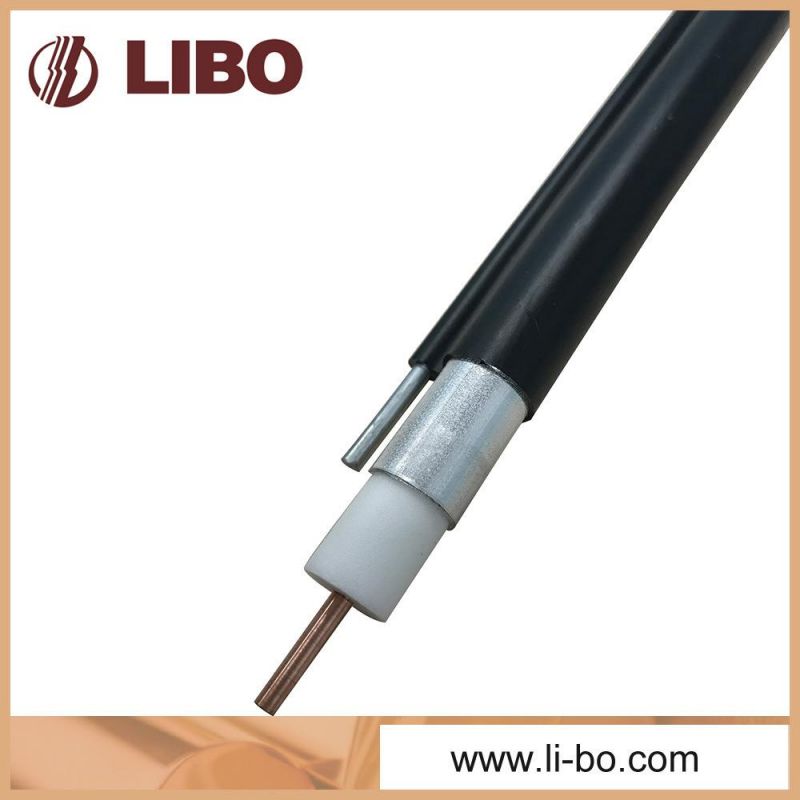

• Model NO.：RG500
• Wire Core Material：Steel
• Certification：CE, ISO, ETL
• Model：Rg500
• Brand：Libo
• Aluminum Thickness：0.64mm
• Outer Jacket Size：14.3mm
• Transport Package：500m,Drum or 750m,Drum or Others
• Specification：PIII 500JCA
• Trademark：LIBO or OEM
• Origin：China
• HS Code：854420000
• Production Capacity：1000km Per Month

Physical dimensions

component

inches

mm

Inner conductor

0.109

2.77±0.3

diameter over dielectric

0.450

11.43

diameter over outer conductor

0.500

12.70

Outer conductor thickness

0.024

0.61

Diameter over jacket

0.560

14.22

Jacket wall thickness

0.030

0.76


Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Maximum D.C resistance @68^OF:
Structure Return loss: 30dB

Inner conductor: 1.35ohms/1000ft (4.43ohms/km)
Outer conductor: 0.37ohms/1000ft (1.21ohms/km)
Loop: 1.72 ohms/1000ft. (5.64 ohms/km)
Attenuation@ 68^OF(20^oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.16

0.52

55MHZ

0.54

1.77

83MHZ

0.66

2.17

211MHZ

1.09

3.58

250MHZ

1.20

3.94

300MHZ

1.31

4.30

350MHZ

1.43

4.69

400MHZ

1.53

5.02

450MHZ

1.63

5.35

500MHZ

1.73

5.67

550MHZ

1.82

5.97

600MHZ

1.91

6.27

750MHZ

2.16

7.09

865MHZ

2.34

7.68

1000MHZ

2.52

8.27



Competitive Advantage:

• The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
• To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable is available; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
• Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
• Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
• Libo cable is equipped with a Provincial-level Research and Development Center.

FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.

Q: May I visit your factory?
A: Sure, welcome any time with prior notice.

Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.

Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.

Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.

Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.
