• Model NO.：NL- 35 , G
• Material Shape：Round Wire
• Range of Application：Telecommunication
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Powtech
• Name：Preformed Dead End Guy Grips
• Transport Package：Wooden Packing
• Specification：CE
• Trademark：Powtech
• Origin：China
• HS Code：73089000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. NL- 35 / G Material Shape Round Wire Range of Application Telecommunication Certification ISO9001, CE, CCC, RoHS Brand Powtech Name Preformed Dead End Guy Grips Transport Package Wooden Packing Specification CE Trademark Powtech Origin China HS Code 73089000 Production Capacity 50000PCS/Month

Product Description

 preformed ground wire tension clamp


Features:
1. Preformed guy grip 7/16 inch
2. For use on Galvanized Steel Strand
3. Length: 965mm
4. Color: Green
5. Preformed guy grips Adopts the steel wire
Details:
1. Preformed guy grips Armor Rod are designed to protect the conductor by Reducing bending, compression, and abrasion at the support point.
2. Preformed guy grips Armor Rod are recommended as protection for spans greater Than 300 ft. (91m).
3. Preformed Armor Rod are designed for use with ADSS, OPGW and ACAR conductors As well as Alumoweld and steel ground wire.
4. The material of Preformed Armor Rod is aluminum alloy or aluminum Covered steel wire.
5. Preformed Armor Rod sets are manufactured with right-hand lay as standard

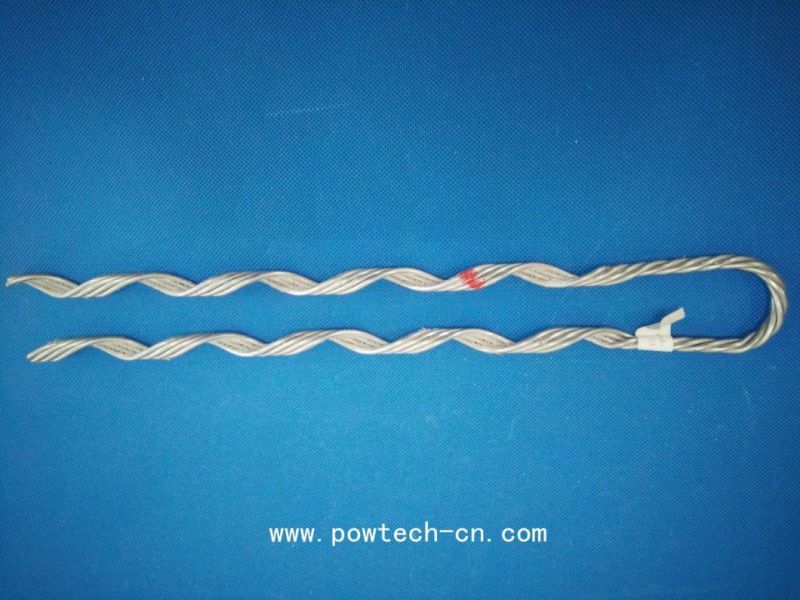

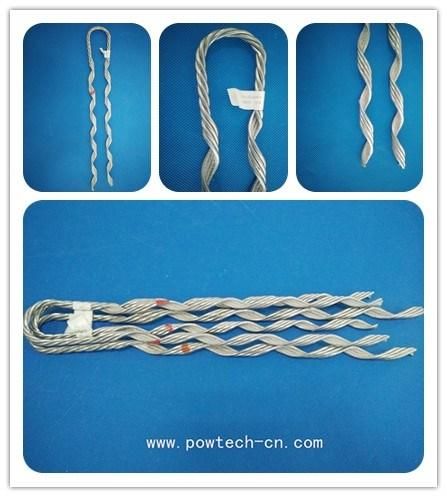

Detailed Images:


Description
Product Name: Preformed guy grips
Model: NL

The Preformed guy end grips are used for fixing terminals tower stay wire and where the large size stay wires are needed, such as electric transmission line, antenna, correspondence and lines etc, which can replace the common U-T clamps and wedge type clamps of line tower. The structure of preformed guy grip is simple. Two legs of preformed wire form an empty pipe, and its rear is a preformed stranding link. After coiled around the stay wire, the two legs of preformed wire can generate great grip strength, and stranding link is fixed on the earth anchor or tower. The unique theory and structure provide the clamp with particular function and vivid characters.
Technical Specifications:

Model	Guy Wire (mm)	Length (mm)	Guy Wire (mm2)	Weight (kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Yellow
NL-120/G	14.0	1460	120	2.2	Yellow

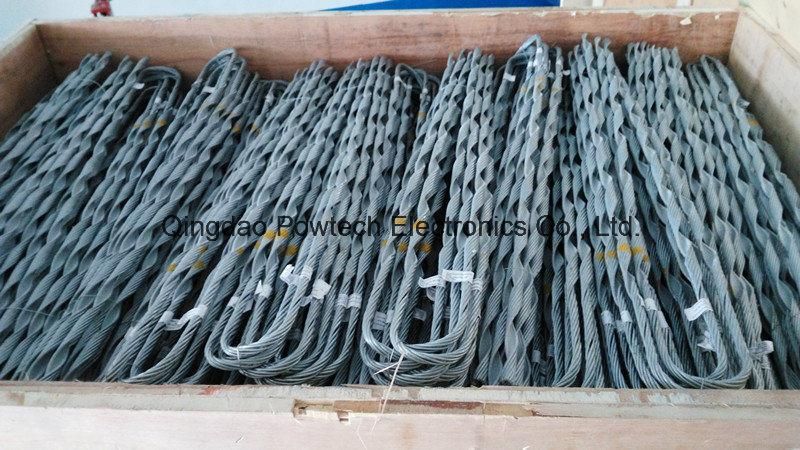

Warehouse:

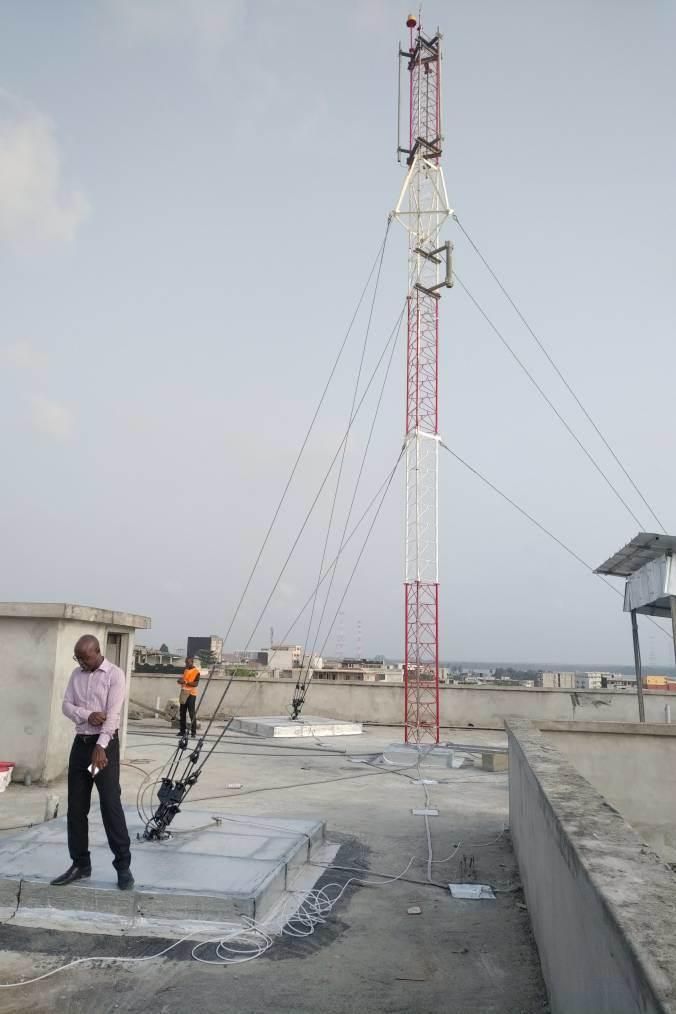

Installation Guide:
