• Model NO.：break out OFC
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：OEM
• Sheath Material：PVC
• Indoor Fiber Optic Cable：Multi Purpose
• Transport Package：1km or 2km Wooden Reel
• Specification：CE, RoHS, ISO9001
• Trademark：SHG or OEM
• Origin：China
• HS Code：85447000
• Production Capacity：10000km Per Month

Basic Info.

Model NO. break out OFC Core Multicore Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand OEM Sheath Material PVC Indoor Fiber Optic Cable Multi Purpose Transport Package 1km or 2km Wooden Reel Specification CE, RoHS, ISO9001 Trademark SHG or OEM Origin China HS Code 85447000 Production Capacity 10000km Per Month

Product Description

Indoor Optical fiber cable, Multi purpose break out fiber cable, 2-12 fibers, made of selected top quality fibers, each subunit composite with Φ900μm tight buffer fiber, aramid yarn, PVC Jacket. 2-12 subunit stranded, FRP strength member, PVC Jacket

Features:
1) Good uniformity of the outer diameter of tight buffer fiber and excellent strippability;
2) Good performance of flame-retardant;
3) Low induced attenuation within the operating temperature range;
4) Excellent geometrical dimension of the fiber;

Application:
1) Data communication;
2) Connection, making jumper, pigtail and building distribution;


Technical Characteristics:

Fiber  Count	Cable  Diameter (mm)	Cable  Weight (kg/km)	Tensile  Strength Long/Short  Term (N)	Crush  Resistance Long/Short  Term (N/100mm)	Bending  Radius  Static/Dynamic (mm)
2	7.2± 0.5	45	200/660	300/1000	20/10
4	7.2± 0.5	45.2	200/660	300/1000	20/10
6	8.3± 0.5	62.5	200/660	300/1000	20/10
8	9.4± 0.5	86	200/660	300/1000	20/10
10	10.7± 0.5	109	200/660	300/1000	20/10
12	12.2± 0.5	140	200/660	300/1000	20/10

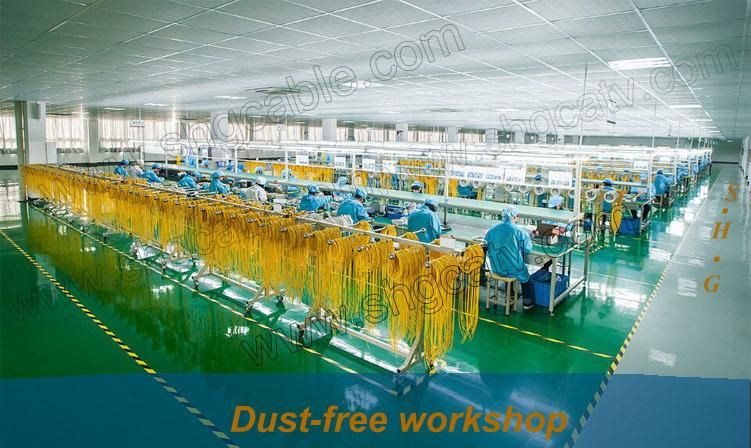

Workshop Corner:




Certificates
