• Model NO.：Mining Cable
• Material Shape：Round Wire
• Range of Application：Mining Driller
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• OEM：Yes
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper
• Trademark：Feiya
• Origin：China
• HS Code：854449210
• Production Capacity：80000 Meter,Meters Per Month

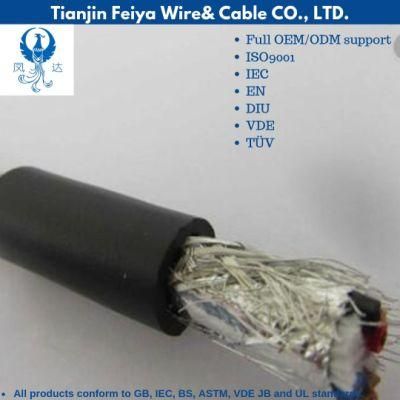

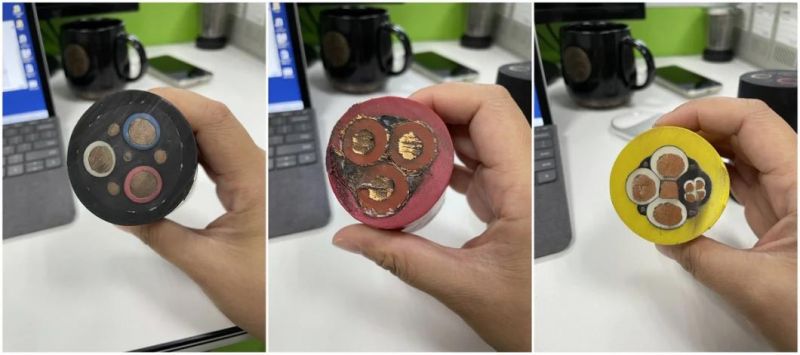

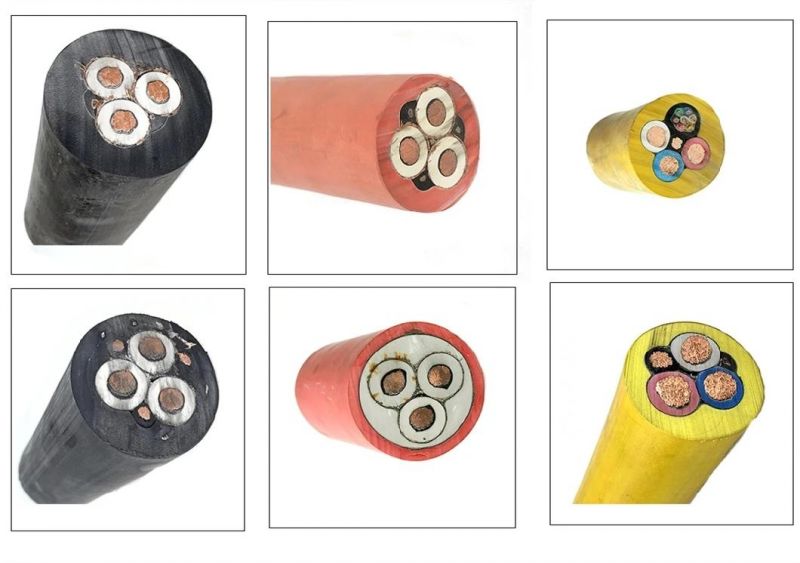

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.Application:These reeling and trailing cables are designed to provide a flexible electrical connection between portable or mobile equipment and a point of supply, and they are variously used in underground coal mines, including main feeder cable for continuous miners, pump cable, and power supply cable.Conductor:Tinned Annealed Copper (Power, Earth and Pilot Cores)Insulation:R-EP-90Sheath:H-85-PCPVoltage:1.1/1.1 kV   to 11/11 kVStandards:AS/NZS 1802:2003, AS/NZS 1125,  and  AS/NZS 3808





Type 241.3 - 3.3/3.3kV - 3 Power Core + 3 Earth Core + Pilot Core





Earth conductors

Pilot conductor

Sheath

Approx Mass kg/100m

Area of each screen
mm²

Thickness of SC PCP covering
mm

Stand size No/mm

Thickness
of EPR covering mm

Thickness including SC PCP Layer
mm

Nominal Overall Diameter
mm

39/0.30

3

1

24/0.20

0.8

5

43.8



63/0.30

4.7

1

24/0.20

0.8

5.3

47.7



87/0.30

6.4

1

24/0.20

0.8

5.6

51.1



117/0.30

8.5

1.2

24/0.20

0.8

6

55.2



36/0.67

13.8

1.2

24/0.20

0.8

6.4

60.3



45/0.67

16.9

1.2

40/0.20

0.8

6.8

63.8



57/0.67

21.2

1.2

40/0.20

0.8

7.2

69.1



74/0.67

27.1

1.2

40/0.20

0.8

7.6

73.8



88/0.67

32.1

1.4

40/0.20

0.8

8

79.2
