DIN 48204 Standard Bare ACSR 490/65mm2 Conductor
YIFANG ELECTRIC GROUP INC.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：None
- Insulation Material：None
Base Info
- Model NO.：ACSR 490,65mm2
- Material Shape：Round Wire
- Range of Application：Overhead Distributing Line
- Certification：ISO9001, CE, UL, CCC
- Brand：Yifang Cable
- Section Area：490,65mm2
- Code Name：ACSR 490,65mm2
- Material：Aluminum Condcutor
- Strands：54+7 Strands
- Standards：DIN 48204

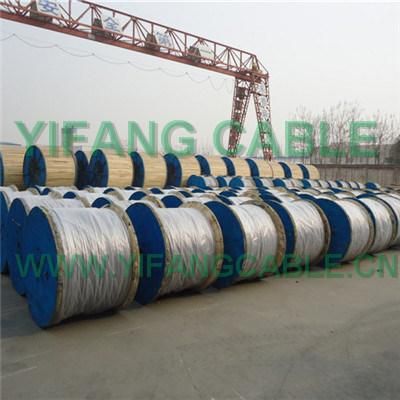

- Transport Package：Wooden Steel Drum
- Specification：2.2m size Drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：7614100000
- Production Capacity：800km Per Month
Description
UNITPARAMETER ACSR 490/65 1. Standards --- DIN 48204 3 Stranding and Wire Diameter of Aluminum Nos/mm 54/3.40 4 Cross-sectional Area of Aluminum mm2 approx. 490.3 5 Stranding and Wire Diameter of Steel Nos/mm 7/3.40 6 Cross-sectional Area of Steel mm2 approx. 63.6 7 Approximate Overall Diameter of Conductor mm approx. 30.6 8 Approximate Weight of Conductor Kg/km 1866 9 Breaking Load KN 153.1 10 Max. DC Resistance at 20ºC Ω/km 0.06434 11 Current Rating A 960 12 Final modulus of elasticity KN mm2 70 13 Coefficient of linear expansion ºC-1 19.3×10-6
