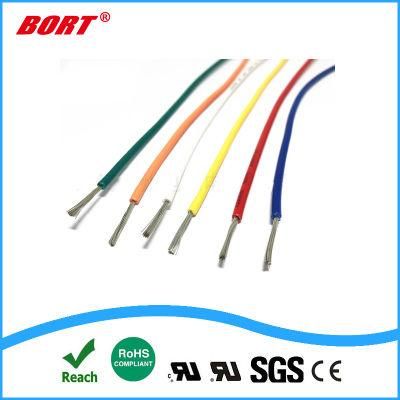

UL, Wire, Solid or Stranded, Latest Style Cable Talk Speaker UL 1430 Cable for Audio and Video
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Internal Wiring
- Conductor Material：Copper
- Sheath Material：Crosslinking
- Insulation Material：Xlpvc
Base Info
- Model NO.：UL-1430
- Material Shape：Round Wire
- Range of Application：Home Appliance
- Certification：ISO9001, UL
- Brand：Bort
- Company Type：Manufacturer
- Factory Directly：Big Discount with Large Order
- Service：OEM, ODM
- Conductor：Stranded, Tinned or Bare Copper Conductor
- Sample：Conventional Sample Free
- Producing Experience：10 Years
- No. of Cores：One Core or Multi-Cores
- Colors：Could Be Customized Color
- Delivery Time：in 7-10days
- Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
- Transport Package：Carton,Pallet
- Specification：Customize
- Trademark：BORT
- Origin：China
- HS Code：8544492900
- Production Capacity：300000km,Year
Description
AWGNO.of Cond Insulation Thick. Outside Thick. Packing mm mm mm m/r Ω/mm 30 7/0.1 0.41 1.10 610 354.33 28 7/0.127 0.41 1.20 610 223.75 26 7/0.16 0.41 1.30 610 139.76 24 11/0.16 0.41 1.40 610 88.36 22 17/0.16 0.41 1.60 610 60.16 20 21/0.178 0.41 1.80 610 38.58 18 34/0.178 0.41 2.10 610 22.98 16 26/0.254 0.41 2.40 610 15.06 28 1/0.320 0.41 1.15 610 227.39 26 1/0.404 0.41 1.25 610 142.79 24 1/0.511 0.41 1.35 610 89.39 22 1/0.643 0.41 1.50 610 54.30 20 1/0.813 0.41 1.65 610 33.90 18 1/1.024 0.41 1.85 610 21.40
