• Model NO.：H05rr-F YZ
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.

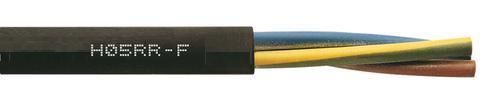

Rubber Sheathed Flexible Cable

Executive standardApplication

Voltage Rating:Working: 300/500V, Test: 2000V.Temperature Rating:-25°C to +60°CBending Radius: Flexing:15 x cable diameterStatic:6 x cable diameterCurrent Rating:H05RR-F Refer to IEE Regs Table 4HF3A&BConductor Stranding:To IEC 60228 Class 5 & VDE 0295 Class 5
  G = With Green/Yellow   X = Without Green/Yellow

CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
Rubber compound
Outer Sheath
Rubber compound

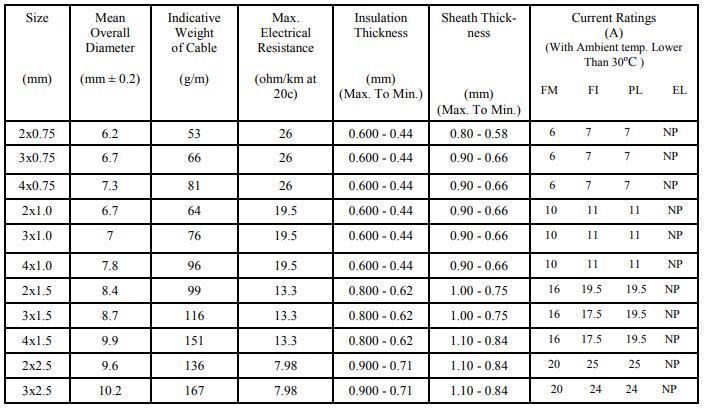

Type of the cables
