Multi Wire PVC Transparent Esy Copper Conductor Cable Without Screen
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：No Sheath
- Insulation Material：PVC
Base Info
- Model NO.：ESY cable
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CCC
- Brand：OEM
- Test Voltage：2000V
- Minimal Bending Radius：Approx.12X Cable D
- Transport Package：Wooden Drum
- Specification：1.5mm2 to 500mm2
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544492100
- Production Capacity：5000 Kilometer,Month
Description

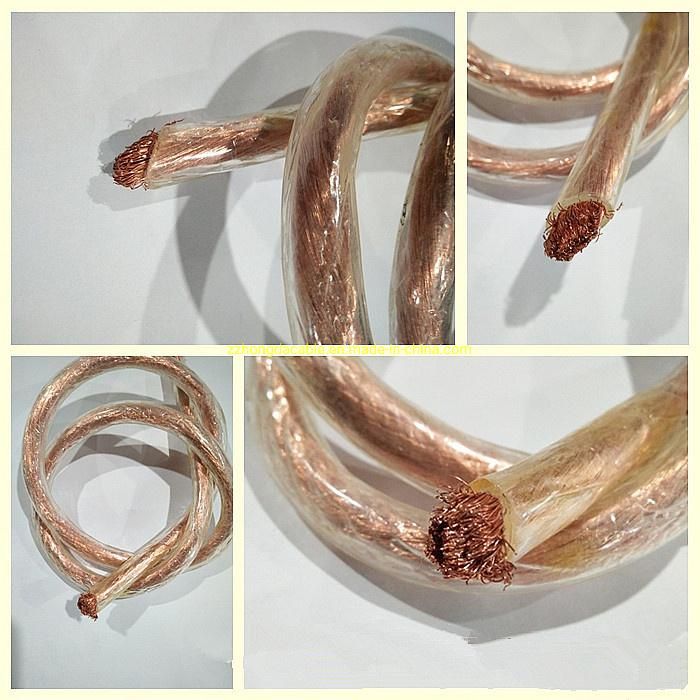

multi wire PVC transparent ESY copper conductor cable without screen
Application
These high flexible earth conductors are used for earthing of portable equipment and short-circuiting. These cables specialy perform a protective function in repair live working of high voltage power supply, in railway systems,faling current equipment,alternating current systems and in networks of transmission and distribution.Because of that these are designated as safety cables. These earthing cables offer special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature.The protective sheath over conductor assures the essential function for protection against the mechanical and chemical stresses
cable construction
1. EARTH CONDUCTOR ESUY
1). Bare copper, extra fine wire conductors,high flexible
2). Braiding of bare copper wires over thestranded copper conductor
3). PVC-jacket, transparent(glass clear)
1. Technical data
1). Earthing cable of braid wires over core strands in adapted to EN61138, DIN 46438
2). conductor resistance at 20°c according DIN VDE 0283 part 100
3). Temperature range: -5ºC to +70ºC
4). Test voltage: 2000 v
5). spark test (during winding)
16 mm2 to 35 mm2 - 5000 v
50 mm2 to 70 mm2 - 6000 v
95 mm2 to 240 mm2 - 8000 v
6). lnsulation resistance: min. 20 MOhm x km
7). Minimal bending radius: approx.12x cable
CABLE SPECIFICATIONS: Type 1, high flexible
2: EARTH CONDUCTOR ESY
1). Bare copper , fine wire conductorsCopper conductors of stranded wires
2). PVC-jacket, transparent(glass clear)
2. Technical data
- Earthing cable in adapted to DIN VDE0283 part 3 and EN 61138,DIN 46438,DIN 46440
forfurther technical datas from conductor resistance - see above 1
CABLE SPECIFICATIONS: Type 2, flexible
Packing shipping
If you have another question, pls feel free to contact VIVIAN YUAN below:
Application
These high flexible earth conductors are used for earthing of portable equipment and short-circuiting. These cables specialy perform a protective function in repair live working of high voltage power supply, in railway systems,faling current equipment,alternating current systems and in networks of transmission and distribution.Because of that these are designated as safety cables. These earthing cables offer special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature.The protective sheath over conductor assures the essential function for protection against the mechanical and chemical stresses
cable construction
1. EARTH CONDUCTOR ESUY
1). Bare copper, extra fine wire conductors,high flexible
2). Braiding of bare copper wires over thestranded copper conductor
3). PVC-jacket, transparent(glass clear)
1. Technical data1). Earthing cable of braid wires over core strands in adapted to EN61138, DIN 46438
2). conductor resistance at 20°c according DIN VDE 0283 part 100
3). Temperature range: -5ºC to +70ºC
4). Test voltage: 2000 v
5). spark test (during winding)
16 mm2 to 35 mm2 - 5000 v
50 mm2 to 70 mm2 - 6000 v
95 mm2 to 240 mm2 - 8000 v
6). lnsulation resistance: min. 20 MOhm x km
7). Minimal bending radius: approx.12x cable
CABLE SPECIFICATIONS: Type 1, high flexible
| Cross-sec | Cond. make-up | Outer Diameter | Cable weight |
| mm2 | nxwire D | mm | kg/km |
| 16 | 4200x0.07 | 9.1 | 230 |
| 25 | 3192x0.10 | 10.5 | 335 |
| 35 | 4480x0.10 | 12.5 | 475 |
| 50 | 6383x0.10 | 14.2 | 670 |
| 70 | 8918x0.10 | 16.8 | 905 |
| 95 | 12100x0.10 | 19.8 | 1220 |
| 120 | 15300x0.10 | 21.5 | 1505 |
| 150 | 19152x0.10 | 24.0 | 1940 |
| 185 | 23580x0.10 | 27.6 | 2390 |
| 240 | 30600x0.10 | 31.0 | 3090 |
2: EARTH CONDUCTOR ESY
1). Bare copper , fine wire conductorsCopper conductors of stranded wires
2). PVC-jacket, transparent(glass clear)
2. Technical data- Earthing cable in adapted to DIN VDE0283 part 3 and EN 61138,DIN 46438,DIN 46440
forfurther technical datas from conductor resistance - see above 1
CABLE SPECIFICATIONS: Type 2, flexible
| Cross-sec | Cond. make-up | Outer Diameter | Cable weight |
| mm2 | nxwire D | mm | kg/km |
| 16 | 525x0.20 | 8.5 | 185 |
| 25 | 798x0.20 | 10.0 | 270 |
| 35 | 1120x0.20 | 12.5 | 390 |
| 50 | 1617x0.20 | 14.0 | 575 |
| 70 | 2254x0.20 | 17.2 | 810 |
| 95 | 3087x0.20 | 19.5 | 1080 |
| 120 | 3822x0.20 | 22.8 | 1320 |
| 150 | 4802x0.20 | 25.4 | 1680 |
