• Model NO.：CuNi45
• Trademark：SENPHUS
• Origin：China
• HS Code：74094000
• Production Capacity：5ton,Day

Basic Info.

Model NO. CuNi45 Trademark SENPHUS Origin China HS Code 74094000 Production Capacity 5ton/Day

Product Description

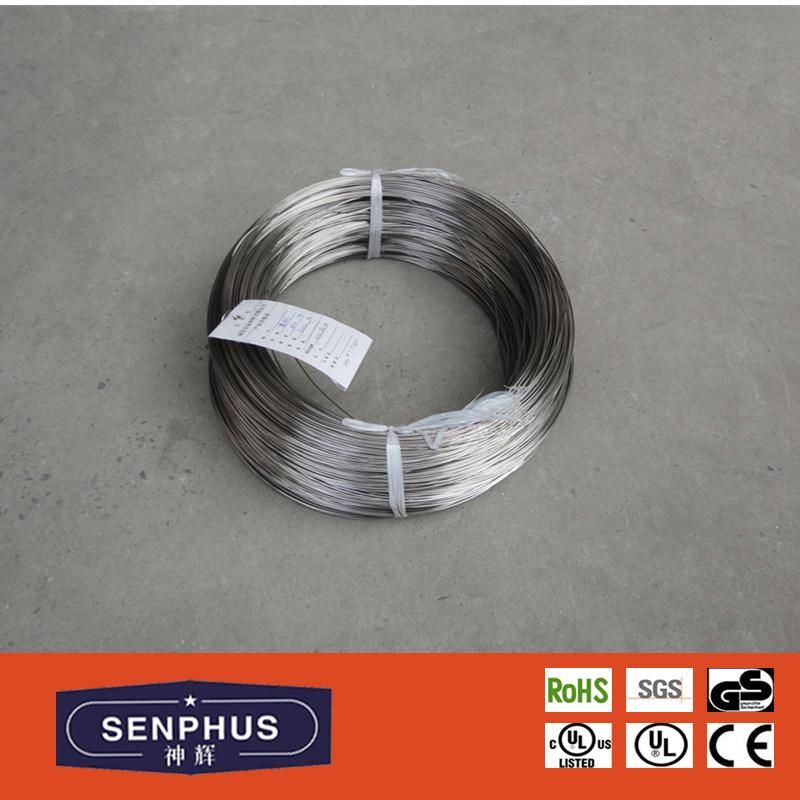

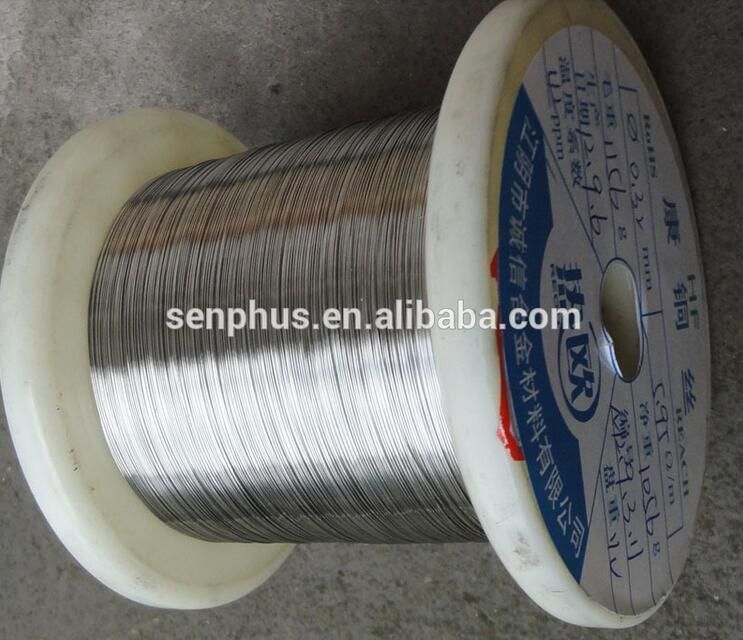

Constantan Alloy Wire:

Constantan is based on copper-nickel as the main component of the resistance alloy.

Product Details:
Grade: 6J40
Nature: With 40% nickel, 1.5% copper manganese alloy

Characteristics: With a lower temperature coefficient of resistance, the use of a wide temperature range (500 degrees Celsius) good machining properties, corrosion resistance and easy soldering.
Thermoelectric power of high copper, the exchange of instruments can be made of the variable resistors and strain resistive element.


Our products have the following features: Stable performance, high resistivity, high working temperature, allowable high surface load, small specific gravity and reasonable price.

Mainly uses in the electric car controller, the instruments and meters, the integrated circuit, the sample electric current, the resistor. And low pressure resistance and so on.

Delivery: Normally 10-15 days after receive deposit, according to the quantity

type	Electrical resistivity (20degreeΩ mm² /m)	temperature coefficient of resistance (10^6/degree)	Density g/mm²	Max. temperature (degree)	Melting point (degree)
CuNi1	0.03	< 1000	8.9	200	1085
CuNi2	0.05	< 1200	8.9	200	1090
CuNi6	0.10	< 600	8.9	220	1095
CuNi8	0.12	< 570	8.9	250	1097
CuNi10	0.15	< 500	8.9	250	1100
CuNi14	0.20	< 380	8.9	300	1115
CuNi19	0.25	< 250	8.9	300	1135
CuNi22	0.30	< 160	8.9	300	1150
CuNi30	0.35	< 100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	± 40	8.9	400	1280
CuNi44	0.50	< -6	8.9	400	1280
