Dead End for Stay Wire 12.5mm
Qingdao Powtech Electronics Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：PVC
- Insulation Material：PE
Base Info
- Model NO.：NL-95,G
- Material Shape：Round Wire
- Range of Application：Telecommunication
- Certification：ISO9001, CE, UL, CCC, RoHS
- Brand：Optelec
- Preformed Dead-Ends：Galvanized Steel Wire
- Suitable Stay Wire Dia.：12.5mm
- Length：1333mm
- Color Code：Orange
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
- HS Code：73269090
- Production Capacity：50000PCS,Month
Description
Basic Info.
Model NO. NL-95/G Material Shape Round Wire Range of Application Telecommunication Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Preformed Dead-Ends Galvanized Steel Wire Suitable Stay Wire Dia. 12.5mm Length 1333mm Color Code Orange Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269090 Production Capacity 50000PCS/MonthProduct Description

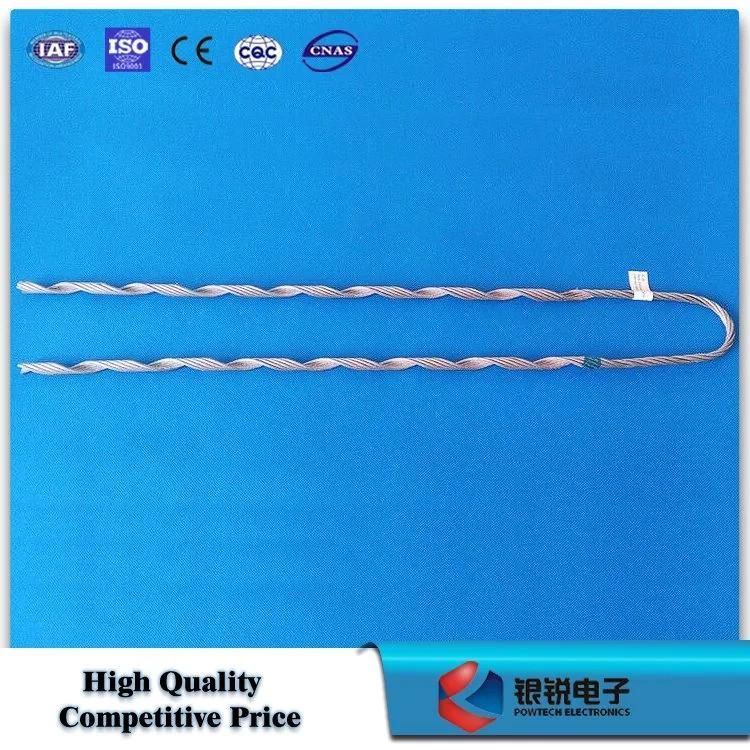

Preformed Dead End for stay wire 12.5mm

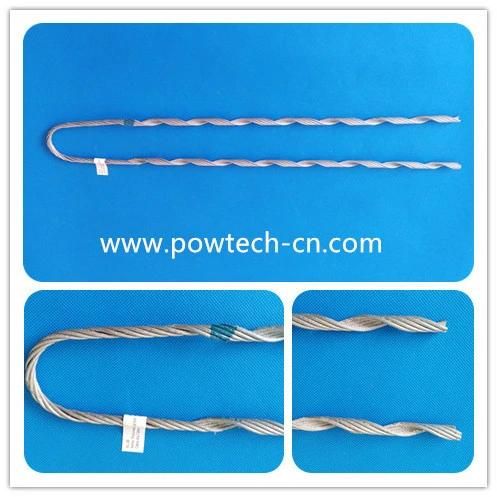

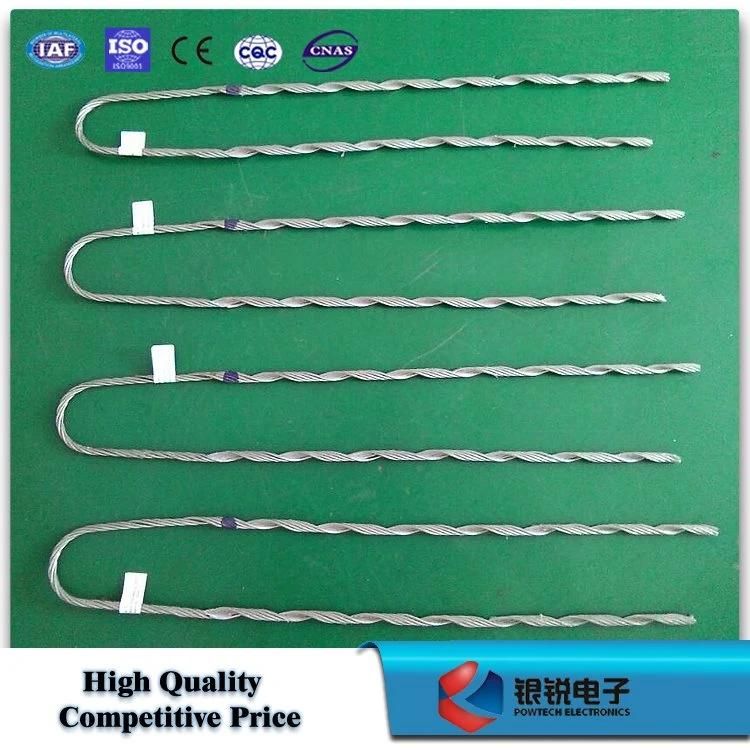

Detailed Images:
Preformed dead-ends are intended for use on single wood poles
Galvanized strand
Preformed dead-ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The preformed dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.
Preformed dead-ends are made of the same material as the strand to which they are applied. Preformed dead-ends should be used on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the strand. They should not be used as tools inlcuding come-alongs, pulling-in grips, etc.
Technical Specifications:
| Model | Guy Wire (mm) | Length (mm) | Guy Wire (mm2) | Weight (kg) | Color code |
| NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
| NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
| NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
| NL-70/G | 10.82~11.10 | 1016 | 70 | 0.8 | Green |
| NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
| NL-100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
| NL-120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |

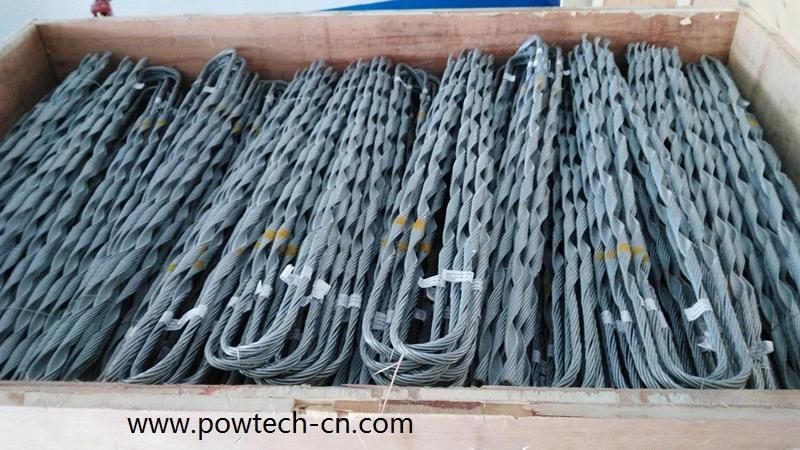

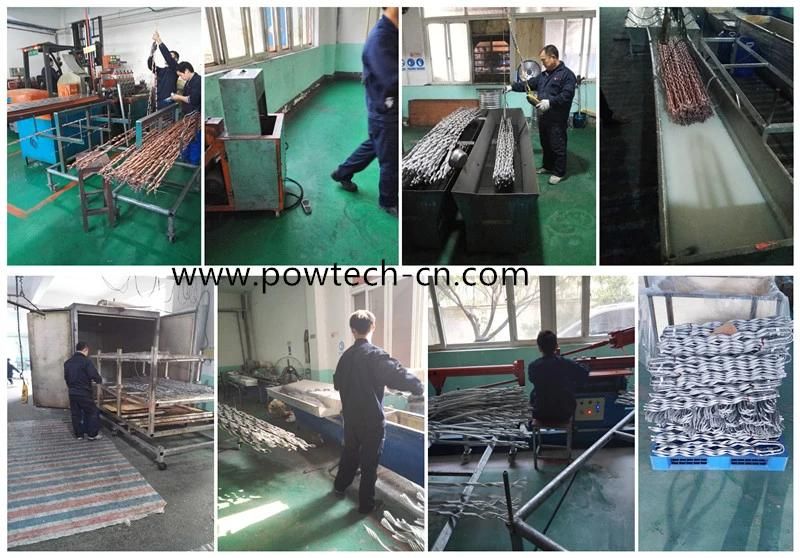

Warehouse:

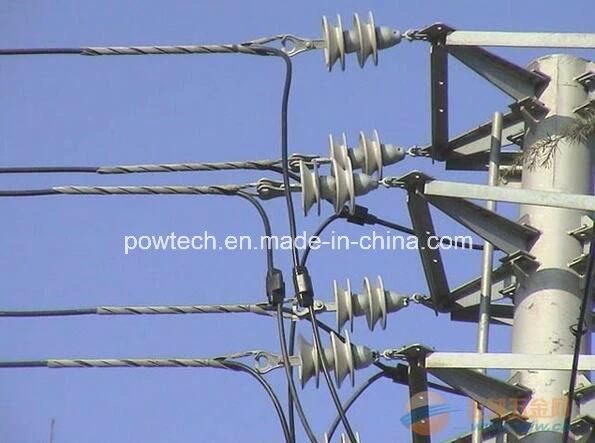

Installation Guide:
