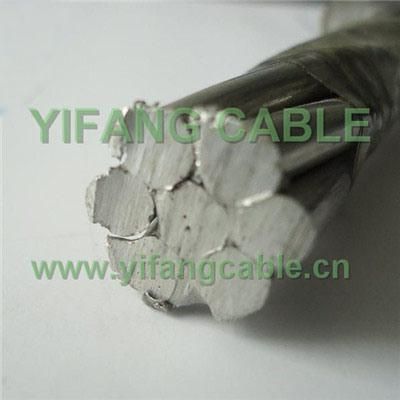

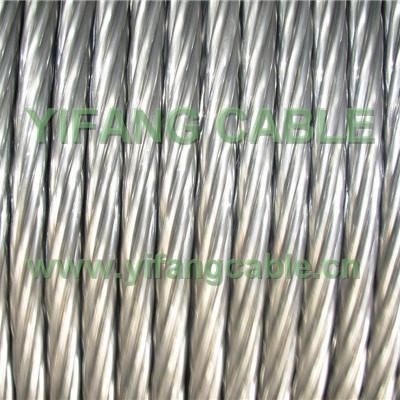

Bare Conductor Wire 54.6mm2 Aluminum Alloy Wire Almelec Cable Aster Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Overhead
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：AAAC 54.6mm2
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, CE, UL
  • Model：AAAC 54.6
  • Brand：Yifangcable
  • Size：54.6
  • Standard：NFC 34 215,En 50182
  • Material：Aluminum Alloy
  • Coutry：Senegal,Madagascar,Congo,Burkina Faso
  • Strands：7
  • Transport Package：Wooden Drum
  • Specification：1.1m Drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：7614900000
  • Production Capacity：1000km,Month

Description

CABLES ASTER 54,6MM²ITEMDESCRIPTIONUNITSPROPOSEOFFER BIDDER1manufacturer‐‐Zhengzhou yifang cable co.ltd1.1Type Model No‐‐ASTER 54.6mm21.2Country of origin‐‐China2Usage specifications‐‐  General   2.1nominal sectionmm²54,654,62.2NumberU772.3Nominal diameter Diameter of sonmm3,153,152.4External cablemm9,459,452.5MECHANICAL PROPERTIES AND ELECTRICAL   2.5.1Mass per unit length of the cableKg/Km1491492.5.2Linear density greased cableKg/Km‐N/A Breaking loaddaN17551755 Modulus of elasticityHbar600060002.5.3Resistance at 20 ° COhm/km0,6030,6032.5.4Permissible current summerA1901903industrial Standards NF C 11‐201 NF C 34 - 125 CEI 61 089 CEI 60 104 EN 1715 - 1NFC 34-125 IEC 610894installation OutsideOutside4.1packing    - reelm 5048±5%
