• Model NO.：ADSS-24B1-200M
• Certification：RoHS, UL, CE, ISO9001, VDE
• Brand：Optelec
• Sheath Material：PE Sheath
• Span：100m to 1000m
• Transport Package：Wooden Drum
• Specification：LEEEP1222
• Trademark：Powtech
• Origin：China
• HS Code：85389000
• Production Capacity：500km,Month

Basic Info.

Model NO. ADSS-24B1-200M Certification RoHS, UL, CE, ISO9001, VDE Brand Optelec Sheath Material PE Sheath Span 100m to 1000m Transport Package Wooden Drum Specification LEEEP1222 Trademark Powtech Origin China HS Code 85389000 Production Capacity 500km/Month

Product Description

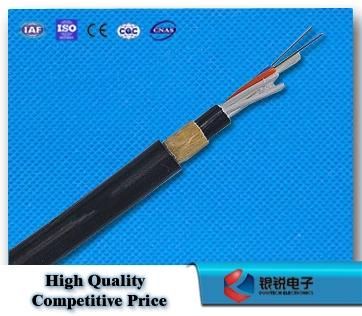

ADSS cable All Dielectric Self Support Aramid Yarn 200m Span Single Mode Optical Outdoor Fiber Optic Cable


Description:
ADSS cable is the short form for All-dielectric Self-supporting Optical Cable. ADSS fiber optic cable is loose tube stranded;

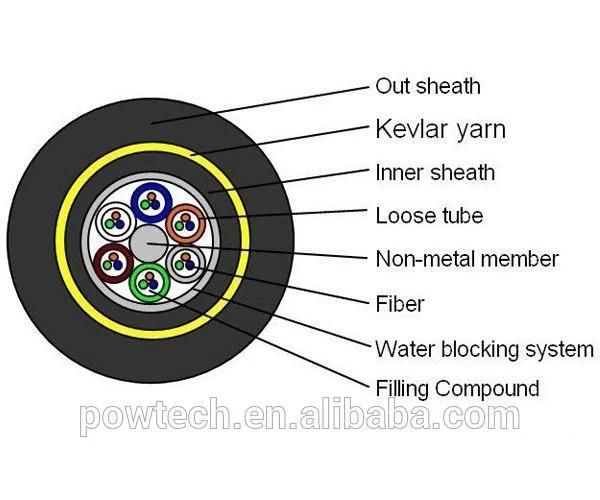

Structure:
1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath

Notes: The use of power corrosion resistant sheaht is depended on power of ADSS optical fiber cable
PE shealth is used when power is less than or equal to 12KV;
Power corrosion resistant sheath (AT sheath) is used when power is more than 12KV.

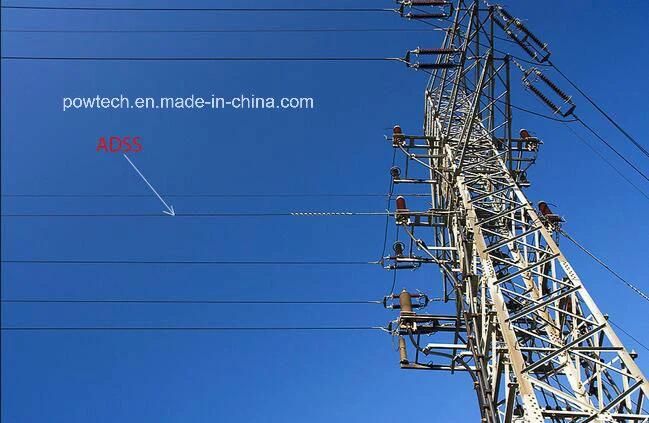

ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40C~ +65 degreeC

Features:
(1) Lightweight and small diameter reduces the impact of ice and wind, and their impact on tower and supporter.
(2) Large span length: Max span>1000 meters, and the optical cable can be installed without electrical outage.
(3) Project design added (sag-tension, field intensity calculation, hanging point selection, hardware fittings configuration).

Technical data sheet:

Designation	Diameter (mm)	RTS(N)	MAT(N)	EDS(N)	Kg/km
2~24 core
ADSS-AT(PE)xx -4KN	12.2	9698	3879	2425	121
ADSS-AT(PE)xx -6KN	12.5	14108	5643	3527	126
ADSS-AT(PE)xx -9KN	12.9	22928	9171	5732	135
ADSS-AT(PE)xx -12KN	13.3	30645	12258	7661	143
ADSS-AT(PE)xx -15KN	13.6	37260	14904	9315	149
ADSS-AT(PE)xx -18KN	13.9	44978	17996	11245	157
ADSS-AT(PE)xx -21KN	14.3	52695	21078	13174	164
ADSS-AT(PE)xx -24KN	14.6	60413	24165	15103	172
ADSS-AT(PE)xx -26KN	14.8	65925	26370	16481	177
26~36 core
ADSS-AT(PE)xx -4KN	12.8	9698	3879	2425	133
ADSS-AT(PE)xx -6KN	13.0	14108	5643	3527	138
ADSS-AT(PE)xx -9KN	13.4	22928	9171	5732	146
ADSS-AT(PE)xx -12KN	13.8	30645	12258	7661	154
ADSS-AT(PE)xx -15KN	14.1	37260	14904	9315	161
ADSS-AT(PE)xx -18KN	14.4	44978	17996	11245	168
ADSS-AT(PE)xx -21KN	14.7	52695	21078	13174	175
ADSS-AT(PE)xx -24KN	15.1	60413	24165	15103	183
ADSS-AT(PE)xx -26KN	15.3	65925	26370	16481	188

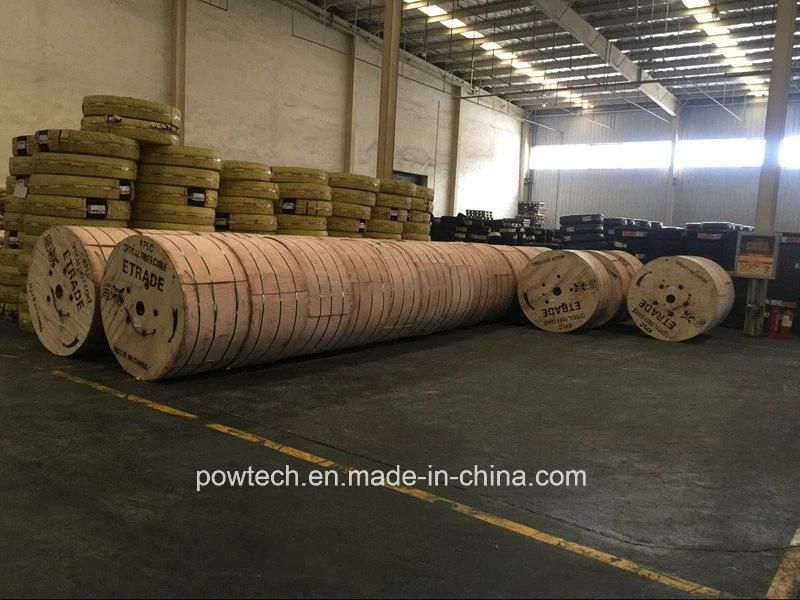

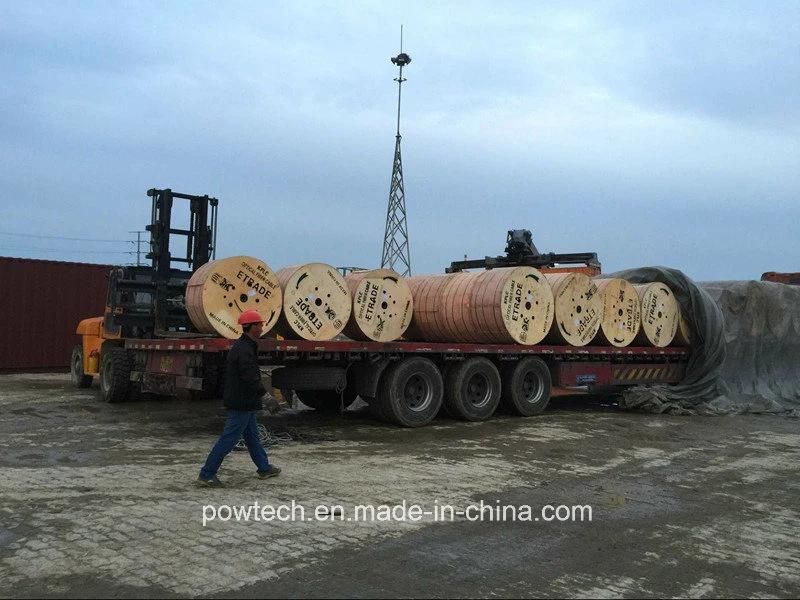

Package&shipment:


Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.

Why Choose Us?
1.Strict quality control system

2.Factory direct-sales,Lower purchasing cost

3.Professional,efficient after-sales service,Time and manpower saving

4.Experienced workers team,Advanced technicians,Sophisticated equipment

5.Small trial order/OEM product/artwork is acceptable

6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated


FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.

Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.

Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.

Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.

Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.

Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
