Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)

Qingdao Powtech Electronics Co., Ltd.
  • Application：Local Communication Cable, Fiber Optic Cable, Submarine Cable
  • Conductor Material：Aluminum
  • Cover Material：Al-Clad Steel
  • Type：Itu G652D
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：OPGW
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL, VDE
  • Model：Opgw
  • Brand：Optelec
  • Name：Overhead Ground Optical Cable
  • Fiber Type：Single Mode G652d
  • Fiber Count：24
  • Loose Tube：Stainless Steel Tube
  • Transport Package：Iron Wooden Drum
  • Specification：IEEE1138
  • Trademark：OPTELEC
  • Origin：China
  • HS Code：8547
  • Production Capacity：100km,Month

Description

Basic Info.

Model NO. OPGW Wire Core Material Steel Certification CE, ISO, RoHS, CCC, UL, VDE Model Opgw Brand Optelec Name Overhead Ground Optical Cable Fiber Type Single Mode G652d Fiber Count 24 Loose Tube Stainless Steel Tube Transport Package Iron Wooden Drum Specification IEEE1138 Trademark OPTELEC Origin China HS Code 8547 Production Capacity 100km/Month

Product Description

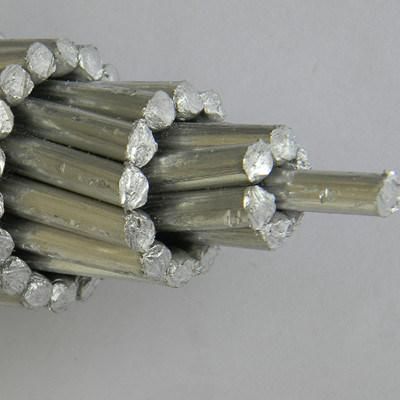

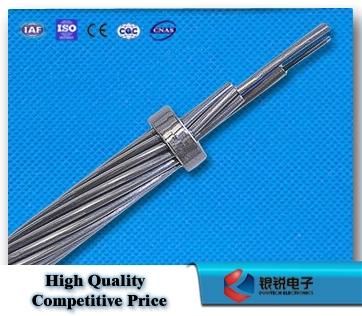

OPGW Cable
Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)
Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)
Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)
OPGW cable features:
1-Laser welded stainless steel tubes provide mechanical and thermal protection for optical fibers.
2-Light weight and small diameter
3-Good resistance to moisture and hydrogen ingress
4-Fiber counts up to 96fibers

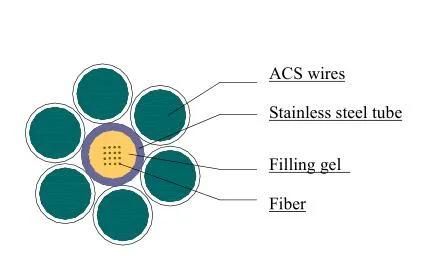

Drawings:
Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)
OPGW caleb standard compliance
IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652, ITU-T G. 655, IEC60794-1, DL/T 788-2001, YD/T 980-2002

OPGW cable technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.

OPGW cable Mechical characteristics:
Over all diameter (mm): 9~12mm
Fiber count: 12~96fibers
Fiber optical tube: Laser welded stainless steel
Armore type: Aluminum-clad wire
Unit weight (kg/km): 250~500kg/km
Short circuit current capacity: Up to 50kA2. T
Rated tensile strength (RTS): Up to 90kN

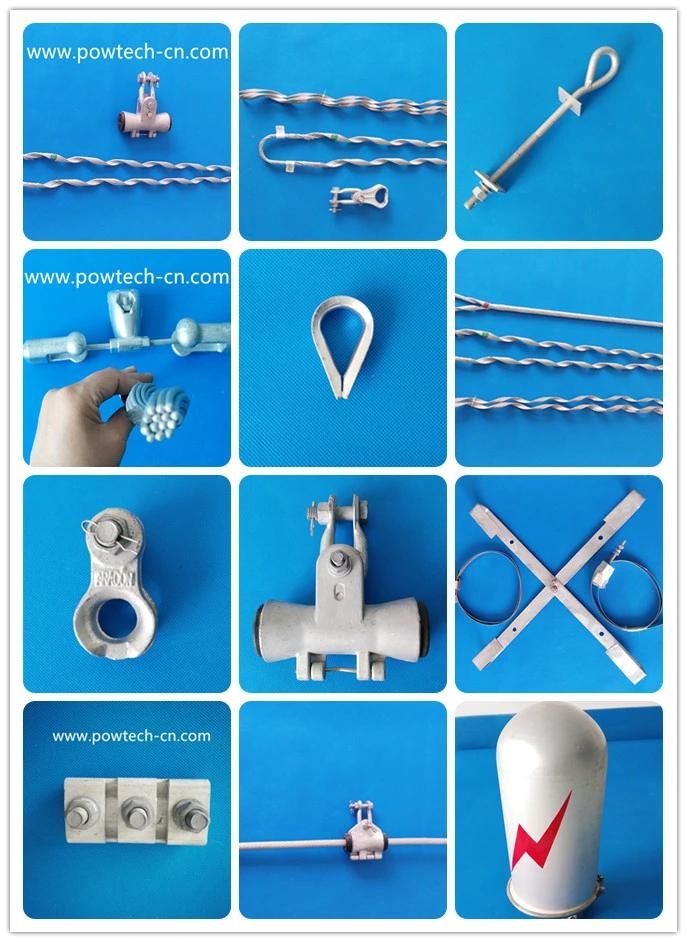

Related Products:
Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)

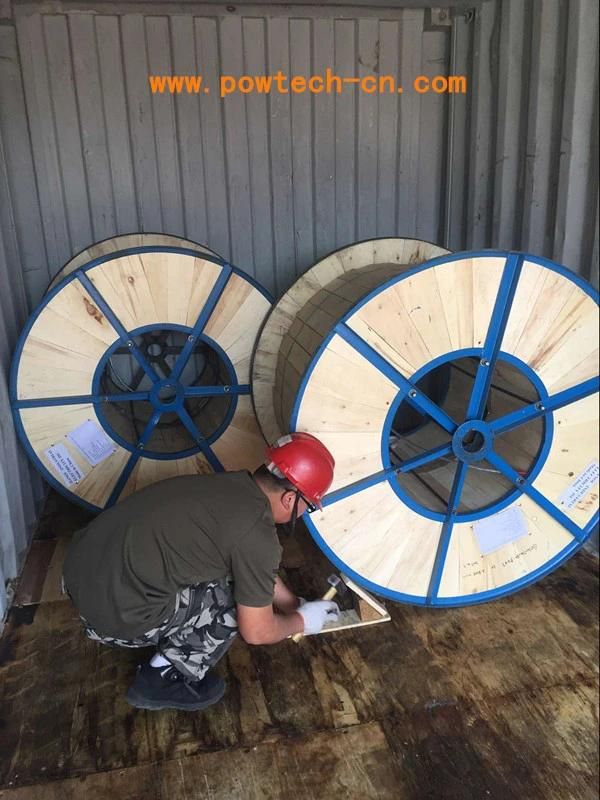

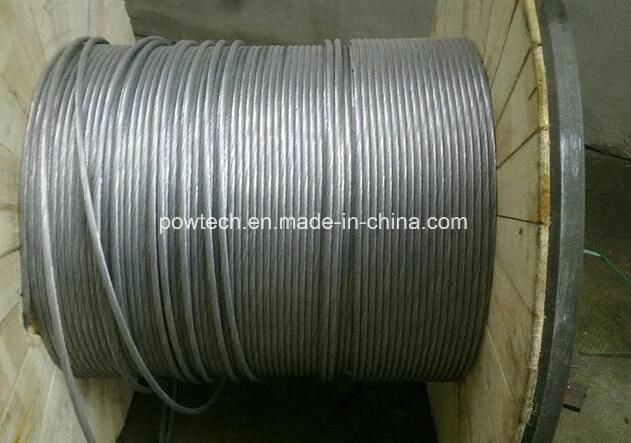

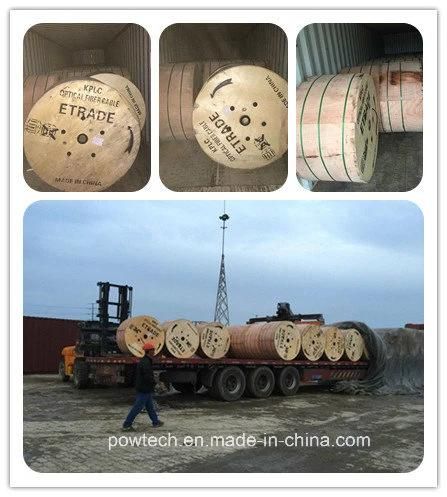

Package&shipment:
Optical Fiber Composite Overhead Ground Wire (Model: OPGW24)
