Hf250-LSZH, 50 Ohm Semi-Flexible Coaxial Cable, LSZH Jacket
Jiangsu Hengxin Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material：Silver Plated Copper
- Cover Material：FEP
- Type：PTFE
- Material Shape：Flat Wire
- Conductor Type：Tin Soaked Tpc Wire Braiding
Base Info
- Model NO.：HF250
- Certification：ISO, RoHS
- Model：FEP
- Brand：Hengxin
- Transport Package：Pallet, Cartoon
- Specification：PALLET AND CARTOON
- Trademark：HENGXIN
- Origin：Jiangsu Province, China
- HS Code：85442000
- Production Capacity：3000 Km Per Day
Description
Construction MaterialsProduct Type HF250-LSZH HF250-FEP Product Code 2.7.1.25.101.11 2.7.1.25.203.11 Jacket Colour Bule Colour Code PANTONE 2935U PANTONE 3005U Inner Conductor Material SPC(Silver Plated Copper) Dielectric Material PTFE Outer Conductor Material Tin Soaked TPC Wire Braiding Jacket Material LSZH FEP Dimensions Inner Conductor 1.64±0.02 mm Dielectric 5.27±0.15 mm Shields 6.20±0.15 mm Jacket (LSZH/FEP) 7.20±0.15 /7.00±0.15 mm Electrical Property Capacitance 95 pF/m Impedance 50±1 Ω Velocity 70.8% Phase (425mm /2GHz) 1440±4° Screen Efficiency ≥100 dB Delay 4.7 ns/m Cut-off Frequency 18 GHz Withstanding Voltage(AC) 3.5 KV Peak Power Rating 10.2 KW VSWR 0~4GHz ≤1.10 4~6GHz ≤1.25 3rd Passive Intermodulation 900MHz ≤-120 dBm 1800MHz ≤-120 dBm Attenuation Frequency(MHz) Attenuation(dB/100 m) Frequency(MHz) Attenuation(dB/100 m) 100 7.45 2000 36.60 200 10.65 2200 38.61 450 16.30 2400 40.54 800 22.16 3000 46.00 900 23.61 4000 54.26 1000 25.00 5000 61.78 1800 34.52 6000 68.79 *Maximum attenuation value shall be 105% of the nominal attenuation value. Environmental and Mechanical Property Operating Temperature Range -40ºC~+85ºC/LSZH Jacket -65ºC~+180ºC/FEP Jacket Bending Radius Single 30 mm Repeated 120 mm Standard Conditions: For Attenuation:temperature 20ºC(68ºF),sea level test condition. Marking requirements:HENGXIN TECHNOLOGY HF250-LSZH/FEP XXXXXXXXX(series NO.) 0000m Capacity Per Spool:100~200m; Carton Packing:370*370*245mm

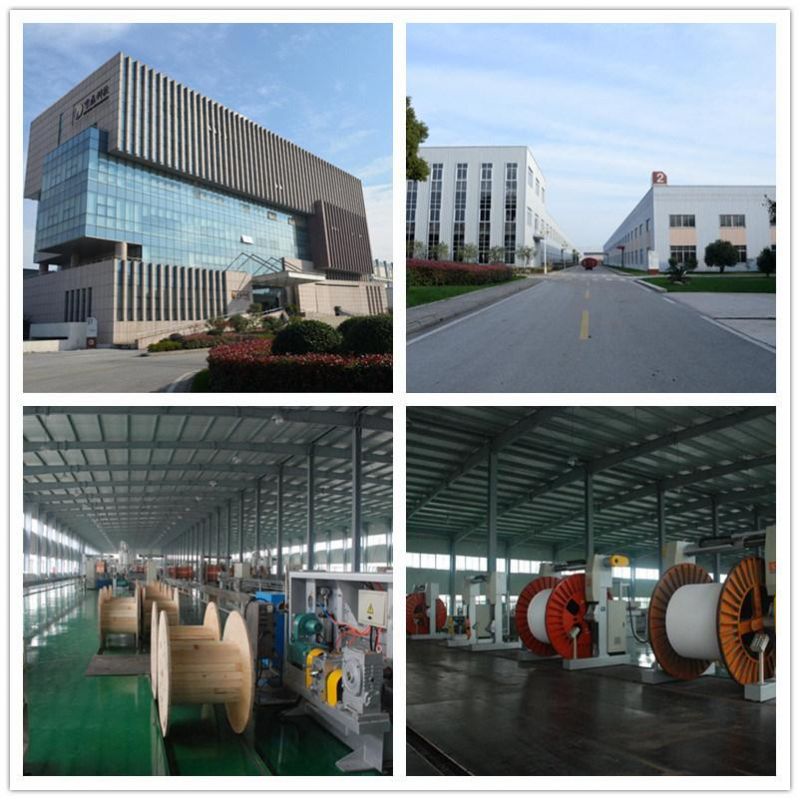

OUR COMPANY/HENGXIN TECHNOLOGY
Hengxin was listed on the Main Board of the Singapore Exchange Securities Trading Limited (SGX-ST) on 11 May 2006, and was primarily dual listed on the Main Board of The Stock Exchange of Hong Kong Limited (SEHK) on 23 December 2010. Founded in 1996 with its manufacturing base in Yixing City alongside Taihu Lake, Jiangsu Province, China, it is involved in the research, manufacture and sale of antennas, RF Cables and accessories for wireless communication applications, accessories consisting of connector, jumper cable, arrester, coupler and splitter, etc. Quality and safety are handled with the highest regard by Hengxin. Since 1996, it has been certified with ISO9001 Quality Management System Certification, ISO14001 Environment Management System, OHSAS 18001 Occupational Health and Safety Management Certification, and has also been appraised as a Hi-Tech Enterprise of China National Torch Planning , obtained 29 utility type patents from the Property Rights Bureau of National Information.
