Hf380-LSZH, 50 Ohm Semi-Flexible Coaxial Cable, LSZH Jacket
Jiangsu Hengxin Technology Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, RF Cable
- Conductor Material：Silver Plated Copper
- Cover Material：FEP
- Type：PTFE
- Material Shape：Flat Wire
- Conductor Type：Tin Soaked Tpc Wire Braiding
Base Info
- Model NO.：HF380
- Certification：ISO, RoHS
- Model：FEP
- Brand：Hengxin
- Transport Package：Pallet, Cartoon
- Specification：PALLET AND CARTOON
- Trademark：HENGXIN
- Origin：Jiangsu Province, China
- HS Code：85442000
- Production Capacity：3000 Km Per Day
Description
Construction MaterialsProduct Type HF380-LSZH HF380-FEP Product Code 2.7.1.38.101.11 2.7.1.38.203.11 Jacket Colour Bule Colour Code PANTONE 2935U PANTONE 3005U Inner Conductor Material SPC(Silver Plated Copper) Dielectric Material PTFE Outer Conductor Material Tin Soaked TPC Wire Braiding Jacket Material LSZH FEP Dimensions Inner Conductor 1.20±0.02 mm Dielectric 3.80±0.07 mm Shields 4.50±0.12 mm Jacket (LSZH/FEP) 5.50±0.15 /5.15±0.15 mm Electrical Property Capacitance 96 pF/m Impedance 50±1 Ω Velocity 70.8% Phase (425mm /2GHz) 1440±4° Screen Efficiency ≥100 dB Delay 4.7 ns/m Cut-off Frequency 30 GHz Withstanding Voltage(AC) 2.5 KV Peak Power Rating 5.3 KW VSWR 0~4GHz ≤1.10 4~6GHz ≤1.20 3rd Passive Intermodulation 900MHz ≤-120 dBm 1800MHz ≤-120 dBm Attenuation Frequency(MHz) Attenuation(dB/100 m) Frequency(MHz) Attenuation(dB/100 m) 100 9.10 2000 46.00 200 13.07 2200 48.59 450 20.12 2400 51.10 800 27.51 3000 58.22 900 29.35 4000 69.05 1000 31.11 5000 79.00 1800 43.31 6000 88.32 *Maximum attenuation value shall be 105% of the nominal attenuation value. Environmental and Mechanical Property Operating Temperature Range -40ºC~+85ºC/LSZH Jacket -65ºC~+180ºC/FEP Jacket Bending Radius Single 20 mm Repeated 80 mm Standard Conditions: For Attenuation:temperature 20ºC(68ºF),sea level test condition. Marking requirements:HENGXIN TECHNOLOGY HF380-LSZH/FEP XXXXXXXXX(series NO.) 0000m Capacity Per Spool:100~250m; Carton Packing:370*370*245mm

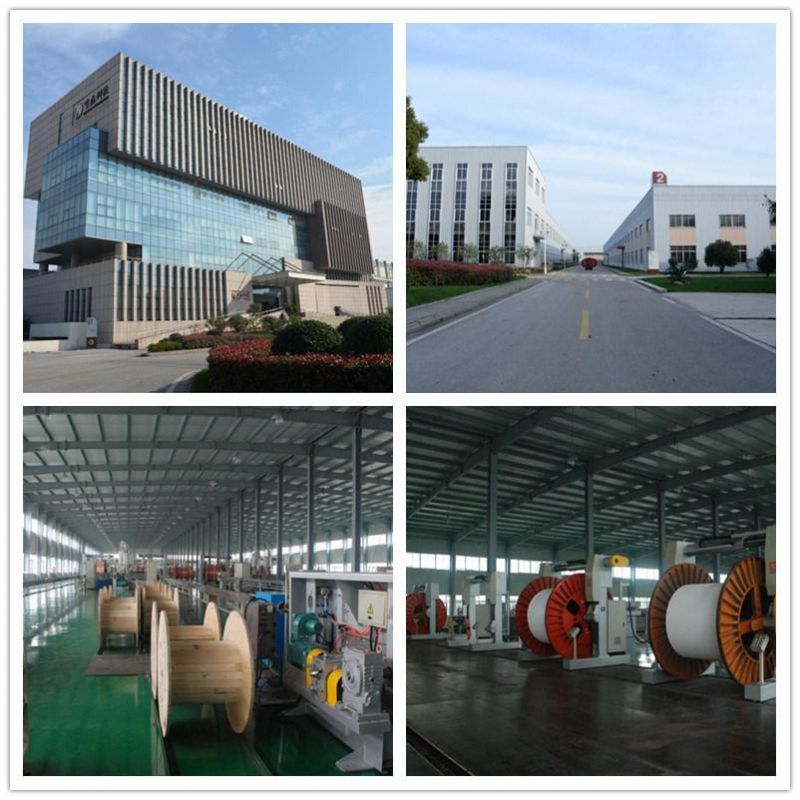

OUR COMPANY/HENGXIN TECHNOLOGY
Hengxin was listed on the Main Board of the Singapore Exchange Securities Trading Limited (SGX-ST) on 11 May 2006, and was primarily dual listed on the Main Board of The Stock Exchange of Hong Kong Limited (SEHK) on 23 December 2010. Founded in 1996 with its manufacturing base in Yixing City alongside Taihu Lake, Jiangsu Province, China, it is involved in the research, manufacture and sale of antennas, RF Cables and accessories for wireless communication applications, accessories consisting of connector, jumper cable, arrester, coupler and splitter, etc. Quality and safety are handled with the highest regard by Hengxin. Since 1996, it has been certified with ISO9001 Quality Management System Certification, ISO14001 Environment Management System, OHSAS 18001 Occupational Health and Safety Management Certification, and has also been appraised as a Hi-Tech Enterprise of China National Torch Planning , obtained 29 utility type patents from the Property Rights Bureau of National Information.
OUR EXHIBITIONS
OUR CERTIFICATES
FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available. Q: May I visit your factory?
A: Sure, welcome any time with prior notice. Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us. Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity. Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you. Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.
