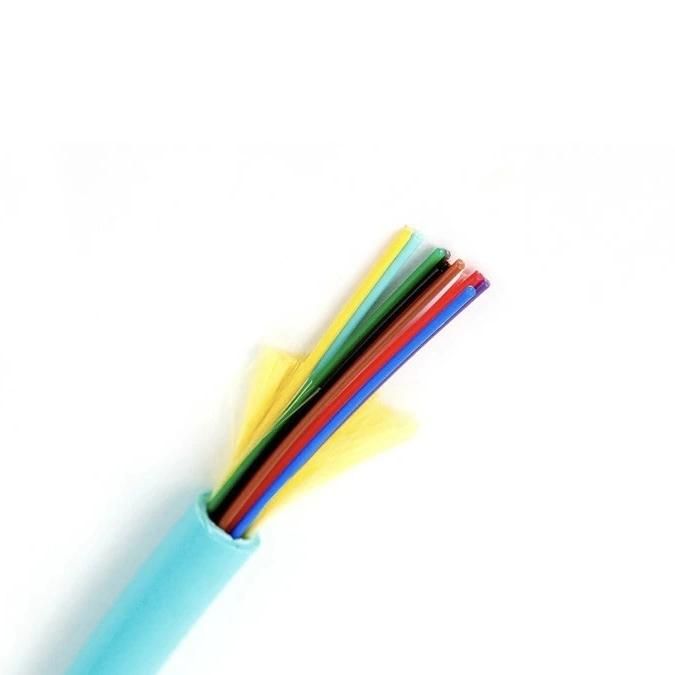

GJFJV Indoor 1/2/4/6/8/10 Core Tight Buffer Sc / LC / St / FC Fiber Optical Jumper Cable

Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.
  • Application：Communication
  • Type：Multi-mode Fiber
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N
  • Core：Multicore

Base Info

  • Model NO.：GJFJV
  • Certification：RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand：OEM
  • Sheath Material：PVC
  • Transport Package：Wooden Box
  • Specification：2km,roll
  • Trademark：Can be customized
  • Origin：Zhejiang, China
  • HS Code：8544700000
  • Production Capacity：30, 000, 000km,Year

Description

Bandwidth
(Class A)@850  ≥500MHZ·km≥500MHZ·km@1300  ≥1000MHZ·km≥600MHZ·kmnumerical aperture   0.200±0.015NA0.275±0.015NAOptical fiber cut off wavelength ≤1260nm≤1480nm

Cable Code
Cable TypeFiber CountCable Diameter
     mm		Cable Weight
Kg/km		Tensile Strength
 Long/Short Term N		Crush Resistance
Long/Short Term
N/100m		Bending Radius
Static/Dynamic
 mm
GYFTY2-605.0201100/550150/50030D/15D
GYFTY62-725.5251100/550150/50030D/15D
GYFTY74-966.7321700/850150/50030D/15D
Storage and use temperature:-20ºC+70ºC
