• Model NO.：NYM-J NYM-O
• Range of Application：Industrial and Home Applications
• Certification：CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.

Application and Description

NYM is suitable for industrial and home applications. It is designed for dry, moist and wet open areas as well as under plaster, walling and concrete. However, it is not recommended to lay the cable into the compacted concrete. Outer application is permitted only in the case that cable is not exposed to direct sunlights.

Standard and Approval

DIN VDE 0250, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

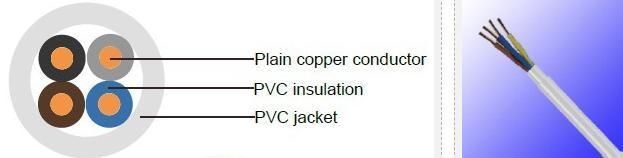

Cable Construction

- Solid or stranded, plain copper conductor
- to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2
- PVC insulation TI1 to DIN VDE 0281 part 1
- Color coded to DIN VDE 0293-308
- Conductors stranded in layer
- High flexible PVC outer jacket type TM1, according to DIN VDE 0281 part 1


Technical Characteristics

- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Minimum bending radius: 4 x Ø
- Flexing temperature: +5º C to +70º C
- Fixed installation temperature: - 40º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: >20 MΩ x km


Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²NOMINAL THICKNESS OF INSULATION MMNOMINAL THICKNESS OF SHEATH MMNOMINAL OVERALL DIAMETER MMNOMINAL COPPER WEIGHT KG/KMNOMINAL WEIGHT KG/KM16(solid)1X1.50.61.45.414.44016(solid)2 X1.50.61.48.72917016(solid)3 X1.50.61.49.14313516(solid)4 X1.50.61.49.85816016(solid)5 X1.50.61.410.37219016(solid)7 X1.50.61.411.510123516(solid)10 X1.50.61.413.814433016(solid)12 X1.50.61.414.417340514(solid)1 X2.50.71.46247014(solid)3 X2.50.71.410.47219014(solid)4 X2.50.71.411.39623014(solid)5 X2.50.71.41212027014(solid)7 X2.50.71.613.216834212(solid)1X40.81.66.6388012(solid)3 X40.81.61211525812(solid)4 X40.81.61315433012(solid)5 X40.81.614.519241010(solid)1X60.81.67.25810510(solid)3 X60.81.61317332010(solid)4 X60.81.615.123046010(solid)5 X60.81.616.12885408(solid)1X101.01.68.4961558(solid)4 X101.01.617.63846808(solid)5 X101.01.619.24808506(7/14)1X161.21.89.91542306(7/14)4 X161.21.821.361410486(7/14)5 X161.21.823.476812804(7/12)1x251.42.0122403254(7/12)4X251.42.025.896016494(7/12)5 X251.42.028.7120019702(7/10)4X351.42.028.513442000
