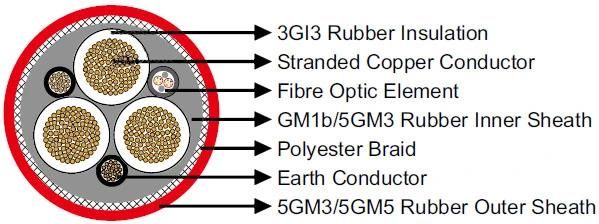

(N) Tscgewoeu Medium Voltage Reeling Cable with Fiber Optics Mining Cable for Connection of Large Mobile Equipment

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Underground
  • Conductor Material：Tinner Copper
  • Sheath Material：3G13
  • Insulation Material：5GM3,5GM5

Base Info

  • Model NO.：(N)TSCGEWOEU
  • Material Shape：Round Wire
  • Range of Application：for Connection of Large Mobile Equipment
  • Certification：CE, CCC, RoHS, VDE
  • Brand：Fengda
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：100000,Day

Description

Basic Info.

Model NO. (N)TSCGEWOEU Material Shape Round Wire Range of Application for Connection of Large Mobile Equipment Certification CE, CCC, RoHS, VDE Brand Fengda Color Black Red Yellow, According to Voltage Level Whether It Is Environmentally Friendly Yes Whether Quality Inspection Provide Inspection Certificate Standard Customized According to Specified National Standar OEM/ODM Accepted Core Single Core and Multicore Transport Package Standard Export Packaging Specification International General Specifications Trademark Fengda Origin Tianjin, China(Mainland) HS Code 8544492100 Production Capacity 100000/Day

Product Description

(N) Tscgewoeu Medium Voltage Reeling Cable with Fiber Optics Mining Cable for Connection of Large Mobile Equipment



Applications

These cables are used for connection of large mobile equipment such as excavators and spreaders, gantry cranes, etc., under very high mechanical loads, suitable for motorised reeling on monospiral or level-wind reelers.

Standards

Based on VDE 0250 Part 813

Dimensions and Weight

3.6/6KV

NUMBER OF CORES×NOMINAL CROSS SECTIONMINIMUM OVERALL DIAMETERMAXIMUM OVERALL DIAMETERNOMINAL WEIGHT
NO. ×MM^2MMMMKG/KM
3×25+2×25/2+12×LWL39.042.02410
3×35+2×25/2+12×LWL42.045.02995
3×50+2×25/2+12×LWL45.048.03645
3×70+2×35/2+12×LWL50.054.04760
3×95+2×50/2+12×LWL54.058.05580
3×120+2×70/2+12×LWL58.062.06690
3×150+2×70/2+12×LWL63.067.07990
3×185+2×95/2+12×LWL67.072.09330

6/10 KV

NUMBER OF CORES×NOMINAL CROSS SECTIONMINIMUM OVERALL DIAMETERMAXIMUM OVERALL DIAMETERNOMINAL WEIGHT
NO. ×MM^2MMMMKG/KM
3×25+2×25/2+12×LWL40.043.02450
3×35+2×25/2+12×LWL43.046.03035
3×50+2×25/2+12×LWL46.049.03690
3×70+2×35/2+12×LWL51.055.04800
3×95+2×50/2+12×LWL55.059.05620
3×120+2×70/2+12×LWL59.063.06740
3×150+2×70/2+12×LWL64.068.08040
3×185+2×95/2+12×LWL68.072.09380

12/20 KV

NUMBER OF CORES×NOMINAL CROSS SECTIONMINIMUM OVERALL DIAMETERMAXIMUM OVERALL DIAMETERNOMINAL WEIGHT
NO. ×MM^2MMMMKG/KM
3×25+2×25/2+12×LWL46.049.03050
3×35+2×25/2+12×LWL49.052.03490
3×50+2×25/2+12×LWL53.057.04340
3×70+2×35/2+12×LWL57.061.05320
3×95+2×50/2+12×LWL61.065.06360
3×120+2×70/2+12×LWL67.071.07810
3×150+2×70/2+12×LWL70.074.08900
3×185+2×95/2+12×LWL76.080.010700

18/30 KV

NUMBER OF CORES×NOMINAL CROSS SECTIONMINIMUM OVERALL DIAMETERMAXIMUM OVERALL DIAMETERNOMINAL WEIGHT
NO. ×MM^2MMMMKG/KM
3×25+2×25/2+12×LWL55.059.03960
3×35+2×25/2+12×LWL58.062.04550
3×50+2×25/2+12×LWL63.067.05510
3×70+2×35/2+12×LWL66.070.06560
3×95+2×50/2+12×LWL71.075.07850
3×120+2×70/2+12×LWL76.080.010690
3×185+2×95/2+12×LWL86.090.012550
