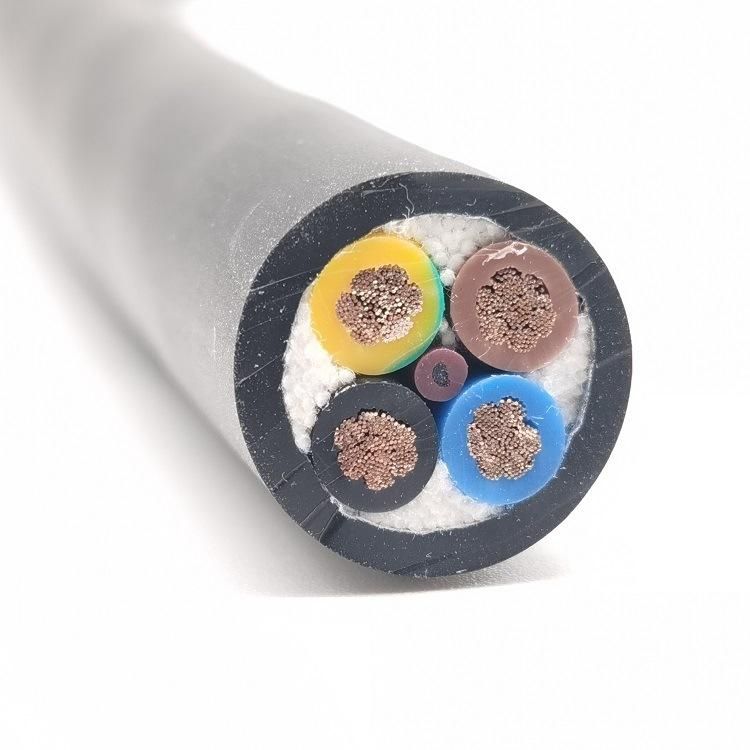

TUV Certified High Flexible Fg16om16 Cable Multicore 0.6/1kv

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, RoHS

Base Info

  • Model NO.：FG16OM16 Cable
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemTUV CE Certified FG16OM16 CableConductorFlexible annealed plain copperInsulationHEPR, hard ethylene-propylene-rubberOuter SheathLSZH compoundNominal Voltage600/1000VTest voltage4000VTemperature RangeFlexing Temperature: 0°C to +90°C
Static Temperature: -15°C to +70°CMinimum bending radius4 x ØColorOptionalCertificationTUV CECharacteristicHigh Flexible
Flame Retardant
Fire Resistant
No-toxic
Halogen-Free
No Smoke
LSZH
Reduced Emission of Corrosive GasesApplicationMulticore flexible power cable for fixed installation, G16 rubber insulated, LS0H thermoplastic sheathed. Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.
For installation with fire risk area and where high presence of people is foreseen. For internal installations, also in wet locations and for external installations; for installation in surface mounted or on metallic structures; direct laying in earth permitted.
FG16OM16 cables are suitable for general applications in construction work subject to fire reaction requirements; for bundle installations with high fire risks, having fire reaction
