• Model NO.：JBS
• Cable Entrance：2-in,2-out
• Max. Fiber Capacity：144fibers
• Transport Package：Carton + Pallet
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：85477000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. JBS Cable Entrance 2-in/2-out Max. Fiber Capacity 144fibers Transport Package Carton + Pallet Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 85477000 Production Capacity 5000PCS/Month

Product Description

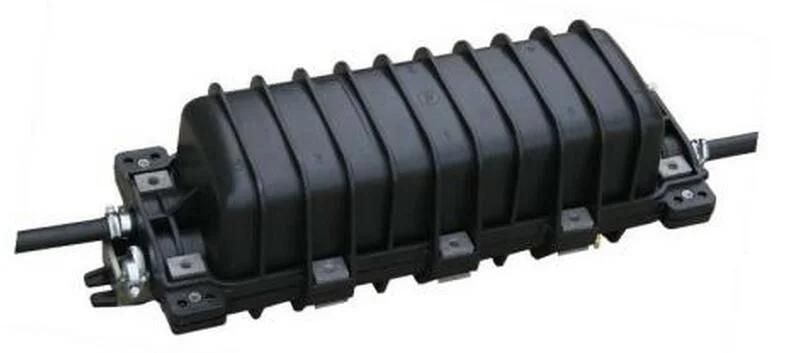

Plastic Fitting Horizontal Type Joint Box for Optic Fiber




Features:
Type: 2 Inlet / 2Outlet
External dimensions: 51x22cm
Max. Capacity: 144 cores
Weight: 3kgs
Description:
Innovative design is an erect and horizontal type with one hinge in one side and open in another side. Our fiber splice enclosure is the most reliable fiber splice closure with the simplest installation in the world. The fiber splice closure is suitable for protecting fiber cable splices in straight through and branching applications.

Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by
Numerical control equipment; Therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet
Radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during
Pulling, compressing, and impacting, bending, tensioning, axial tensioning.

Our fiber splice enclosure ensures long-term reliability and usage under ambient temperature from -40degC to +85degC

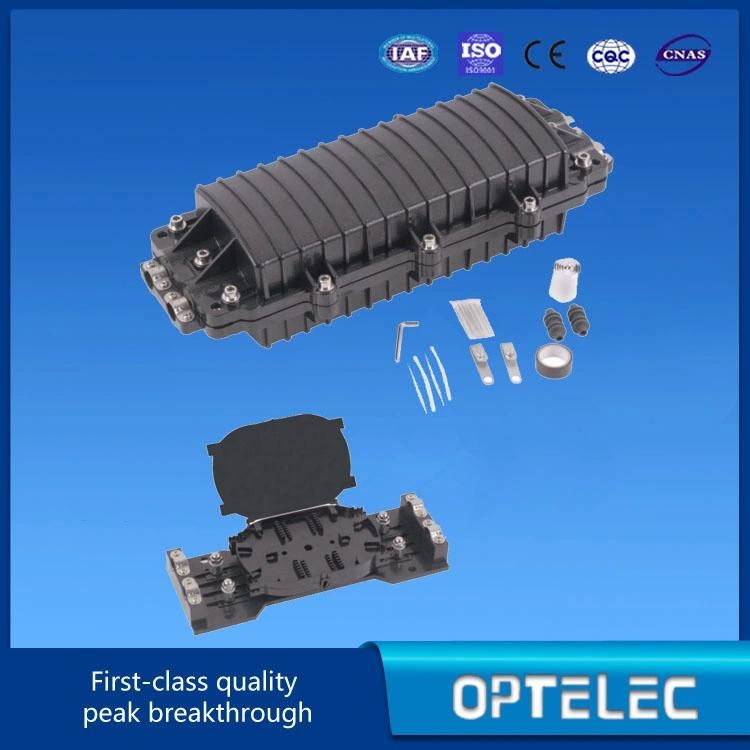

Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, metal hook, seal fittings, numeral bar, retaining ring

Purpose: Aerial, direct-burying, wall-mounting, Pipeline laying way.

Material: ABS or PC

Atmospheric pressure: 70~106KPa

Insulation resistance>= 2X104Mohm

Span-life: 30 years.
Technical Data:


Model	Max capacity	Entrance port	Cable diameter(mm)	Net weight (kg)	Sizes (L*W*H,mm)	Material
JBS0202H	144	2in/2out	Φ7-φ25	1.6	460*185*110	ABS or PC
JBS0303H	144	2in/2out	Φ7-φ25	1.7	460*185*110	ABS or PC
