• Model NO.：BFD
• Material Shape：Round Wire
• Range of Application：Fly Diverter for Birds
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Powtech
• Material：PVC
• Color：Yellow
• Length(mm)：400
• Transport Package：Wooden Case
• Specification：CE, SGS, ISO9001
• Trademark：Powtech
• Origin：China
• HS Code：85447000
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. BFD Material Shape Round Wire Range of Application Fly Diverter for Birds Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Powtech Material PVC Color Yellow Length(mm) 400 Transport Package Wooden Case Specification CE, SGS, ISO9001 Trademark Powtech Origin China HS Code 85447000 Production Capacity 100000PCS/Month

Product Description

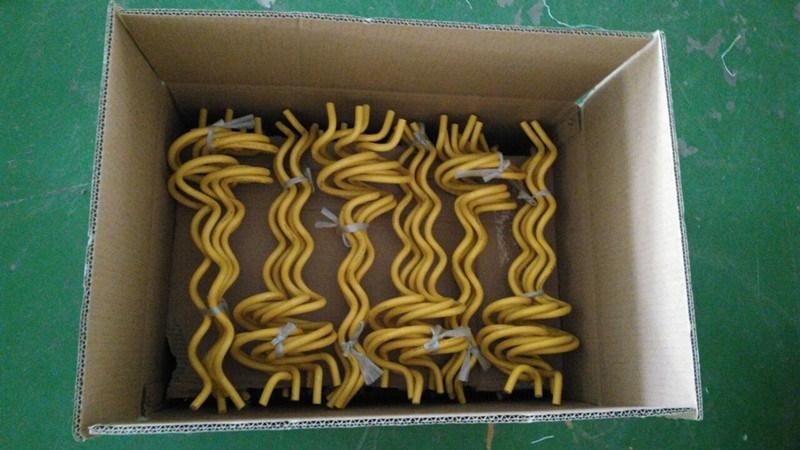

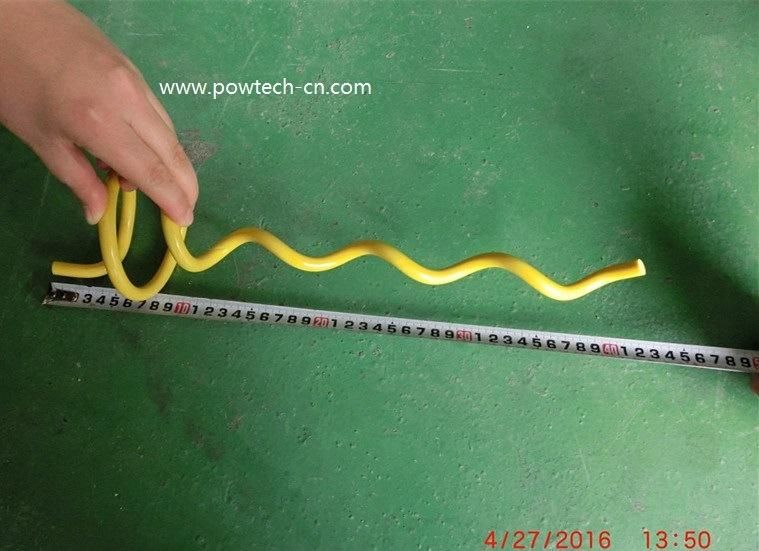

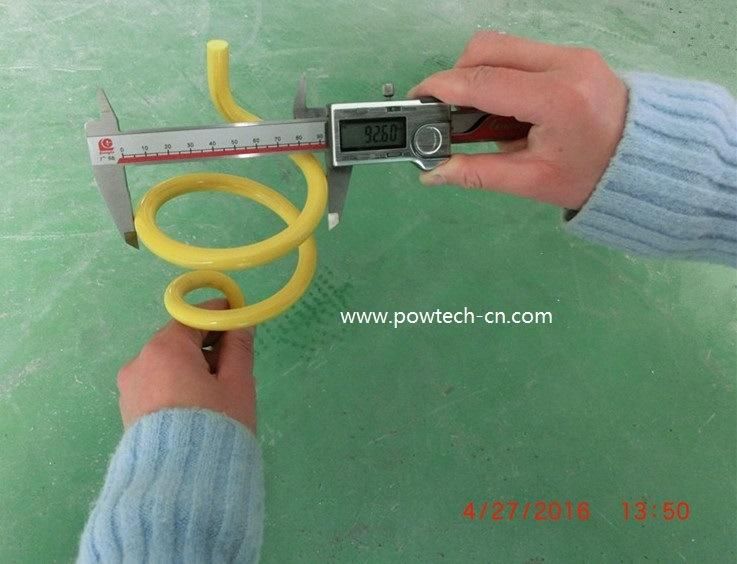

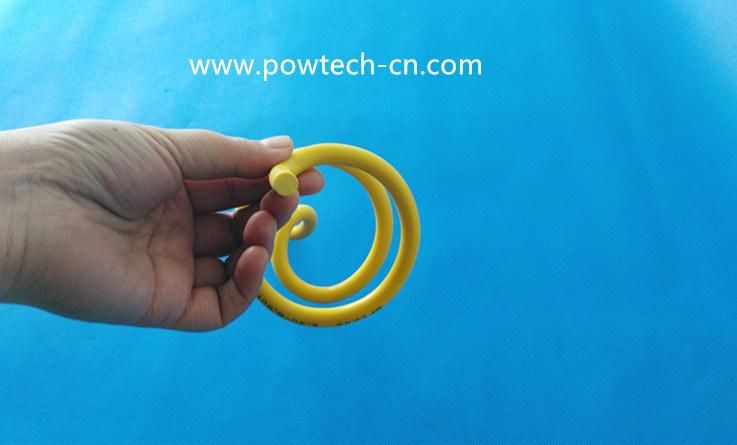

Yellow Spiral Bird Flight Diverter (one side)






The Bird Diverter is designed to make overhead lines visible to birds and provides an economic means of reducing the hazard to both lines and birds.For low and medium voltage construction, it is applied to the phase conductors(bare or jacketed).For high voltages, it is used on the earth wire.
Features
1.Light weight
2.Long service life
3.Material: gray or yellow PVC with UV protection

Technical Data
Table 1: Bird flight diverter (BFD)

Model	Min(mm)	Max(mm)	Length(mm)	Rod dia(mm)
BFD175-249	4.44	6.4	400	9.5
BFD250-349	6.35	8.9	400	9.5
BFD350-449	8.9	11.4	400	9.5
BFD450-599	11.43	15.21	400	9.5
BFD600-770	15.2	19.56	400	9.5
BFD771-858	19.56	21.79	400	12.7
BFD859-942	21.80	23.92	400	12.7

Material used:
Manufactured from rigid solid high impact polyvinyl chloride, possessing excellent chemical and strength propeties and which will retain good physical charateristics within the range of extreme temperatures. Outdoor aging tests indicate that the material does not deteriate in function or appearance from the effects of severe weather conditions. Industrial fumes and salt water cannot seriously degrade the properties of rigid PVC.
