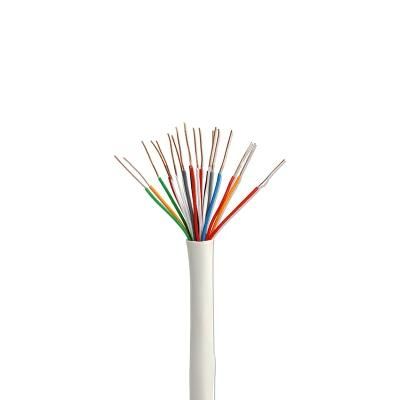

UL1569 20AWG PVC Equipment Wire 305m Reel
B&T (Zhangzhou) Cable Co., Ltd.- Rated Temperature：80 ºC
- Rated Voltage：300V
- According to：UL Subject758, UL1581, C22.2
- Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
- Performance：for General Purpose Internal Wiring of Appliance
- Conductor：Stranded, Tinned or Bare Copper Conductor
Base Info
- Model NO.：UL1569
- Delivery Time：in 7-10days
- Color：Could Be Customized Color
- Products Certification：UL, cUL, RoHS, Reach
- Factory Certificate：ISO9001:2008 Standard
- Transport Package：610 Feet in Roll
- Specification：18~30AWG 1~34 Conductors
- Trademark：B&T
- Origin：Xiamen, Fujian
- HS Code：8544492100
- Production Capacity：300, 000km
Description
Maximum Resistance at 20 ºC
Ω/kmAWG No./mm Dia.
mm Nom. Thick.
mm Nom.Dia.
mm 26 7/0.16 0.48 0.41 1.30 139 24 11/0.16 0.61 0.41 1.43 88.9 22 17/0.16 0.76 0.41 1.58 57.5 20 7/0.32 0.96 0.41 1.78 34.6 18 41/0.16 1.18 0.41 2.00 23.3 16 26/0.254 1.49 0.41 2.32 15.1 14 41/0.254 1.87 0.41 2.70 9.2
Ω/km
mm
mm
mm
