• Model NO.：UL3122
• Material Shape：Round Wire
• Range of Application：High Temperature Element
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Fongming

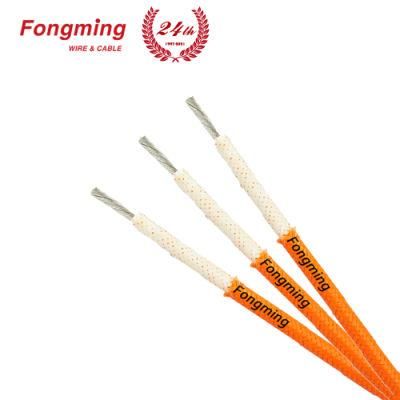

• Name：Ceramic Tube Use Silicone Insulated Electric Wire
• Voltage：300V
• Temperature：200c
• Color：White Red Blue Green Black Brown
• Size：AWG 24~12
• Standard：UL, CSA
• UL File No.：E315207
• Keywords：Wire UL3122
• Keywords1：UL3122 Wire
• Application1：Electrical Heating Resistance
• Application2：Electrical Home Appliance
• Application3：Internal Wiring
• Manufacturer：Yangzhou Fongming Cable Factory
• Transport Package：Cartons and Pallet
• Specification：AS CUSTOMER REQUIREMENT
• Trademark：FONGMING
• Origin：Yangzhou China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

ConductorInsulationMax. Conductor Resistance
(20ºC)  (Ω/km)Reference Weight
(kg/km)Size
AWGNominal Area
(mm2 )Conductor Structure
(No./mm)Nominal Thickness
(mm)Braid Thickness
(mm)Nominal Diameter
(mm)Max. Diameter
(mm)26 0.128 7/0.16 0.39 0.20 1.66 1.8 143.0 4.0 24 0.205 7/0.20 0.39 0.20 1.78 1.95 92.0 4.9 22 0.324 7/0.26 0.39 0.20 1.96 2.1 56.8 6.6 20 0.519 7/0.32 0.39 0.20 2.15 2.3 40.1 8.6 18 0.823 7/0.40 0.39 0.20 2.38 2.55 23.0 13.7 16 1.31 7/0.50 0.39 0.20 2.68 2.85 14.6 17.9 24 0.2 1/0.500.39 0.20 1.7 1.85 88.3 4.6 22 0.3 1/0.62 0.39 0.20 1.8 2.0 62.4 6.2 20 0.5 1/0.80 0.39 0.20 2.0 2.2 38.6 8.1 18 0.75 1/1.0 0.39 0.20 2.2 2.4 22.5 11.8 24 0.2 12/0.15 0.39 0.15 1.7 1.9 95.0 4.9 22 0.3 17/0.15
12/0.18 0.39 0.15 1.9 2.1 71.2 6.0 20 0.5 28/0.15
20/0.18
16/0.20 0.39 0.20 2.2 2.4 40.1 8.6 18 0.75 42/0.15
30/0.18
24/0.20 0.39 0.20 2.4 2.6 26.7 11.6 17 1.0 40/0.18
32/0.20 0.39 0.20 2.6 2.8 20.0 14.4 16 1.25 50/0.18
40/0.20 0.39 0.20 2.7 2.9 15.9 16.9
Certificates


Transport & Payment



Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.


Company Information



Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

Factory Size (Sq.meters):	45,000-50,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	20
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

 Hot Sale



FAQ

 1. Why the price is so low?

You are ordering directly from the factory.



2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3.Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
