• Model NO.：FTTH
• Core：Double Core
• Certification：RoHS, CE, ISO9001
• Brand：Hanxin or OEM
• Sheath Material：LSZH
• Fiber：G657A1
• Strength Member：Steel Wire,FRP
• Messenger：Steel Wire
• Jacket：LSZH,Low Friction Coefficient
• Length：1000m,2000m Per Roll
• Packing：Wooden Rell,Carton,Pallet
• Transport Package：1000m,2000m Per Roll
• Specification：1 2 4core
• Trademark：Hanxin or OEM
• Origin：Zhejiang China
• HS Code：8544700000
• Production Capacity：2000000m,Month

Fiber CountCable TypeNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)1Simplex 2.0mm7.65.102.00.079490/110290/651Simplex 2.5mm7.85.232.50.098490/110290/651Simplex 2.8mm8.05.372.80.110490/110290/651Simplex 3.0mm8.25.503.00.118490/110290/652Duplex Flat28.018.794.0X6.80.157X0.267980/220580/1302Duplex Round18.412.354.20.165980/220580/1302Duplex Zip15.010.072.4X4.80.094X0.188980/220580/130 Mechanical Properties:Minimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)

Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
 Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
                      100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in)Fiber Compliance:Temperature CyclingIEC60794-1-2-F2Repeated BendingIEC60794-1-2-E6Tensile StrengthIEC60794-1-2-E17ATorsionIEC60794-1-2-ECrushIEC60794-1-2-E3KinkIEC60794-1-2-E10ImpactIEC60794-1-2-E4Cable BendIEC60794-1-2-E11    Cool BendIEC60794-1-2-E11Safety Compliance:General Purpose GradeFlammability Test: OFN (UL1581)Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade

LSFROH Grade


FR GradeFlammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZStandard Compliance
GR409-CORE                                       TIA/EIA 568B.3                                ICEA-S-83-596





Contact us:NameGeorge LiCompanyHANLI GROUP
ZHEJIANG HANLI CABLE CO., LTD
ZHEJIANG KUAYUE CABLE CO., LTD.
ZHEJIANG HANXIN OPTOELECTRONIC CORP. LTD. HANGZHOU ZHEXIN IMPORT AND EXPROT CO., LTD.AddressNO.409 Qingyu Road, Linglong Industry, Lin'an District, Hangzhou City, Zhejiang P.R., China

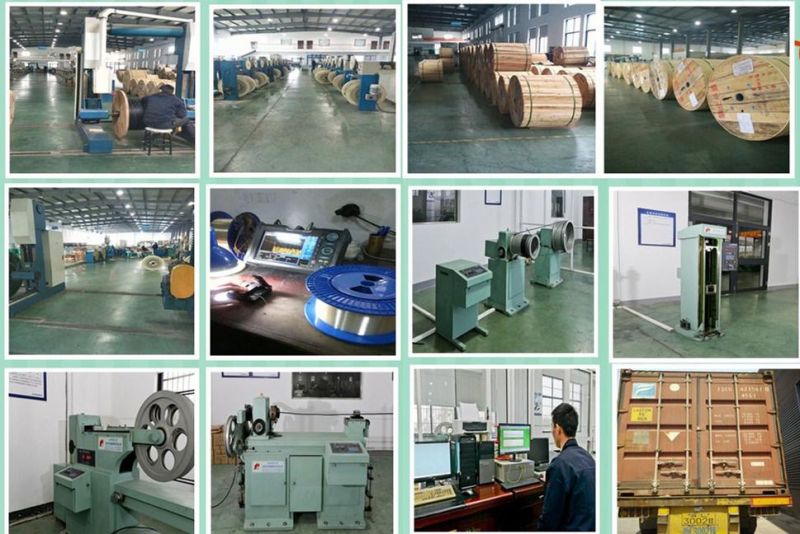

Welcome to visit our factory and  get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
