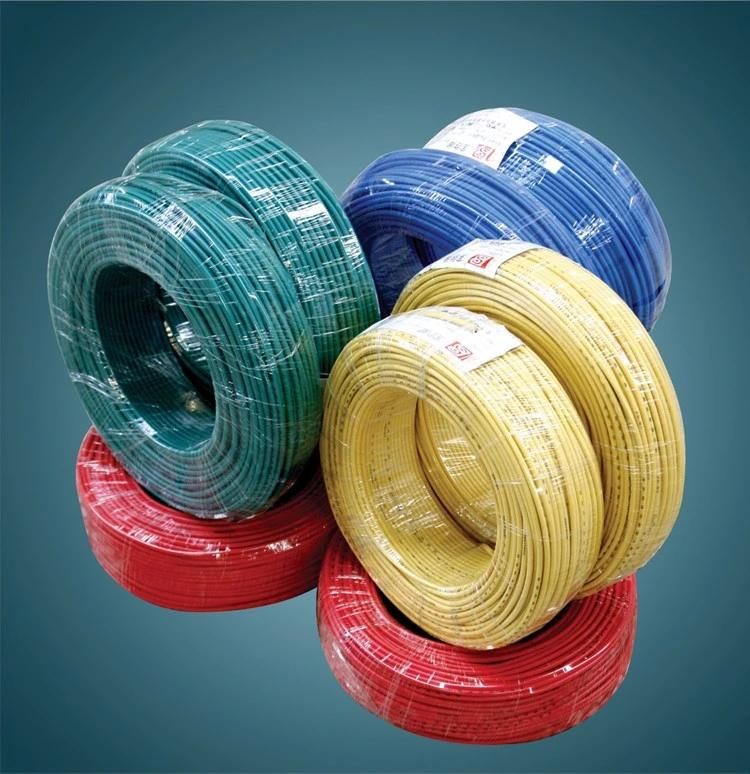

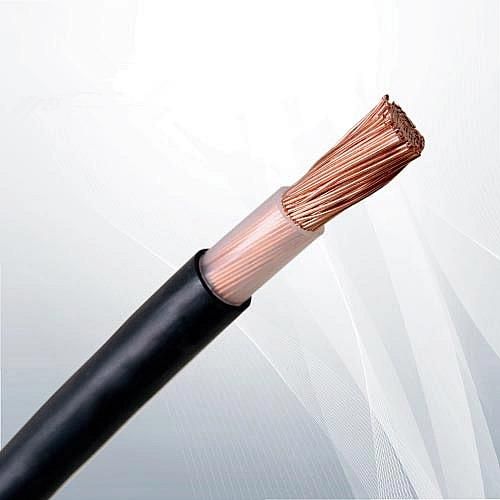

• Model NO.：single core flexible cable
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：14 AWG to 1000 Kcmil (MCM)
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

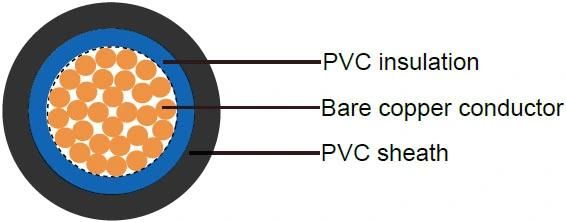

Bare copper conductorStranding to BS6360 Class 5 or IEC60228 Class 5PVC insulation Type TI1 to BS7655PVC sheath Type TM1 to BS7655oxygen index> 30%Meets requirements for flammability as required by BT specification M231

 Core Identification

Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order

 Technical Characteristics

Working voltage1.0mm^2 to 35mm^2 - 450/750V to BS 6004 50mm^2 and above - 600/1000V to BS 6346Minimum bending radiusup to 50 mm^2 : 3xoverall diameter 70mm^2 and above: - 4xoverall diameterOperating temperature-15 oC to +70 oCInsulation resistance10 MΩxkmFlame retardantIEC 60332.1, BS4066 Part 1

 Cable Parameter

AWG (No of Strands/Strand Diameter)No. of Cores x Nominal Cross Sectional AreaNominal Thickness of InsulationNominal Overall DiameterNominal Copper WeightNominal Weight#xmm^2mmmmkg/kmkg/km16(30/30)1x1.50.90.84.93614(50/30)1x2.50.90.85.45212(56/28)1x410.96.37610(84/28)1x61.10.97.61008(80/26)1x101.218.61606(128/26)1x161.219.82304(200/26)1x251.41.111.53402(280/26)1x351.41.112.54401(400/26)1x501.41.415.15412/0(356/24)1x701.41.417.07493/0(485/24)1x951.61.519.110004/0(614/24)1x1201.61.821.61241300MCM (765/24)1x1501.81.823.41523350MCM (944/24)1x18521.825.51942500MCM(1225/24)1x2402.21.828.52514-(1525/24)1x3002.4231.23125-(2013/24)1x4002.62.135.33967-(1769/23)1x5002.82.238.85063-(2257/23)1x6302.82.443.86491

Packing shipping




Any problem and inquiry pls contact with Tina
