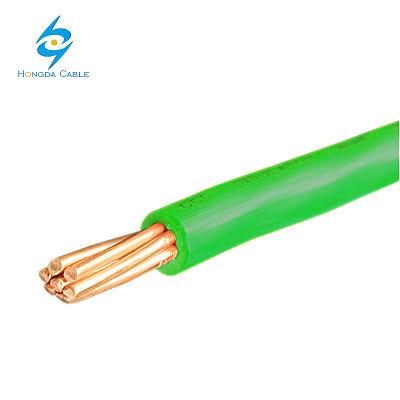

CE Certificate H07z1-U H07z1-R H07z1-K Hffr Insulated Connecting Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Underground, Laying Tubes, Under and Surface Mounting
- Conductor Material：Tinned, Stranded Copper
- Sheath Material：Bare
- Insulation Material：PVC
Base Info
- Model NO.：H07Z1-U H07Z1-R H07Z1-K
- Material Shape：Round Wire
- Range of Application：Earthing and Bonding Services
- Certification：ISO9001, CCC, SGS
- Brand：Hongda
- Transport Package：a: Roll of 100 M B: Reel of 1500 M.
- Specification：0.5mm2 to 10mm2
- Origin：China
- HS Code：8544492900
- Production Capacity：40km,Day
Description
VOLTAGE RATING
450/750V
CABLE CONSTRUCTION

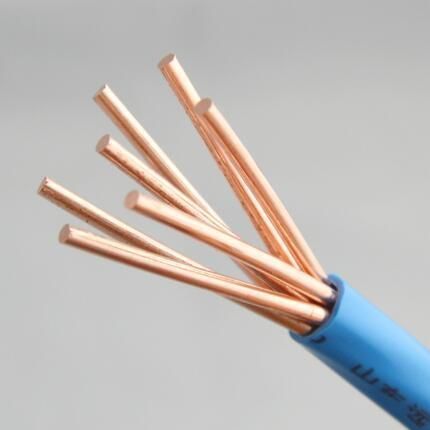

Conductor : Copper conductor according to BS EN 60228 class 5.
H07Z1-K : 1.5-240mm2 Class 5 stranded copper conductor to BS EN 60228.
Insulation : Thermoplastic compound of type TI 7 to EN 50363-7.
Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
COLOUR CODE
Black, Blue, Green, Yellow, Red, White, Green and Yellow.
PHYSICAL AND THERMAL PROPERTIES
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds) : 160°C
Minimum bending radius :
OD<8mm : 4 × Overall Diameter
8mm≤OD≤12mm : 5 × Overall Diameter
OD>12mm : 6 × Overall Diameter
ELECTRICAL PROPERTIES
Conductor operating temperature : 70°C
Ambient temperature : 30°C

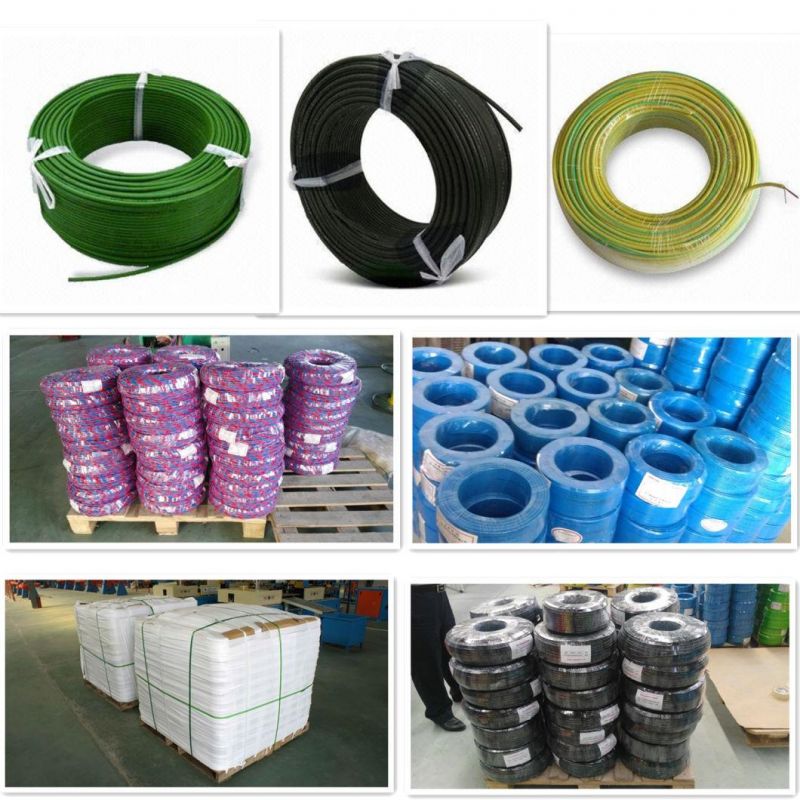

Insulated conductor Cable PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

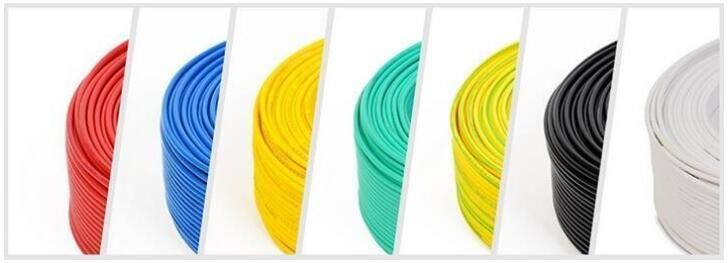

Insulated conductor Cable AVAILABLE COLORS:
Cables (Sizes 0.5mm2 to 6mm2): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 10mm2 to 25mm2): Black, White, Blue and Red.
Cables (Sizes 25mm2 to 240mm2): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT.

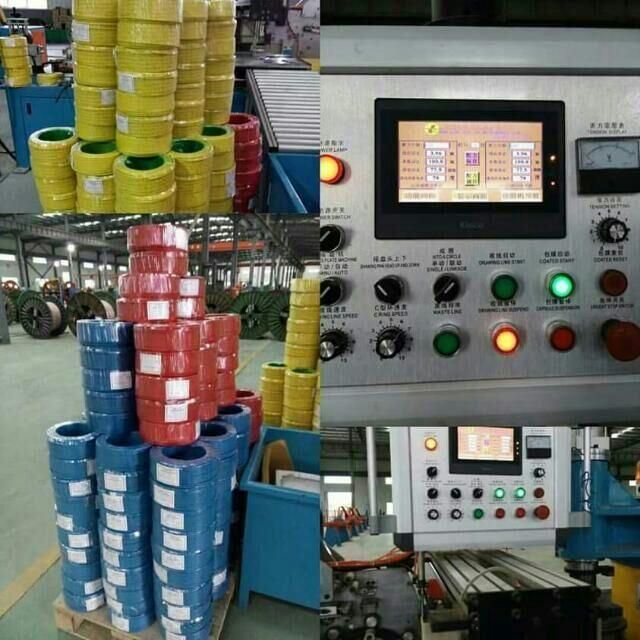

Company Profile:
Hongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co., The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc
Our advantages
1. With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2. Good cost-control system, with highly-competitive prices;
3. Strong and Professional R&D team to meet your specific needs;
4. Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking: we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
Any problem and inquiry pls contact with Tina
