1.5mm 2.5mm Fire Resistant Single Core Fire Performance Cwz Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：No
- Insulation Material：PVC
Base Info
- Model NO.：Fire Performance CWZ Cable
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CCC, SGS
- Brand：Hongda
- 1.5 - 10 Sqmm：Solid Conductor
- 16 - 400 Sqmm：Non Compacted Circular Stranded
- Transport Package：100m Per Roll,Reel, or as Customer Requirement
- Specification：1.5mm2 to 400mm2
- Trademark：Hongda Cable
- Origin：Made in China
- HS Code：8544492900
- Production Capacity：1800km,Month
Description
Nominal Cross Sectional area
(mm2)Conductor Thickness of insulation
(mm) Overall Diameter Maximum continuous cuttent rating in free air
(A) Minumum insulation resistance at 70ºC
(MΩ-km) Cable weight (approx.)
Kg/Km Standard length
(m) Number of wire
(min) Diameter Approx.
(mm) Lower Limit
(mm) Upper Limit
(mm) 1.5 1 1.38 0.7 2.6 3.2 21 0.011 22 100/C 1.5 7 1.50 0.7 2.7 3.3 21 0.010 24 100/C 2.5 1 1.78 0.8 3.2 3.9 29 0.010 32 100/C 2.5 7 2.01 0.8 3.3 4.0 29 0.009 35 100/C 4 1 2.25 0.8 3.6 4.4 37 0.0085 49 100/C 4 7 2.55 0.8 3.8 4.6 37 0.0077 50 100/C 6 1 2.76 0.8 4.1 5.0 48 0.0070 75 100/C 6 7 3.12 0.8 4.3 5.2 48 0.0065 80 100/C 10 1 3.57 1.0 5.3 6.4 67 0.0070 120 100/C 10 7 4.05 1.0 5.6 6.7 67 0.0065 130 100/C 16 7 5.10 1.0 6.4 7.8 92 0.0050 180 100/C 25 7 6.42 1.2 8.1 9.7 127 0.0050 280 100/C 35 19 4.59 1.2 9.0 10.9 157 0.0043 380 100/C 50 19 8.90 1.4 10.6 12.8 191 0.0043 500 500/D 70 19 10.7 1.4 12.1 14.6 244 0.0035 700 500/D 95 19 12.6 1.6 14.1 17.1 297 0.0035 1000 500/D 120 37 14.21 1.6 15.6 18.8 345 0.0032 1200 500/D 150 37 15.75 1.8 17.3 20.9 397 0.0032 1500 500/D 185 37 17.64 2 19.3 23.3 453 0.0032 1900 500/D 240 61 20.25 2.2 22.0 26.6 535 0.0032 2500 500/D 300 61 22.68 2.4 24.5 29.6 617 0.0030 3100 500/D 400 61 25.65 2.6 27.5 33.2 741 0.0028 3900 500/D C: packing in coil. D: packing in drum.
Single Core Copper Conductor Mica Tape Fire Resistant Cable

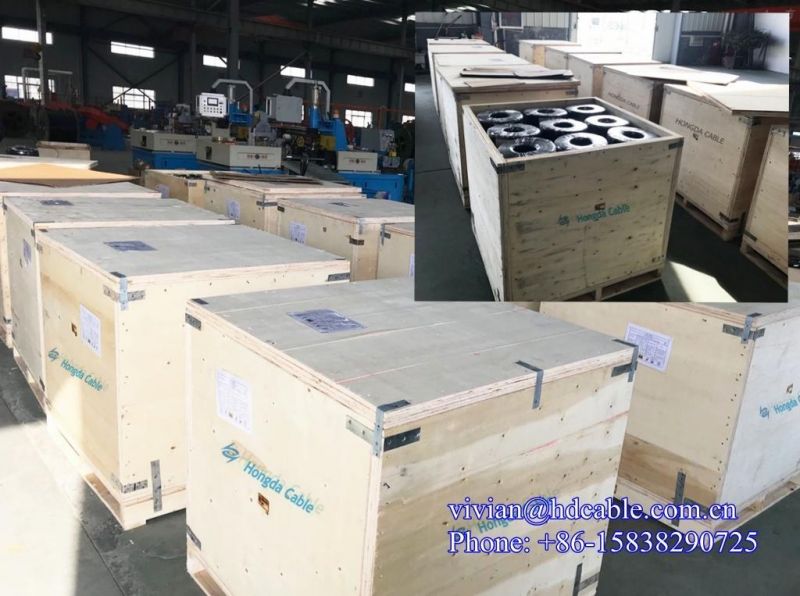

PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
