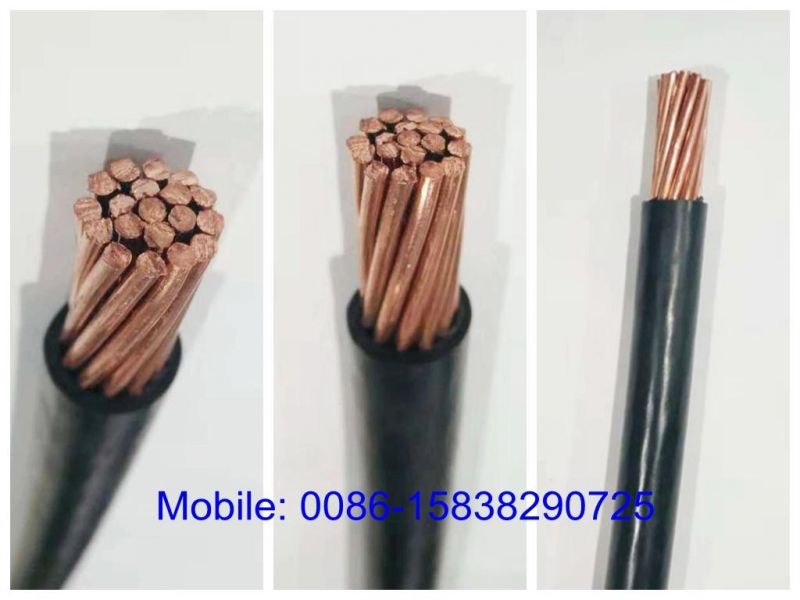

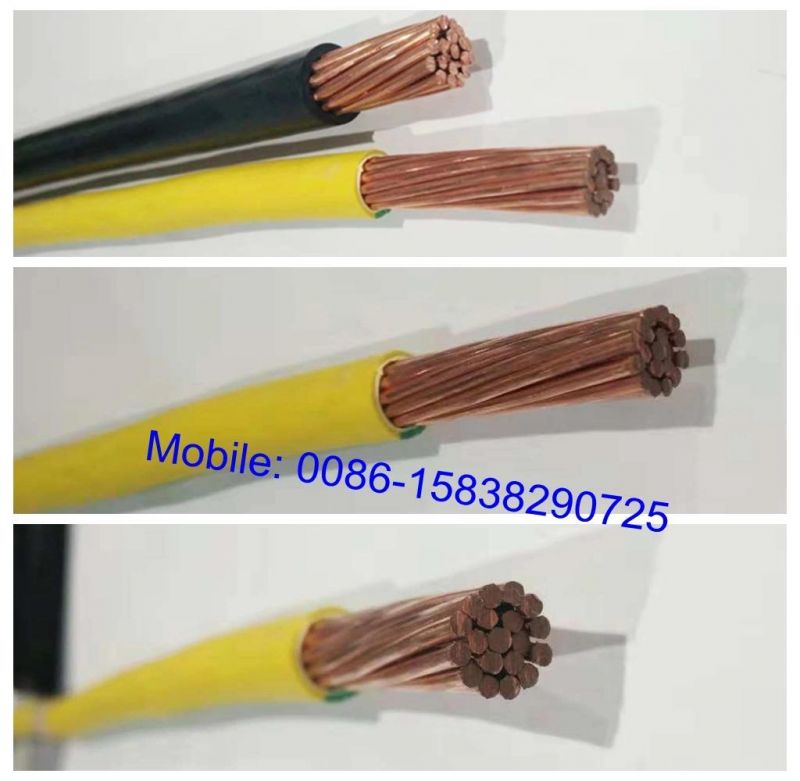

35mm 50mm 70mm 120mm PVC Insulated Earthing Copper Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：N,a
- Insulation Material：PVC
Base Info
- Model NO.：pvc insulated cable
- Material Shape：Round Wire
- Range of Application：Household, Instruments, Lighting Equipment
- Certification：ISO9001, CCC
- Brand：Hongda
- Standard：PVC Insulated Cable
- Transport Package：Package in Roll or Reel or Drum
- Specification：0.5mm2 to 240mm2
- Trademark：Hongda Cable
- Origin：China
- HS Code：8544492100
- Production Capacity：900km,Month
Description
Construction dataSize norminal Diameter norminal of condcutor Insulation Thickness Overall diameter Mass Approx. Weight (mm2) (mm) (mm) (mm) (kg/km) 0.5 0.9 0.6 2.10 9 0.75 1.15 0.6 2.35 11 1 1.25 0.6 2.45 14 1.5 1.55 0.7 2.95 20 2* 1.7 0.8 3.30 25 2.5 1.97 0.8 3.57 32 4 2.5 0.8 4.10 46 6 3.10 0.8 4.70 64 10 4.30 1.0 6.30 116 16 5.40 1.0 7.40 175 25 6.80 1.2 9.20 265 35 7.85 1.2 10.25 364 50 9.30 1.4 12.10 520 70 11.25 1.4 14.05 720 95 12.50 1.6 15.70 890 120 14.00 1.6 17.20 1190 150 15.50 1.8 19.10 1500 185 17.70 2.0 21.70 1790 240 20.00 2.2 24.40 2390
1.9 Electrical DataConductor Insulation Inductance Current - Carrying Capacity at 30° C * Short circuit current at 1 sec Nom. Cross Section Area DC Resistance at 20°C AC Resistance at 70°C Insulation
Resistance
at 70°C in pipe in air (mm²) Max. (Ω/km) Max. (Ω/km) Min.
(M.Ω.km) (mH/km) Max. (A) Max. (A) Max. (kA) 1.5 12.1 14.478 0.0100 0.320 15 24 0.17 2.5 7.41 8.866 0.0090 0.309 19 32 0.29 4 4.61 5.516 0.0077 0.290 25 42 0.46 6 3.08 3.685 0.0065 0.276 33 54 0.69 10 1.83 2.190 0.0065 0.274 45 73 1.15 16 1.15 1.376 0.0050 0.260 61 98 1.84 25 0.727 0.870 0.0050 0.257 83 129 2.88 35 0.524 0.627 0.0040 0.249 103 158 4.03 50 0.387 0.464 0.0045 0.248 132 197 5.75 70 0.268 0.321 0.0035 0.240 165 245 8.05 95 0.193 0.232 0.0035 0.239 207 290 10.93 120 0.153 0.184 0.0032 0.235 235 345 13.80 150 0.124 0.150 0.0032 0.235 - 390 17.25 185 0.0991 0.121 0.0032 0.235 - 445 21.28 240 0.0754 0.093 0.0032 0.233 - 525 27.60 300 0.0601 0.075 0.0030 0.232 - 605 34.50 400 0.0470 0.060 0.0028 0.231 - 725 41.20
2. PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
For more information, don't hesitate to contact us on phone +86-15838290725 (Vivian Yuan).
1.9 Electrical Data
Resistance
at 70°C
(M.Ω.km)
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information
2. PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
For more information, don't hesitate to contact us on phone +86-15838290725 (Vivian Yuan).
