LV Copper Cable Fg16or16 Fg16r16 Power Cable Flex Cls5

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：Rubber
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：FG16OR16
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE
  • Model：Fg16or16, Fg16om16
  • Brand：Hongda Cable
  • Type：Cable Fg16or16, Fg16r16
  • Transport Package：Drums
  • Specification：1.5mm2 to 400mm2
  • Trademark：Hongda
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1000km,Month

Description

Basic Info.

Model NO. FG16OR16 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Fg16or16, Fg16om16 Brand Hongda Cable Type Cable Fg16or16, Fg16r16 Transport Package Drums Specification 1.5mm2 to 400mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 1000km/Month

Product Description

LV Copper Cable FG16OR16 FG16OM16 Power Cable Flex Cls5


DESCRIPTION

POWER CABLE, HEPR INSULATED (G16 TYPE) AND PVC SHEATHED WITH SPECIAL REQUIREMENTS OF REACTION TO FIRE ACCORDING TO CONSTRUCTION PRODUCTS REGULATION

SHAPE

Round

INSTALLATION

Fixed

CONDUCTOR

Flexible annealed copper cord, class 5 (EN 60228, IEC 60228)

INSULATION

HEPR compound G16 type with a low emission of smoke and corrosive gases at a max temperature of 90°C, with special requirements of reaction to fire performance according to the Construction Products Regulation (CPR)

SHEAT

Polyvinyl chloride compound according to Fire reaction classes required by the Construction Products Regulation (CPR).

Colour of the core:
Two cores: blue - brown.
Three cores: blue - brown - green/yellow   or   brown - black - grey.
Four cores: brown - black - grey - green/yellow   or   blue - brown - black - grey.
Five cores: blue - brown - black - grey - green/yellow or blue - brown - black - grey - black.

Minimum installation and handling temperature: + 0 °C

Maximum operating temperature: 90 °C on the conductor.

Minimum usage temperature: - 15 °C only if the cable is not subjected to shocks, vibrations, movements or other mechanical stresses. If the cable is operated at a constant current and so is not subjected to expansions and contractions due to the conductor temperature variations, it is possible to be used even at lower temperatures.

Maximum short circuit temperature: 250 °C on the conductor (for maximum 5 seconds).

Minimum permissible bending radii: 4 times the cable overall diameter.

Maximum pulling force during laying: 5 kg/mm² of the conductor cross section.

Guide to Use: for internal installations, also in wet locations and for external installations; for installation in surface mounted or on metallic structures; direct laying in earth permitted.
FG16OR16 cables are suitable for general applications in construction work subject to fire reaction requirements; for bundle installations for higher risk environments in the event of fire, having fire reaction class Cca-s3, d1, a3.

These cables are to be used only for electrical power transmission and to be installed only by skilled personal.


Technical specification


FormationApprox. conductorAverage insulation thicknessAverage sheath thicknessMax. externalMax. electrical resistance at 20ºCApprox. cable weight
No.x mm2mmmmmmmmΩ/kmkg/km
1x1,51,50,71,48,213,355
1x2,52,00,71,48,77,9866
1x42,50,71,49,34,9584
1x63,00,71,49,93,30110
1x104,00,71,410,91,91150
1x165,00,71,411,41,21220
1x256,20,91,413,20,780310
1x357,40,91,414,60,554410
1x508,91,01,416,40,386560
1x7010,51,11,418,30,272760
1x9512,21,11,520,40,206960
1x12013,81,21,522,40,1611210
1x15015,41,41,524,80,1291480
1x18516,91,61,627,20,1061790
1x24019,51,71,730,40,08012320
1x30023,01,81,833,00,06412840
1x40026,52,01,937,70,04863735
1x50028,52,22,143,60,03844660
2x1,51,50,71,812,013,3130
2x2,52,00,71,813,07,98165
2x42,50,71,814,24,95210
2x63,00,71,815,43,30270
2x104,00,71,817,31,91390
2x165,00,71,819,41,21520
2x256,20,91,823,00,780765
2x357,40,91,825,70,5541020
2x508,91,01,829,30,3861400
3x1,51,50,71,812,513,3150
3x2,52,00,71,813,67,98190
3x42,50,71,814,94,95250
3x63,00,71,816,23,30320
3x104,00,71,818,21,91470
3x165,00,71,820,61,21640
3x256,20,91,824,50,780960
3x357,40,91,827,30,5541290
3x508,91,01,831,20,3861785
3x7010,51,11,935,60,2722700
3x9512,21,12,040,00,2063410
3x12013,81,22,144,40,1614340
3x15015,41,42,349,50,1295404
3x18516,91,62,455,20,1066550
3x24019,51,72,661,90,08018475
3x30023,01,82,868,00,064110440
4x1,51,50,71,813,413,3170
4x2,52,00,71,814,67,98220
4x42,50,71,816,04,95295
4x63,00,71,817,53,30385
4x104,00,71,819,81,91575
4x165,00,71,822,41,21795
4x256,20,91,826,80,7801205
4x357,40,91,830,50,5541750
4x508,91,01,834,10,3862530
4x7010,51,11,836,60,2723600
4x9512,21,12,141,50,2064380
4x12013,81,22,245,80,1615585
4x15015,41,42,452,10,1296920
4x18516,91,62,561,10,1068364
4x24019,51,72,768,80,080110830
3x35+257,4/6,20,9/0,91,829,20,554/0,7801535
3x50+258,9/6,21,0/0,91,832,40,386/0,7802020
3x70+3510,5/7,41,1/0,91,837,00,272/0,5543030
3x95+5012,2/8,91,1/1,02,142,00,206/0,3863915
3x120+7013,8/10,51,2/1,12,246,90,161/0,2725040
3x150+9515,4/12,21,4/1,12,452,50,129/0,2066300
3x185+9516,9/12,21,6/1,12,557,30,106/0,2068325
3x240+15019,5/15,41,7/1,42,765,50,0801/0,1299930
5G1,51,50,71,814,413,3195
5G2,52,00,71,815,67,98260
5G42,50,71,817,34,95345
5G63,00,71,818,93,30455
5G104,00,71,821,51,91680
5G165,00,71,824,41,21970
5G256,20,91,829,30,7801470
5G357,40,91,832,80,5541990
5G508,91,02,038,20,3863030
7x1,51,50,71,815,413,3260
10x1,51,50,71,818,713,4340
12x1,51,50,71,819,313,4380
16x1,51,50,71,821,113,4480
19x1,51,50,71,822,113,4535
24x1,51,50,71,825,413,5640
7x2,52,00,71,816,87,98381
10x2,52,00,71,820,68,06462
12x2,52,00,71,821,38,06530
16x2,52,00,71,823,38,06670
19x2,52,00,71,824,58,06755
24x2,52,00,71,828,38,10915
LV Copper Cable Fg16or16 Fg16r16 Power Cable Flex Cls5

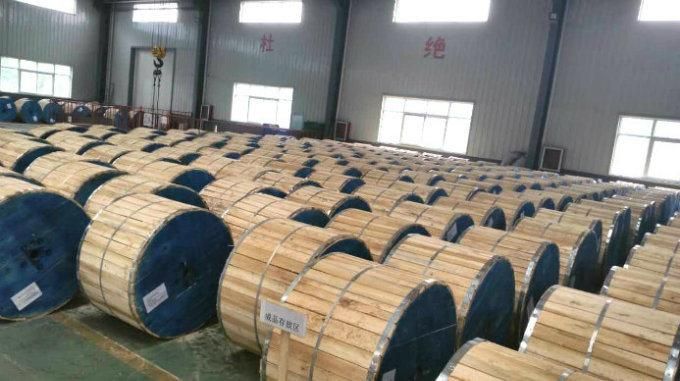

Packing:
LV Copper Cable Fg16or16 Fg16r16 Power Cable Flex Cls5

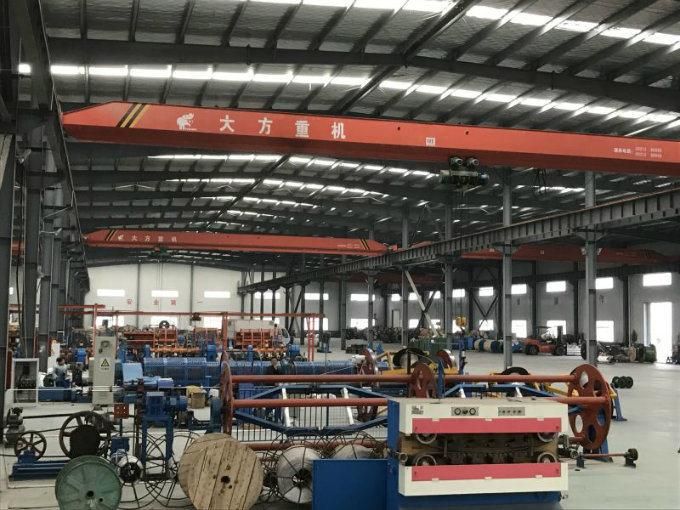

Factory information:LV Copper Cable Fg16or16 Fg16r16 Power Cable Flex Cls5
