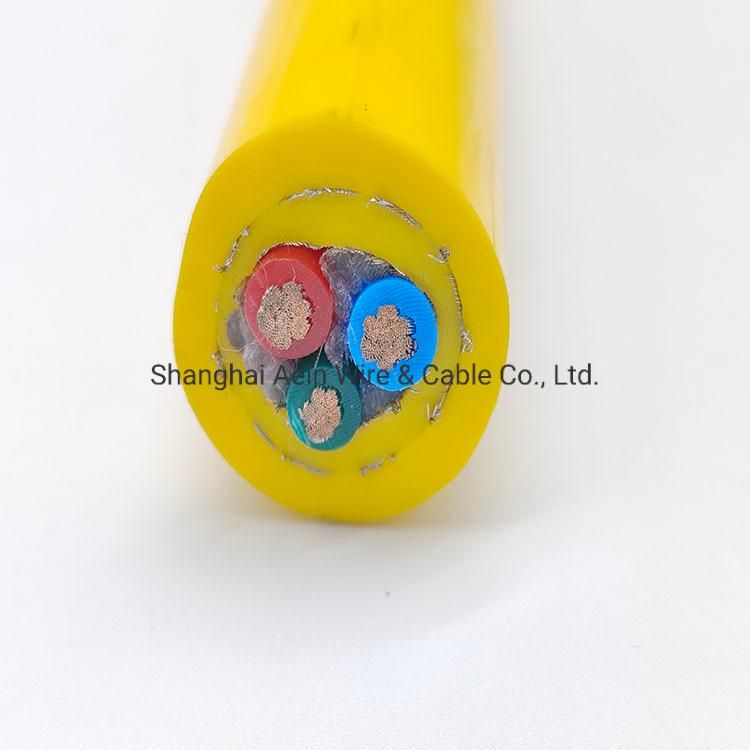

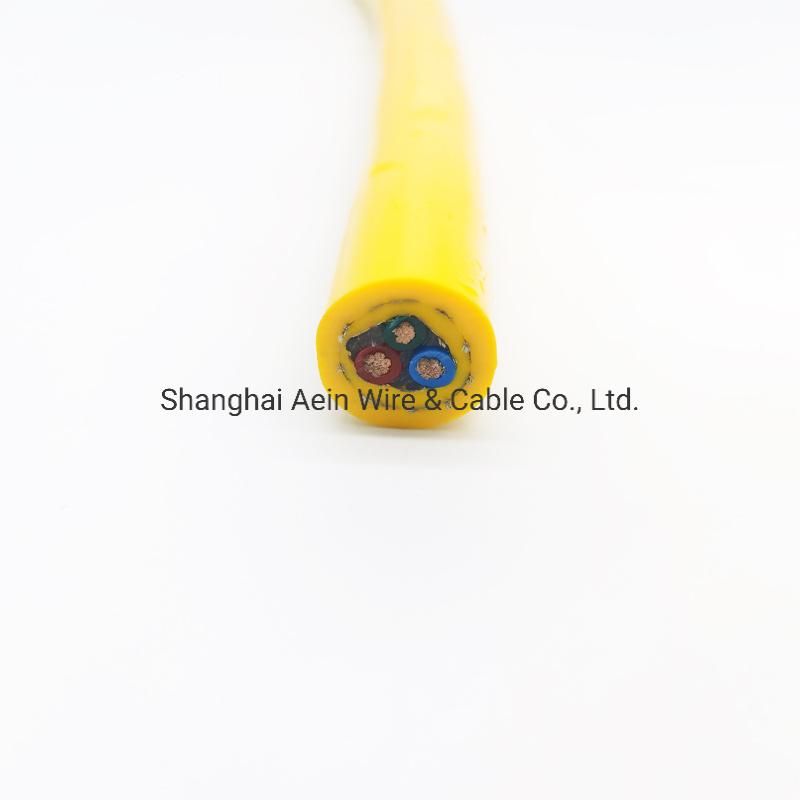

Crane Cable Nshtouk-Z-742 Flexible Drum Reeling Cable with Strain Relief

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Crane and Conveyor Systems
  • Conductor Material：Copper
  • Sheath Material：Neoprene
  • Insulation Material：Rubber

Base Info

  • Model NO.：Crane Cable NSHTOUK-Z-742
  • Material Shape：Round Wire
  • Range of Application：Crane and Conveyor Systems
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemCrane Cable NSHTOUK-Z-742ConductorCopper wire bareInsulationRubberOuter sheathNeopreneVoltage Rating 0.6/1kVTest Voltage2500VTemperaturefixed installation: -45°C to +70°C
flexible application: -25°C to +70°CColorOptionalApplicationCrane cable NSHTÖUK-Z-742 is suitable where there are heavy mechanical tasks such as frequent winding and unwinding with torsional strain. This occurs especially in transport, conveyor and hoist systems. The neoprene outer sheath makes the cable resistant to ozone and UV radiation as well as to oil, acid, fat and solvents. The cable may be used in dry, damp and wet rooms as well as outdoors.
