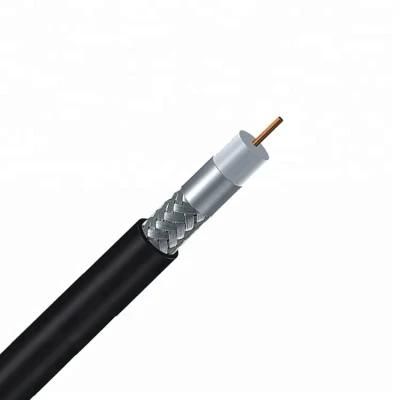

Low Loss Cable 50 Ohm Rg 213 Coaxial Cable Mil

Hangzhou Spring Electronics Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG213
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Brand：OEM
  • Braiding：32,48,64,96,112,128,144
  • Transport Package：200m,300m,305m
  • Specification：2.74mm Conductor
  • Trademark：FUU
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：3500km,Month

Description

Construction Parameters:

Inner Conductor

7×0.752mm Bare Copper

Dielectric

7.24mm Solid PE

Shield 1

Nom. 7.85mm Bare Copper

Jacket

10.30mm PVC

Jacket Thickness



Application



Electrical Characteristics:



Capacitance

101.05 pF/m

Impedance

50 Ω

Velocity of Propagation

0.66

Max Operating Voltage

5000 VMS

Max Operating Frequency

1000 MHz

Bending Radius

40 mm



Mechanical and Envrionmental Properties

Cable bend radius



Operating Temp Range

-20 ºC to 80ºC

Cable diamensions

10.30mm

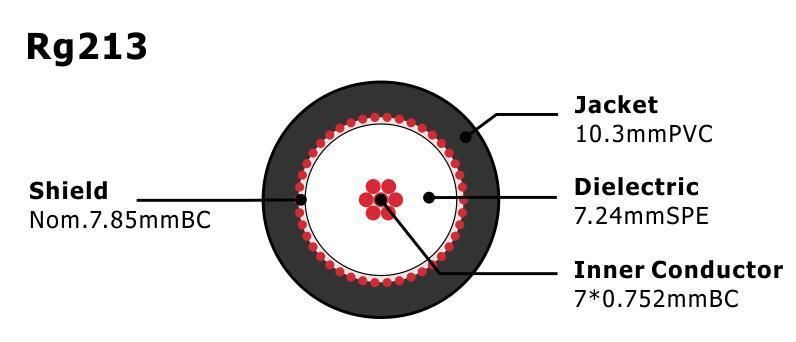

Cross Section

Low Loss Cable 50 Ohm Rg 213 Coaxial Cable Mil


Attenuation(20ºC):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

100



6.60

400



14.10

1000



24.00



Order Informations:

Marking

RG213  50 Ohm  COAXIAL CABLE ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.
