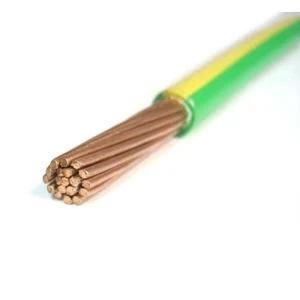

Solid or Stranded IEC 60227 Standard PVC Insulated TW THW Electrical Wire
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC
- Sheath Material：None
- Material Shape：Round Wire
Base Info
- Model NO.：TW THW
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, VDE
- Model：RV BV
- Brand：Yifang Cable
- Insulation：PVC
- Standard：IEC 60502
- Color：Black, White, Red, Green,Blue, Yellow
- Conductor：Annealed Copper Wire
- Transport Package：Coil or Drum
- Specification：10AWG 12AWG 8AWG
- Trademark：Yifang cable
- Origin：Henan Zhengzhou
- HS Code：8544492100
- Production Capacity：10000 Kilometer, Year
Description
Basic Info.
Model NO. TW THW Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, VDE Model RV BV Brand Yifang Cable Insulation PVC Standard IEC 60502 Color Black, White, Red, Green,Blue, Yellow Conductor Annealed Copper Wire Transport Package Coil or Drum Specification 10AWG 12AWG 8AWG Trademark Yifang cable Origin Henan Zhengzhou HS Code 8544492100 Production Capacity 10000 Kilometer/ YearProduct Description
Solid or Stranded IEC 60227 Standard PVC Insulated TW THW Electrical WirePVC insulated electrical wire are covering series of wire products, its working voltage is 450/750V and its working temperature
Is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.
According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire,
Flexible PVC insulated wire with different colors.
According to its shape, including flat wire, round wire, etc. With different colors.
Accoding to its core number, including single core wire, multi-core wire, etc. With different colors.
| Type | Name |
| BV | copper conductor pvc insulation electric wire |
| BLV | Aluminum conductor pvc insulation electric wire |
| BVR | copper conductor pvc insulation flexible electric wire |
| BVV | copper conductor pvc insulation pvc shealthed round electric wire |
| BVVR | copper conductor pvc insulation pvc shealthed parellel electric wire |
| BLVVR | Aluminum conductor pvc insulation pvc shealthed round electric wire |
| Type | Rated Voltage | Number Of Cores | Nominal Cross Section Of Conductor(mm2) |
| BV | 450/750 | 1 | 0.75~400 |
| BLV | 450/750 | 1 | 1.5~400 |
| BVR | 450/750 | 1 | 0.75~400 |
| BVV | 450/750 | 1~5 | 0.75~35 |
| BLVV | 450/750 | 1~5 | 2.5~35 |
| BVVB | 450/750 | 2,3 | 0.75~6 |
| BLVVB | 450/750 | 2,3 | 0.75~6 |
| RVS | 300/500 | 2 | 0.3~6 |
| RVV | 300/500 | 2~10,12,14,16,19,24 | 0.3~6 |
| RVVP | 300/500 | 2~10,12,14,16,19,24 | 0.3~6 |
