• Model NO.：Flexible Cables
• Material Shape：Round Wire
• Range of Application：Equipment or Building
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Conductor：Class 5
• Cores Number：1~5
• Colour：White,Black,Brown,Red,Blue,Yellow,Green,etc
• Standard：IEC 60227
• Transport Package：Coil, Drum, Pallet
• Specification：3x2.5mm2
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Flexible Cables Material Shape Round Wire Range of Application Equipment or Building Certification ISO9001, CE, CCC Brand Yifang Conductor Class 5 Cores Number 1~5 Colour White,Black,Brown,Red,Blue,Yellow/Green,etc Standard IEC 60227 Transport Package Coil, Drum, Pallet Specification 3x2.5mm2 Trademark Yifang cable Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

Multicore Cable 300/500V 3X2.5mm2 PVC Insulated Copper Flexible Cables

Specifications:

Twin and Earth cable is a general fixed wiring and lighting cable, containing three conductors.

Standards:
BS 6500

Structure:

Conductor

Annealed copper class 5 flexible condcutor according to IEC60228(BS EN 60228)

Insulation

PVC

Sheath

PVC

Physical and Thermal Properties
Voltage Rating: 300V/500V
Test Voltage: 2000V
Temperature range During operation: 0C - +70°C
Short Circuit: 160°C
Minimum bending radius: 6 X Overall Diameter

Insulation resistance: 20 MΩ x km

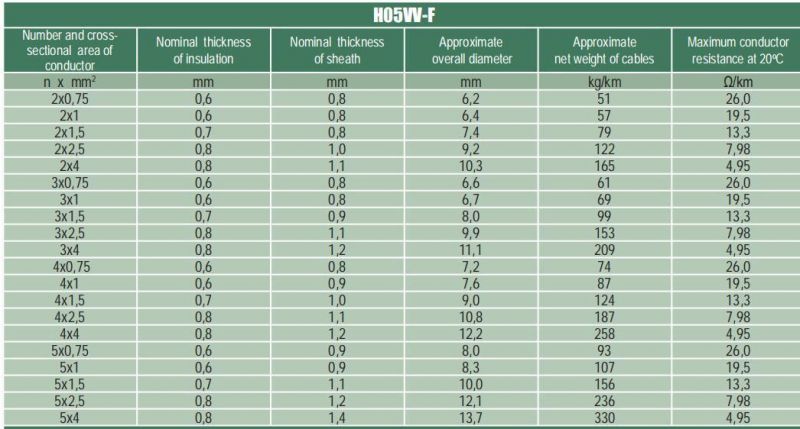

Cable Parameter:
