Amorded Fiber Optical Cable Direct Buried Underground GYTA Multi Core Outdoor Optic Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Communication, Outdoor Cabling (Ducts, Conduits or Aerial Pipe)
- Type：Single-mode Fiber
- Connection Structure：No
- Material Shape：Round Wire
- Allowed Lateral Pressure：1000,3000 N,100mm
- Allowed Tensile Strength：1000,3000 N
Base Info
- Model NO.：GYTA
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, CCC
- Brand：Superlink ,OEM
- Sheath Material：PE
- Fiber Count：2-216 Core
- Strength Member：Steel Wire
- Amored：PSP,Alp
- Transport Package：Wooden Drum , Pallet
- Specification：Outdoor optical cable GYTA
- Trademark：SUPERLINK , OEM
- Origin：Zhejiang, China
- HS Code：85447000
- Production Capacity：80000km,Month
Description
Our service1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
All start here

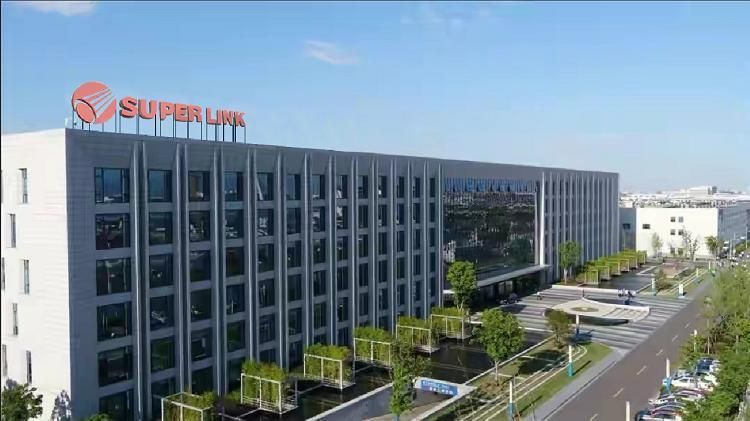

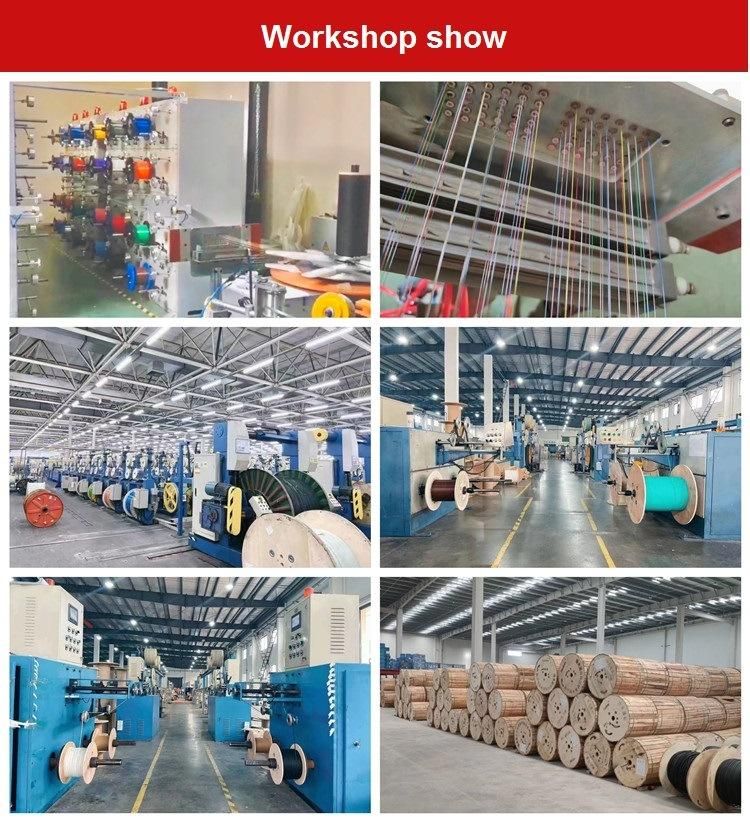

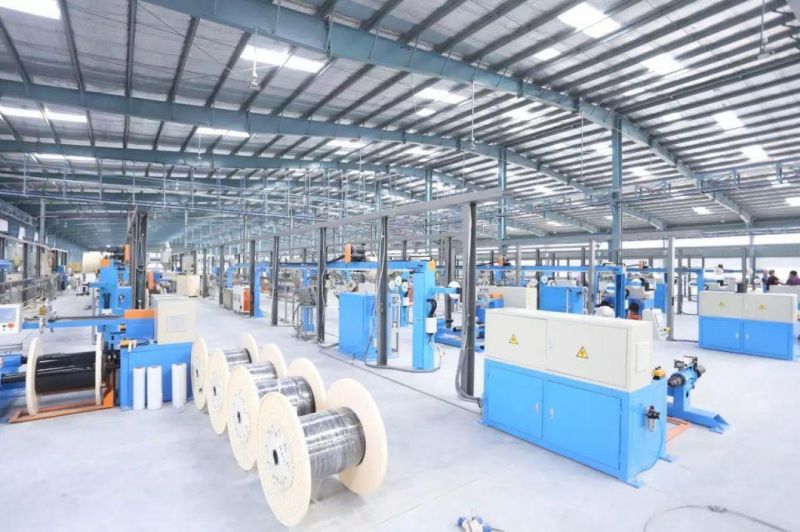

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.
Connect the world 1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
Description:

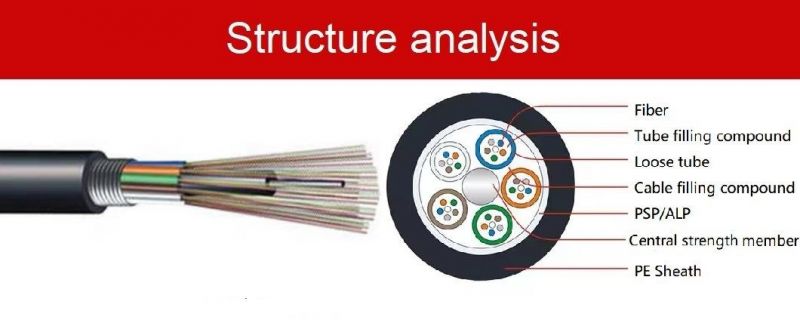

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. The both sides laminated Aluminum tape are longitudinally applied over the cable core, which is filled with filling compound to protect it from water ingress. The cable is completed with a PE(LSZH) sheath.Technical parameters
| Cable Type | Fiber Count | Loose tube count | Filler count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/short term N | Crush Resistance Long/short term N/100m | Bending Radius Static/dynamic mm |
| GYTA-2~6 | 2~6 | 1 | 4 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-8~12 | 8~12 | 2 | 3 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-14~18 | 14~18 | 3 | 2 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-20~24 | 20~24 | 4 | 1 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-26~30 | 26~30 | 5 | 0 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-32~36 | 32~36 | 5 | 0 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-38~48 | 38~48 | 5 | 0 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-50~60 | 50~60 | 5 | 0 | 9.5 | 90 | 1000/2000 | 300/1000 | 15D/30D |
| GYTA-62~72 | 62~72 | 6 | 0 | 10.0 | 126 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-74~84 | 74~84 | 7 | 1 | 11.0 | 145 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-86~96 | 86~96 | 8 | 0 | 11.0 | 145 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-98~108 | 98~108 | 9 | 1 | 12.5 | 180 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-110~120 | 110~120 | 10 | 0 | 12.5 | 180 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-122~132 | 122~132 | 11 | 1 | 13.5 | 228 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-134~144 | 134~144 | 12 | 0 | 13.5 | 228 | 1750/3500 | 300/1000 | 15D/30D |
| GYTA-146~216 | 146~216 | 12 | 0 | 13.5 | 228 | 1750/3500 | 300/1000 | 15D/30D |
Note: Storage/Operating Temperature : -40ºC to + 70ºC
Characteristics:
1.Excellent mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fibre and resist the water
3.Non-metallic central strength member FRP withstand axial loads
4.100% core filling water prevent cable jelly to ensure the cable watertight
5.AL tape longitudinal cover cable core as moisture barrier
6.Outer sheath protects cable from ultraviolet radiation
Installation: Duct, Non self-supporting aerial
Applications: Long distance, LAN communication
Standards: YD/T 901 / IEC 60794-3-10
Temperature Range: Transportation:-40ºC~+70ºC;Installation:-5ºC~+50ºC;In use:-40ºC~+70ºC
1. What's your company MOQ?- Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.

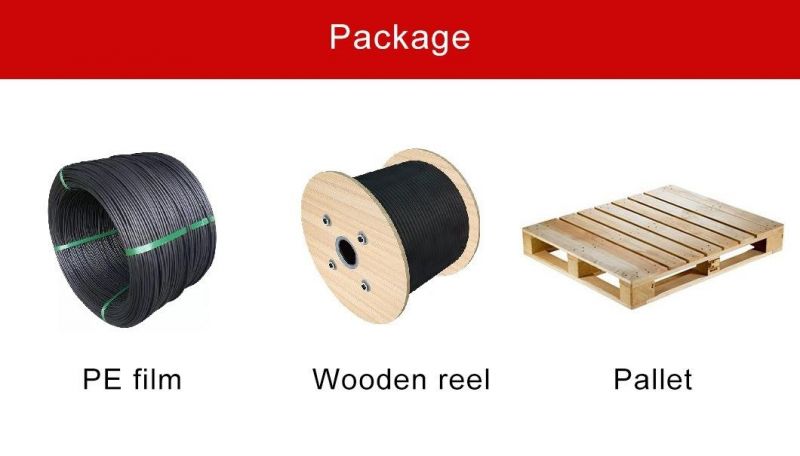

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
