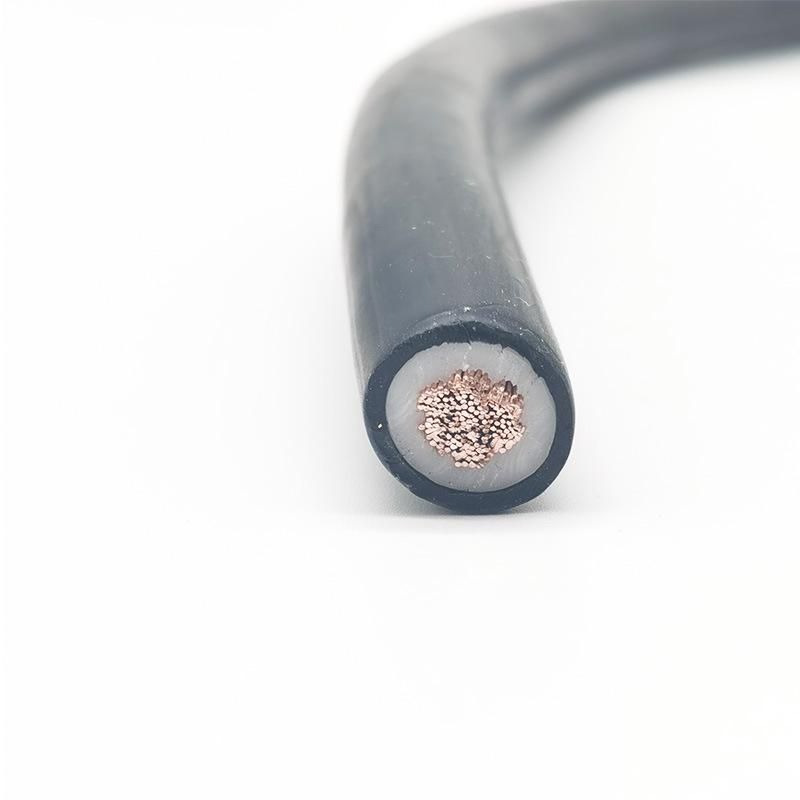

TUV CE Certified Fg16m16 Cable 0.6/1kv Single Core Power Cable LSZH

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installation
  • Conductor Material：Copper
  • Sheath Material：LSZH Compound
  • Insulation Material：Hepr

Base Info

  • Model NO.：FG16M16
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemTUV CE Certified FG16M16 CableConductorFlexible annealed plain copper (as client's required)InsulationHEPR, hard ethylene-propylene-rubber (as client's required)Outer SheathLSZH compound (as client's required)Nominal Voltage600/1000VTest voltage4000VTemperature RangeFlexing Temperature: 0°C to +90°C
Static Temperature: -15°C to +70°CMinimum bending radius4 x ØColorOptionalCertificationTUV CECharacteristicHigh Flexible
Flame Retardant
Fire Resistant
No-toxic
Halogen-Free
No Smoke
LSZH
Reduced Emission of Corrosive GasesApplicationSingle core flexible power cable for fixed installation, G16 rubber insulated, LS0H thermoplastic sheathed. Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.
For indoor and outdoor installations, also in wet locations; for fixed installation on masonry or on metallic structures; direct laying in earth is permitted.
The cables are suitable for general applications in construction work subject to fire reaction requirements; for bundle installations with high risk of fire due to the high crowd density or due to the long time for displacement or to the big damage to animals or things
