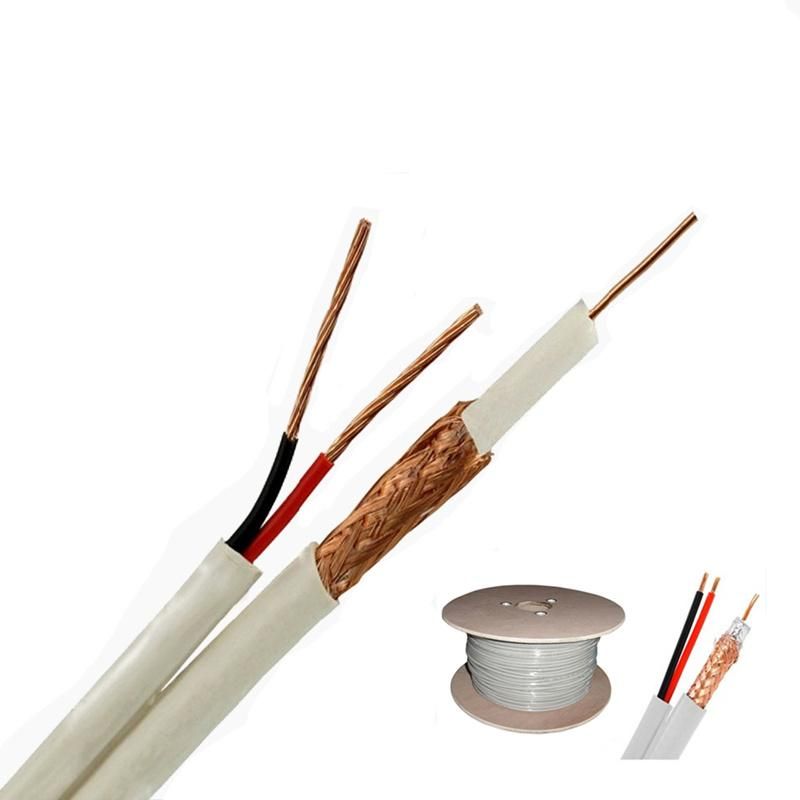

• Model NO.：RG59+2C
• Wire Core Material：Optional
• Certification：RoHS, CE, ISO9001, CCC
• Brand：Hanli
• Conductor：0.8mm Bc,CCS
• Insulation：Fpe
• Shield：Al Foil
• Braiding：48-144*0.12mm CCA or Customized
• 2ND Shield：Available
• Power Cable：7*0.37mm CCA,Bc or Customized
• Diameter：8.7*6.1
• Jacket：PVC,PE
• Length：305m
• Transport Package：305m
• Specification：wooden reel, pull box, carton, pallet
• Trademark：hanli
• Origin：Zhejiang
• HS Code：8544200000
• Production Capacity：1500km,Week

@ Frequency MHzdB/100 ft. (MAX.)dB/100 meters (MAX.)5 MHz0.58 dB2.65 dB55 MHz1.60 dB5.25 dB83 MHz1.95 dB6.40 dB187 MHz2.85 dB9.35 dB211 MHz3.05 dB10.00 dB250 MHz3.30 dB10.82 dB300 MHz3.55 dB11.64 dB350 MHz3.85 dB12.63 dB400 MHz4.15 dB13.61 dB450 MHz4.40 dB14.43 dB500 MHz4.66 dB15.29 dB550 MHz4.90 dB16.08 dB600 MHz5.10 dB16.73 dB750 MHz5.65 dB18.54 dB865 MHz6.10 dB20.01 dB1000 MHz6.55 dB21.49 dB

4. Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.

5. Packing:

1)     Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2)     Inner Packing:Wooden reel,plastic reel,and paper reel
3)     Outer Packing:Carton box,pull out box,pallet available
4)     Other packing available according to clients'request
Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.

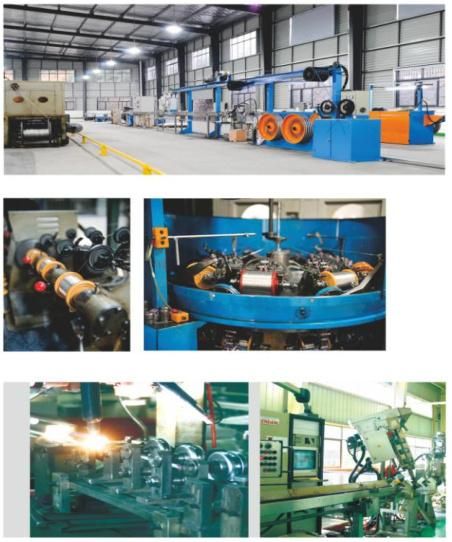

6.Company Show


7.Trade Show


8.Certificate
