Heat Resistant Electrical Silicone Rubber Coated Cable Wire
Wuhan Elite Industry Co., Ltd.- Type：High Temperature Cable
- Conductor Type：Strands
- Conductor Material：Copper
- Sheath Material：Silicone Rubber
- Insulation Material：Silicone Rubber
- Material Shape：Round Wire
Base Info
- Model NO.：26~12AWG
- Range of Application：Cold-Resistant
- Certification：ISO9001, CE, UL
- Brand：No Brand
- Colour：Black,White,Red,etc
- Package：100,200,305,610m Per Roll
- Conductor：Copper or Pure Nickel
- ISO：Yes
- Lead Time：10-15 Working Days
- Transport Package：in Roll, Spool+Carton
- Specification：AWG 24, 22, 20, 18, 16, 14, 12
- Trademark：no
- Origin：China
- HS Code：8544491900
- Production Capacity：10, 0000 Meters
Description
Size
Conductor Structure
(No./mm)
Insulation
Thickness
(mm)
Diameter
(mm)
Max. Conductor Resistance
(20ºC) (Ω/km)
26
7/0.16
≥0.76
2.1±0.2
150
24
7/0.20
2.2±0.2
94.2
22
7/0.254
2.4±0.2
59.4
20
7/0.32
2.5±0.2
37.4
18
16/0.254
2.8±0.2
23.5
16
26/0.254
3.1±0.2
14.6
14
41/0.254
3.6±0.2
8.96
12
65/0.254
4.1±0.2
5.64

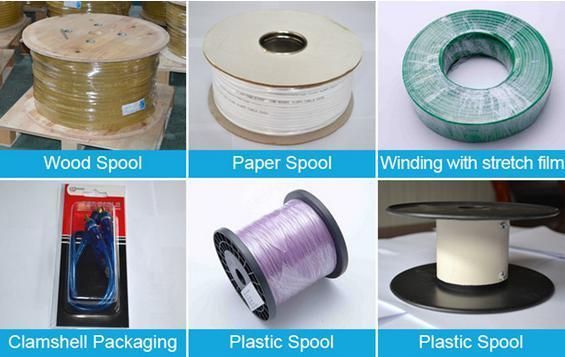

6. Packing Methods

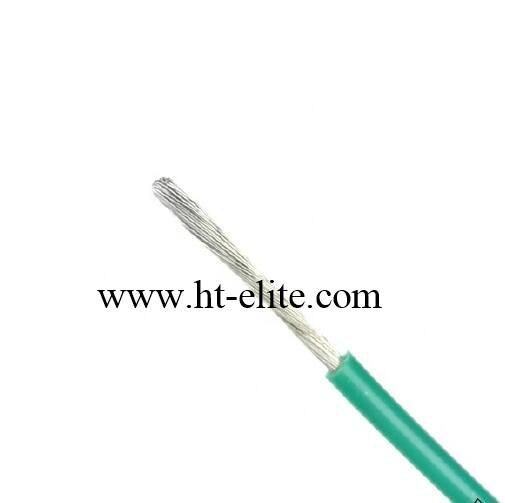

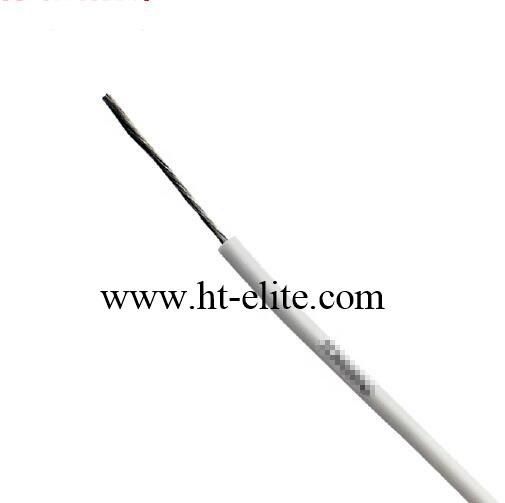

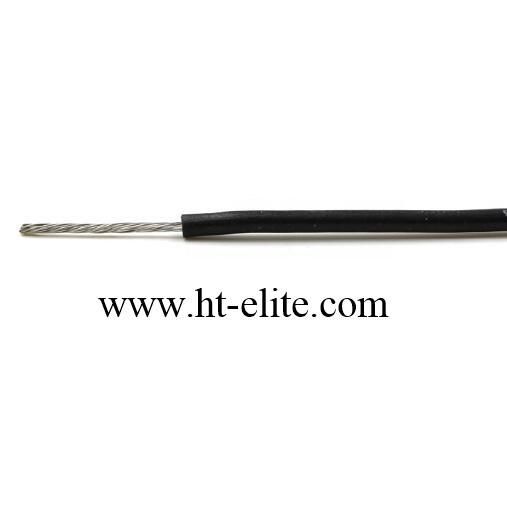

5. Photos for Reference
