• Model NO.：H07RN-F
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC, RoHS, VDE, TUV
• Brand：Fengda
• Colour：Red,Green,Blue,Black,White,as Request
• Flame Test：Yes
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Factory Type：Manufacturer
• Transport Package：Rolls or According to Cusotmers′ Reques
• Specification：1 to 400mm2
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)

Na2xy/Yjlv

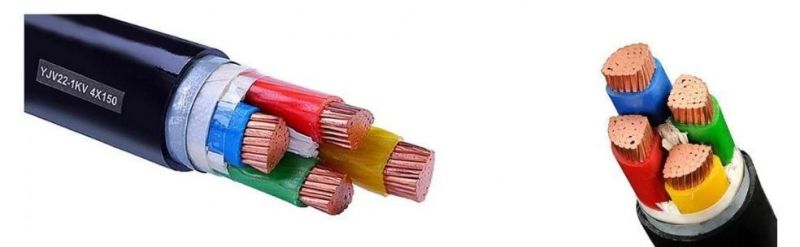

Product Description:

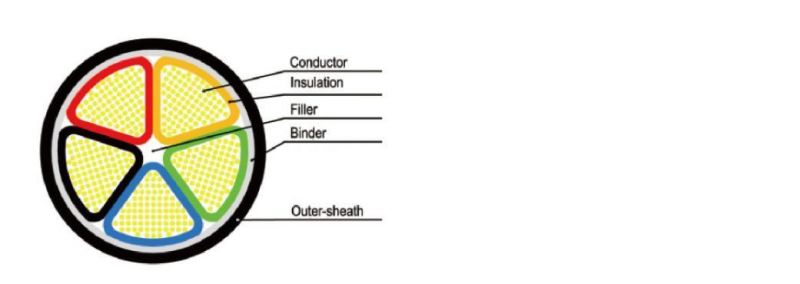

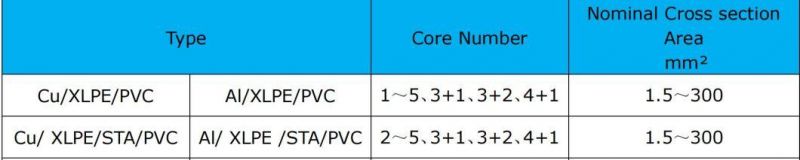

Type:  CU/XLPE/PVC               AL/XLPE/PVC
           CU/XLPE/STA/PVC       AL/XLPE/STA/PVC

Standard references:
The cable is manufactured according to GB/T 12706.1-2008 or IEC 60502-1:2004.
It is suitable to be laid in the power line with rated voltage of 0.6/1kv (U0/U) for power transmission.

Applications:
Laid indoors, in tunnels and in pipes.
Able to withstand certain laying traction.
Not able to withstand mechanical external forces.
Single core cable is not allowed to be laid in magnetic made of material pipes .

Operation Characteristic

1. The maximum rated temperature

When the cable is used for a long time, the maximum working temperature of the core does not exceed 90⁰C, and the temperature of conductor shall not exceed 250⁰C at short circuit for 5 seconds.
     2. Installation requirement
The installation of cables is not limited by the difference of elevation along the route. The ambient temperature should not be less than 0⁰C during  installation.The permissible bending radius for cable shall be complied with the following regulations:
For single core: 20(D+d) +/_ 5%
For multi-core: 15(D+d) +/_ 5%
(D--actual outer diameter of the cable; d--actual outer diameter of the conductor )
Single core cable of using in AC circuit shall be without armor or use non-magnetic metal material armor and shall not be laid in magnetic ducts.
