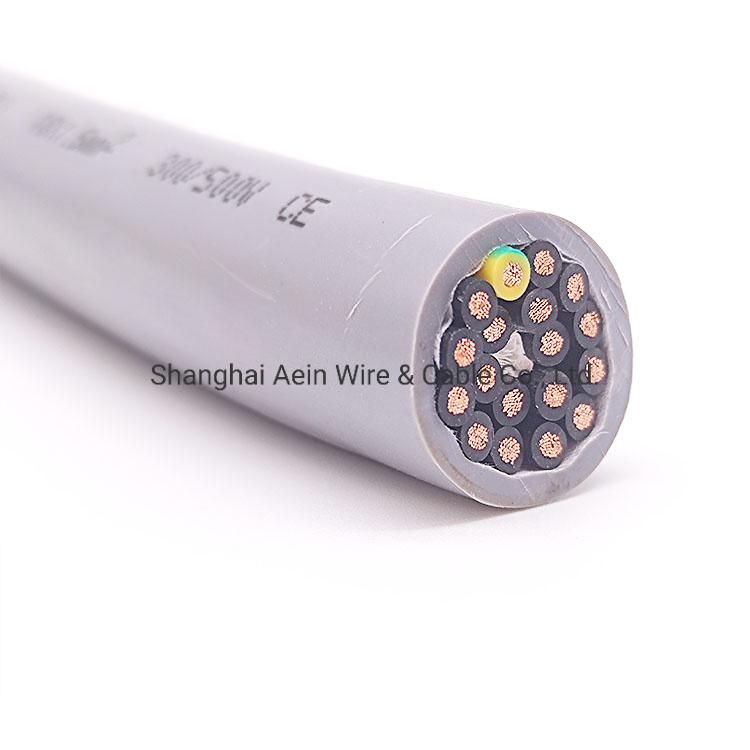

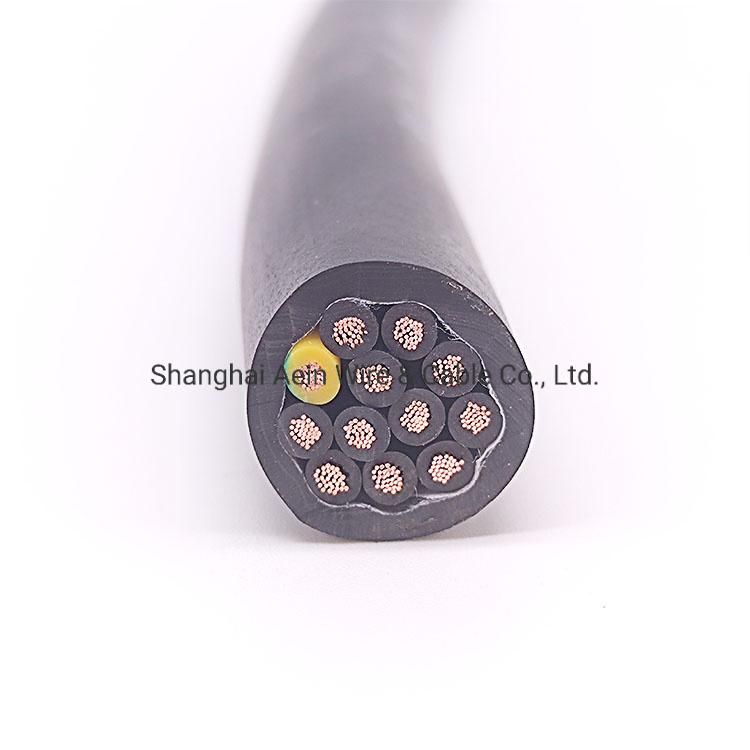

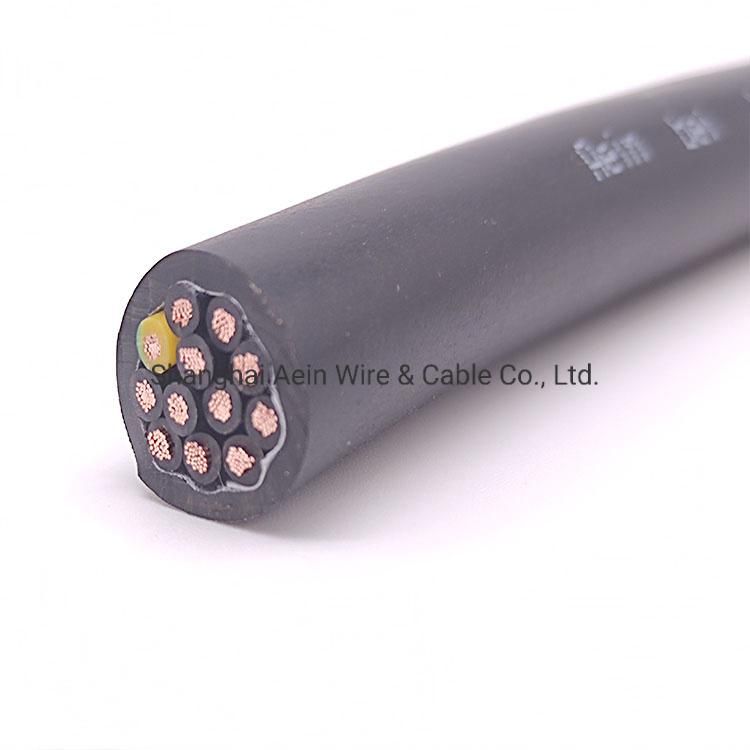

Helukabel Alternative Oil-Resistant Jz-Hf / Oz-Hf PVC Cable 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：JZ-HF , OZ-HF Cable
  • Range of Application：Cold-Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHelukabel Alternative Oil-resistant PVC Cable 300/500VConductorCopper wire bare, extra finely stranded acc. to DIN VDE 0295 Class
6 / IEC 60228 Class 6InsulationPVC, compound type Z 7225WrappingFleece wrapping over each stranding layerOuter SheathOil-resistant special PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM5)Nominal VoltageAC Uo/U 300/500 VNominal Voltage4 KVTemperature RangeFlexible -10°C to +80°C
Fixed -40°C to +80°CMinimum bending radiusFlexible 7.5x Outer-Ø
Fixed 4x Outer-ØColorOptionalApplicationA highly flexible PVC drag chain cable used for installation in dry and damp rooms, but not outdoors. Used for frequent lifting and bending stress in machine and tool construction, in robotics and on permanently moving machine parts. With free movement, without tensile stress and without forced motion control capabilities, these cables have proven their reliable performance in drag chain applications.
