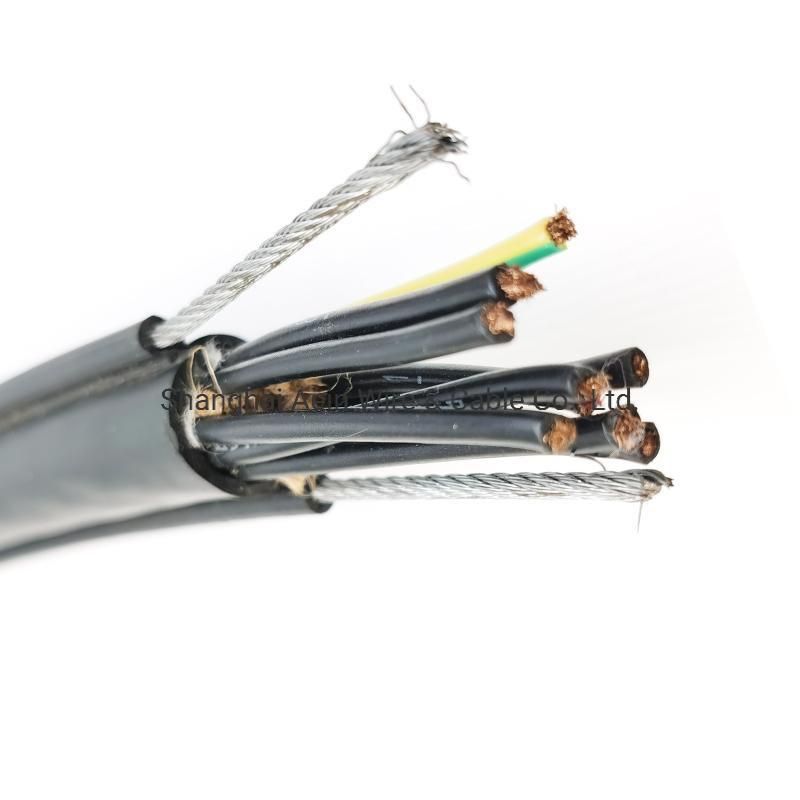

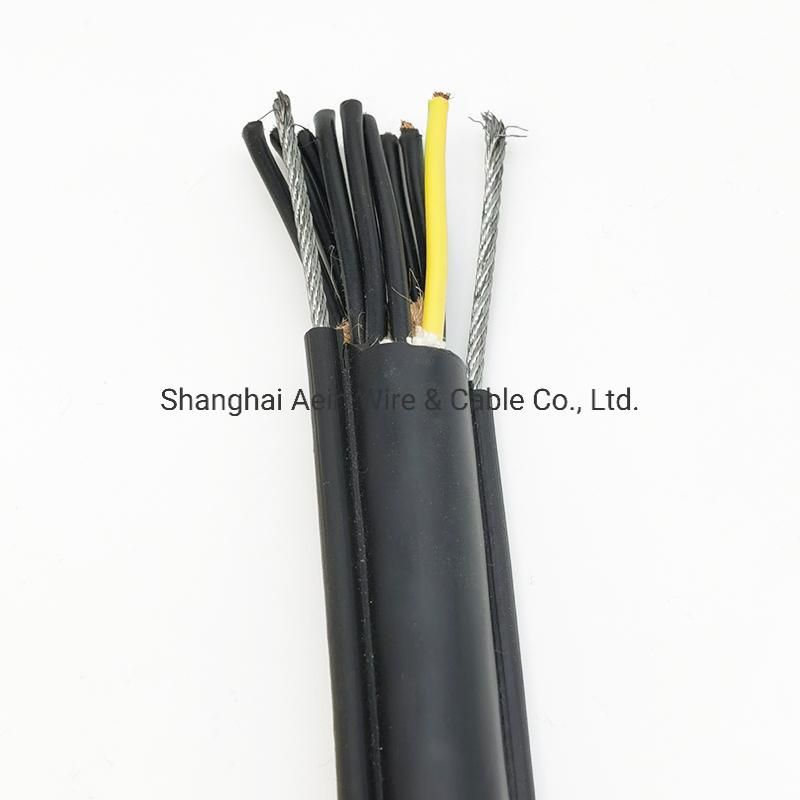

Lift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Lift-2S Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemLift and Hoist Control Cables 300/500V Lift-2S PVC Sheathed CableConductorBare copperInsulationSpecial PVCOuter sheathSpecial PVCOperating Voltage300/500 V Test Voltage3 kVTemperature RangeFlexible -15°C to +70°C
Fixed -40°C to +70°CMinimum Bending Radius20 x Outer-ØColorOptionalApplicationThese cables are used as control or feeder cables in lifts and hoists. The special attention given to both production and material quality for these cables has made them ideal even for use under extreme conditions. Lift-2S has also proven itself to be ideally suited for installation in conveyor systems and manual control units. The external steel support wires can be dismounted without damaging the cable insulation.


Lift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed Cable
Lift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed Cable

Lift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed CableLift and Hoist Control Cables 300/500V Lift-2s PVC Sheathed Cable
