• Model NO.：RG 6
• Brand：General Clad
• Dielectric Material：Foam FEP
• Jacket Material：PVC
• Inner Shield (Braid) Coverage：60 %
• Inner Shield (Braid) Material：Aluminum
• Inner Shield (Tape) Material：Aluminum,Poly, Bonded
• Outer Shield (Braid) Coverage：40 %
• Outer Shield (Braid) Material：Aluminum
• Outer Shield (Tape) Material：Aluminum,Poly, Non-Bonded
• Transport Package：Packed by Carton,Wooden Drum,Wooden Pallet
• Trademark：Copper clad steel wire
• Origin：China
• Production Capacity：200km,Month

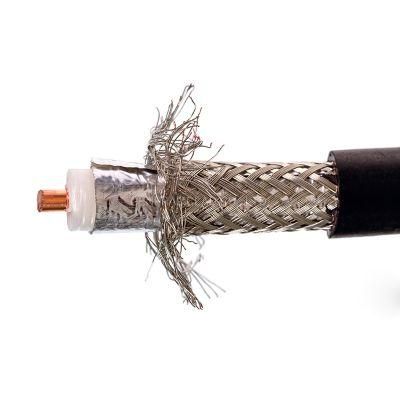

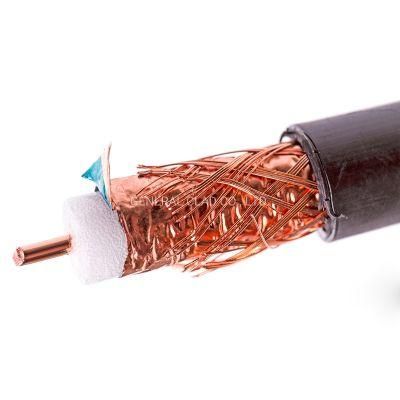

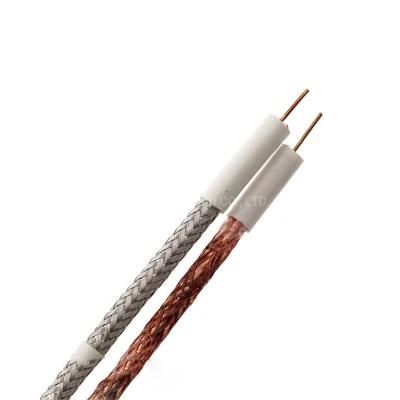

Cable TypeSeries 6Center Conductor Type                                                    Solid Construction TypeNon-armoredJacket Color                                                                         White/Black
DimensionsCable Length304.8 m | 1000 ftDiameter Over Center Conductor Tolerance±0.0004 inDiameter Over Center Conductor, specific0.0403 in per 1 strandDiameter Over Dielectric4.318 mm | 0.17 inDiameter Over Jacket Tolerance±0.006 inDiameter Over Jacket, nominal6.02 mm | 0.237 inDiameter Over Shield (Braid)5.207 mm | 0.205 inJacket Thickness0.381 mm | 0.015 inJacket Thickness, minimum spot0.254 mm | 0.01 inCenter Conductor Gauge18 AWGShield (Braid) Gauge34 AWGOuter Shield (Braid) Gauge 34 AWG
Electrical SpecificationsCapacitance50.853 pF/m | 15.5 pF/ftCharacteristic Impedance75 ohmCharacteristic Impedance Tolerance±3 ohmConductor dc Resistance28.6 ohms/kft | 93.832 ohms/kmDielectric Strength, conductor to shield2500 VdcJacket Spark Test Voltage2500 VacNominal Velocity of Propagation (NVP)84 %Shield dc Resistance6.4 ohms/kft | 20.997 ohms/kmStructural Return Loss15 dB @ 1000-3000 MHz | 20 dB @ 5-1000 MHzStructural Return Loss Test Method100% Swept Tested
Material SpecificationsCenter Conductor MaterialCopper-clad steel wireDielectric MaterialFoam FEPJacket MaterialPVCInner Shield (Braid) Coverage60 %Inner Shield (Braid) MaterialAluminumInner Shield (Tape) MaterialAluminum/Poly, bondedOuter Shield (Braid) Coverage 40 %Outer Shield (Braid) Material AluminumOuter Shield (Tape) Material Aluminum/Poly, non-bonded
Package
