• Model NO.：FTP Cat5e
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：F,UTP Cat5e
• Brand：Risun or OEM
• Number of Conductor Pairs：4
• Size：24 AWG
• Stranding：Solid
• Solid Annealed Bare Copper：Al Foil,Mylar
• Rip Cord：Yes
• Insulation Material：HDPE
• Jacket Material：PVC+LSZH
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

F/UTP CAT5E solidConductor Size24AWGConductor MaterialSolid Bare CopperInsulation MaterialHigh Density Polyethylene (HDPE)Insulation Diameter0.88 ± 0.03mmNumber of Conductors8 ConductorsNumber of Pairs4 PairsOuter Jacket Rip CordYesOuter Shield MaterialAL Foil/MylarDrain WireTinned Copper 0.45mmOuter Jacket MaterialLSZHOuter Jacket Diameter6.6mm ± 0.5mmApplication• 10/100/1000Base-T
• 100Base-VG
• 155 Mbps and 622-Mpbs ATM
• Other high-performance applications
   ▫ Outside Plant
   ▫ Direct Burial
   ▫ Aerial


Mechanical Characteristics:Maximum CapacitanceUnbalance to earth330 (pf/100m)Nominal Velocity of PropagationN/AMaximum Delay537.60 @ 100MHz (ns/100m)Maximum Delay Skew≤ 45 (ns/100m)Maximum Conductor DC Resistance9.5 (@ 20°C OHm/100m)Maximum Operating Voltage - UL300V RMSMaximum DCR Unbalanced5% (@ 20°C)Attenuation (Maximum)▫ 22.0dB/100m (328.1ft.) @ 100MHz
▫ 44.9dB/100m (328.1ft.) @ 350MHz1.0 - 100MHz Impedance100Ω ± 15%NEXT (Minimum)▫ 35.3dB/100m (328.1ft.) @ 100MHz
▫ 27.1dB/100m (328.1ft.) @ 350MHzPS-NEXT (Minimum)▫ 32.3dB/100m (328.1ft.) @ 100MHz
▫ 24.1dB/100m (328.1ft.) @ 350MHzReturn Loss (Minimum)▫ 20.1dB/100m (328.1ft.) @ 100MHz
▫ 16.0dB/100m (328.1ft.) @ 350MHz

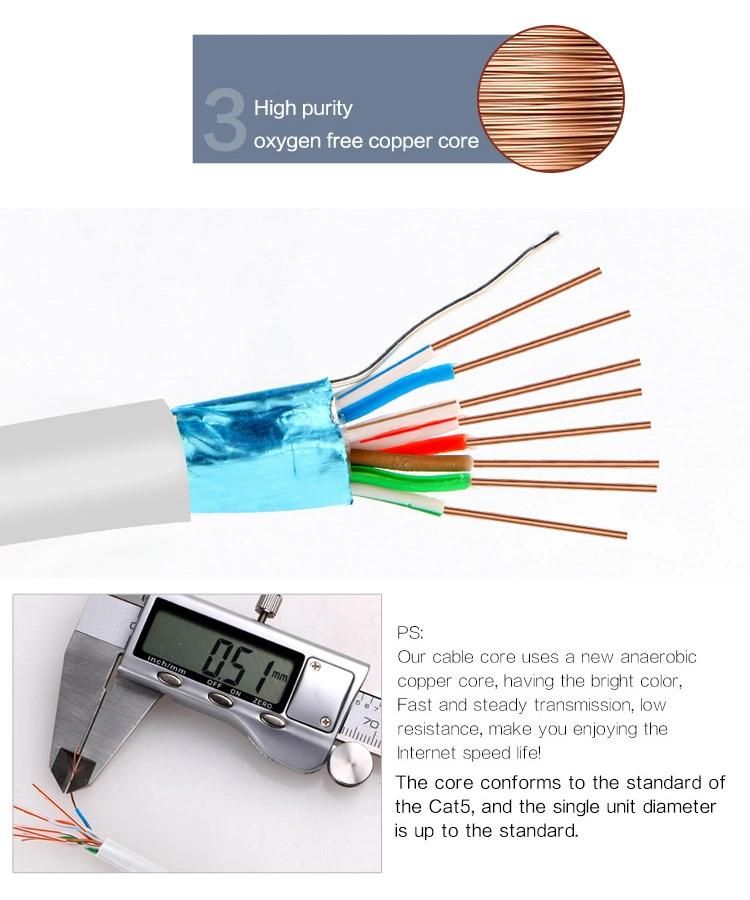

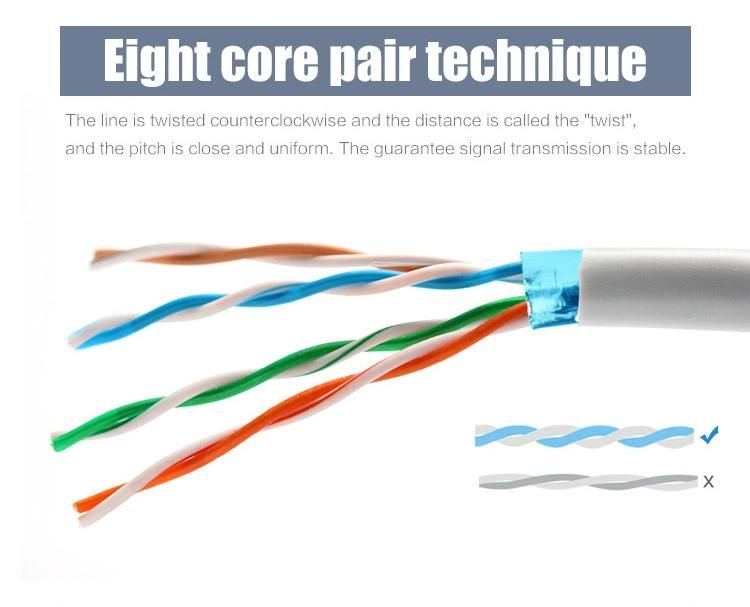

Details Images:












Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
