• Model NO.：QR540
• Wire Core Material：Steel
• Certification：CE, ISO, RoHS, CCC, UL
• Model：MHYV-xx
• Brand：FUJI

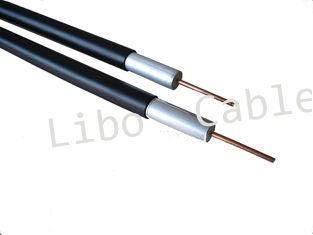

• Qr540 Alumium Trunk Cable：Welded Aluminum Tape as Outer Conductor
• Aluminum Tape as Outer Conductor：Truck Calbe
• Transport Package：Plate
• Specification：CE, ROSHS, SGS
• Trademark：Libo cable
• Origin：Zhejiang, China
• HS Code：854420
• Production Capacity：12000kms,Month

Physical dimensions
component
inches
mm
Inner conductor
0.124
3.15
diameter over dielectric
0.514
13.03
diameter over aluminum shield
0.540
13.72
Outer conductor thickness
0.0135
0.343
Diameter over jacket
0.610
15.49
Jacket wall thickness
0.029
0.74

Mechanical performance:
Minimum bending radius: 4.0 inches/10.2cm
Maximum pulling tension: 220lbs /100kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 88% nominal
Normal DC loop resistance @68OF: 1.61 Ohms/100ft(5.28 ohms/km)

Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.14
0.46
55MHZ
0.47
1.54
83MHZ
0.58
1.90
211MHZ
0.95
3.12
250MHZ
1.03
3.38
300MHZ
1.13
3.71
350MHZ
1.23
4.03
400MHZ
1.32
4.33
450MHZ
1.40
4.59
500MHZ
1.49
4.89
550MHZ
1.56
5.12
600MHZ
1.64
5.38
750MHZ
1.85
6.07
865MHZ
2.00
6.56
1000MHZ
2.17
7.12

Packing:

Buyer's labels OEM/ODM design service is available.

Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Libo cable is equipped with a Provincial-level Research and Development Center.
