2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Inner Conductor：24 AWG Bc,CCA
  • Insulation Material：HDPE
  • Pairs：2pairs
  • No.of Conductor：4core, 2pairs
  • Nom. Thick：0.55mm
  • Color：Gray, White, Black
  • Powe Cable Conductor：16X0.25mm Cu
  • Export Length：100m,Roll, 200m,Roll, 305m,Roll
  • Transport Package：Pull out Box, Carton Box, Pallet
  • Specification：2P UTP CAT5E+2C Siamese Network cable
  • Trademark：Risun
  • Origin：Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：30000boxes,Month

Description

Video and Control PairsInner Conductor0.0196"/0.50mm/24AWG Bare CopperStrandingSolidInsulation MaterialPolyethylene 0.008"/0.2mmNumber of Conductors4(2 Pair)ShieldNonePower ConductorsInner ConductorBare copper or Copper Clad AluminumStranding16×0.25mmInsulation MaterialPVC 0.008"/0.2mmNumber of Conductors2ShieldNoneVideo and Control PairsTemperature Rating-20ºC to 60ºCOperating Voltage300 V RMSMax.Capacitance @1 KHz45.9 pf/100mNom.Impedance100 OhmsNom.Velocity of Propagation0.66DC Resistance per Cond. @ 20ºC26 Ohms/1M' NomPower ConductorsTemperature Rating-20ºC to 60ºCOperating Voltage300 V RMSInsulation ColorsBlack, RedOverall ConstructionJacket TypeUV-PEJacket ColorSiamese-BlackNom.O.D.5.1mm × 4.8mmMechanical PropertiesMax.Recommended Pull Tension15 KGSMin. Bend Radius(Install)86mmOrder Informations: MarkingRISUN Video Over UTP 2 Pair Cat5E Type + 2C-0.75MM2 FIGURE 8Inner Package500FT/PULL BOX, 1000FT/Wooden Spool,PalletDelivery timeNormally 20-25 days after received the deposit.BrandRISUN OR OEM

Application & Certificates:

2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire
2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire


2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera WireCompany Introduction
2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire
Packing:
2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire


2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire

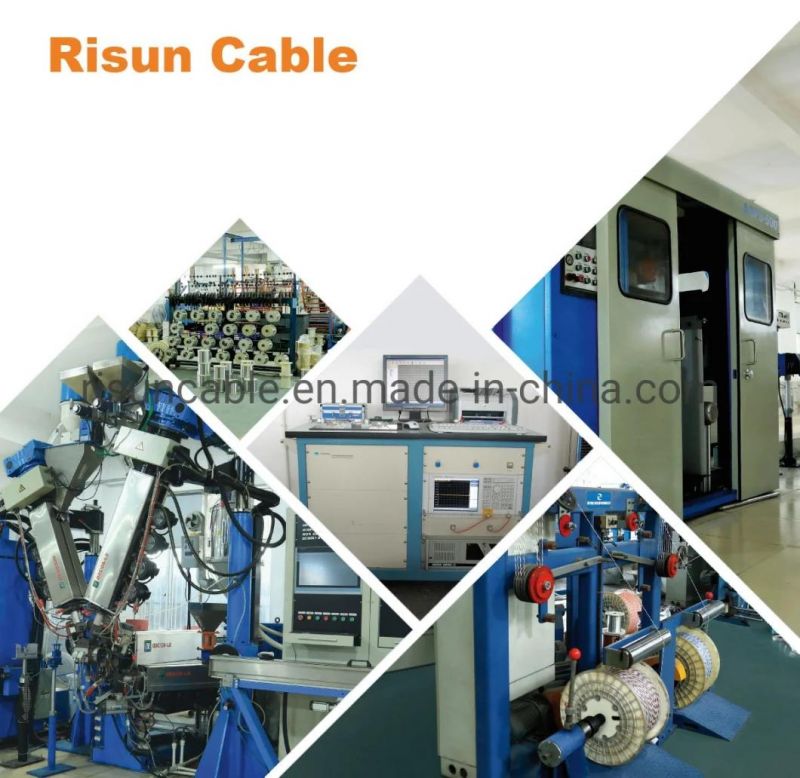

Production line:
2p UTP Cat5e+2c Siamese Network with Power CCTV Cable Twisted IP Ethernet Camera Wire


FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
