• Model NO.：T-307H
• Specification：CE, SGS, CSI, ISO9000
• Trademark：SKYCOM
• Origin：Nanjing, China
• HS Code：8515319900
• Production Capacity：500PCS,Month

Basic Info.

Model NO. T-307H Specification CE, SGS, CSI, ISO9000 Trademark SKYCOM Origin Nanjing, China HS Code 8515319900 Production Capacity 500PCS/Month

Product Description

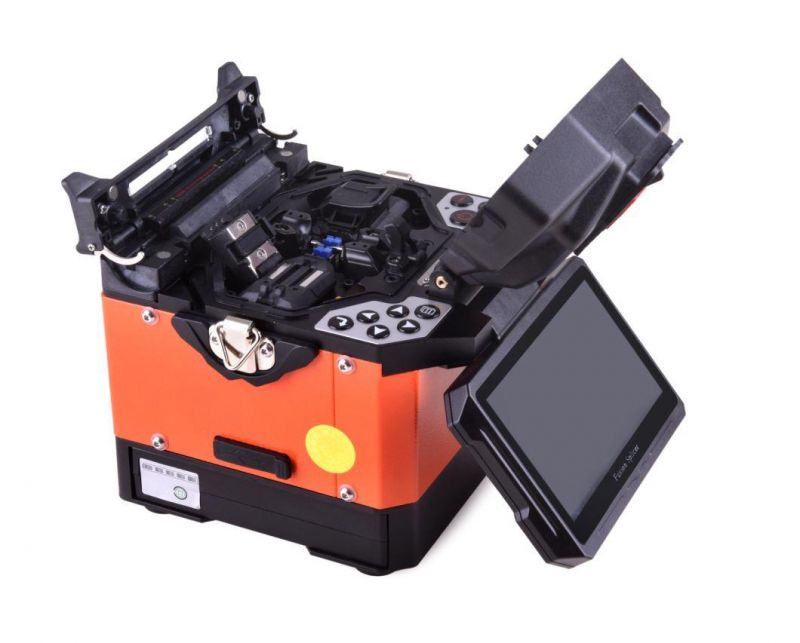

2019 New Skycom Core Alignment Fusion Splicer
Nanjing Tianxingtong has been dedicated to research and  development, manufacturing fusion splicer for years. Our products are widely applied to support the use of all kinds of optical communication engineering at home and abroad.
Skycom T-307H is a multipurpose optic fusion splicer, with 3 in 1 multipurpose fixture, applicable for  Rubber-insulated wire, fiber optic patch cord, bare fiber.

Main Features:
5 inches high resolution colorful LCD display
Average splice time: 7 second
Average tube-heat time: 15 second
Lithium battery: Up to 180 times of continuous splice and heat
Simultaneous X and Y views with 400 times mangification
New developed technology providing wind and dust resistance
Splicing mode: Auto& Manual
USB port
Storing 6, 000 groups of splice results.
Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)





Specifications:
Applicable Fibers	SM, MM, NZ-DS, EDF , Pigtail, Rubber-insulated series wire Series
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥ 60dB
Tension Test	2.0N(200gf)(Standard)
Typical splicing time	10 seconds
Typical heating time	30 seconds
Splicing Program	50 groups
Protection Sleeve Length	20mm, 40mm, 60mm
Operating Language	Chinese, English
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) / 12V 8AH lithium battery
Monitor	5 inches high Resolution colorful LCD display
Fiber image magnification	Simultaneous X and Y views with 200 times magnification
Storage of splice result	6,000 groups of latest splice results
Splicing Model	Auto & Manual
Optical Fiber Fixture	Bare Fiber & Rubber-insulated Wire
Dimensions	120(W)*120(D)*130(H)
Weight	1.29kg
