• Model NO.：PIII 412 JCAM
• Wire Core Material：Copper Clad Aluminum
• Certification：CE, ISO
• Model：P3 412 Jcam
• Brand：Libo
• Diameter Over Jacket：12.07 mm
• Transport Package：500m,762m 2500ft,1000m
• Specification：P3 412 JCAM
• Trademark：Libo
• Origin：China
• HS Code：85442000
• Production Capacity：1500km Per Month

Physical dimensions

component

inches

mm

Inner conductor

0.089

2.26

Diameter over dielectric

0.362

9.19

Diameter over outer conductor

0.411

10.46

Outer conductor thickness

0.024

0.61

Diameter over jacket

0.475

12.07

Jacket wall thickness

0.0315

0.80

messenger

0.109

2.77

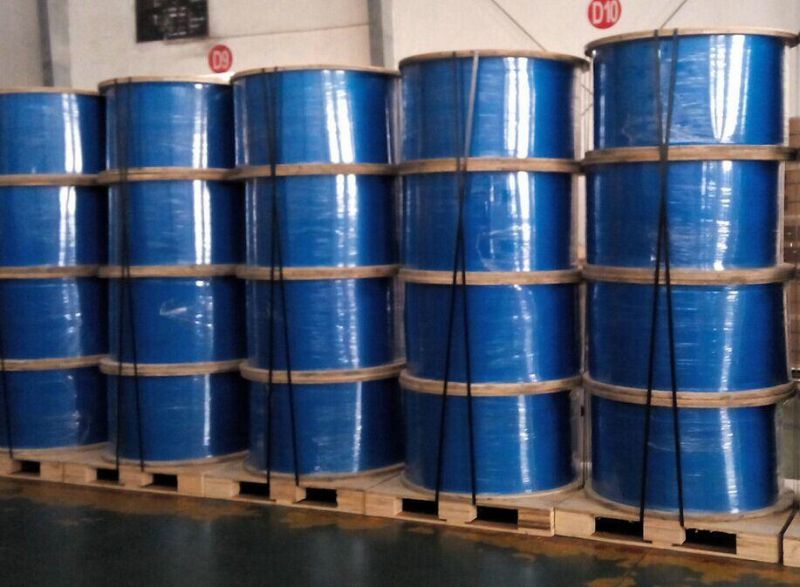

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.Buyer's labels and cartons OEM/ODM desgin service is available.

Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 150lbs /68kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance@68^OF: 2.57 ohms/1000ft (8.43 ohms/km)

Attenuation@ 68^OF(20^oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.20

0.65

55MHZ

0.69

2.26

83MHZ

0.86

2.82

211MHZ

1.41

4.62

250MHZ

1.54

5.05

300MHZ

1.70

5.57

350MHZ

1.87

6.13

400MHZ

1.97

6.46

450MHZ

2.11

6.92

500MHZ

2.24

7.34

550MHZ

2.35

7.71

600MHZ

2.47

8.10

750MHZ

2.78

9.12

865MHZ

3.01

9.87

1000MHZ

3.27

10.73


Applications:

P3 412JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Competitive Advantage:

• The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
• To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
• Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
• Libo cable is equipped with a Provincial-level Research and Development Center.
