• Material Shape：Round Wire
• Range of Application：Cold-Resistant
• Certification：ISO9001, CE
• Power：40W,M
• Voltage：220V 380V
• Transport Package：Carton
• Specification：Colomony thread Flame retardant PVC outeiacket
• Trademark：SENPHUS
• Origin：China

Basic Info.

Material Shape Round Wire Range of Application Cold-Resistant Certification ISO9001, CE Power 40W/M Voltage 220V 380V Transport Package Carton Specification Colomony thread Flame retardant PVC outeiacket Trademark SENPHUS Origin China

Product Description

Application

Outdoor snow melting

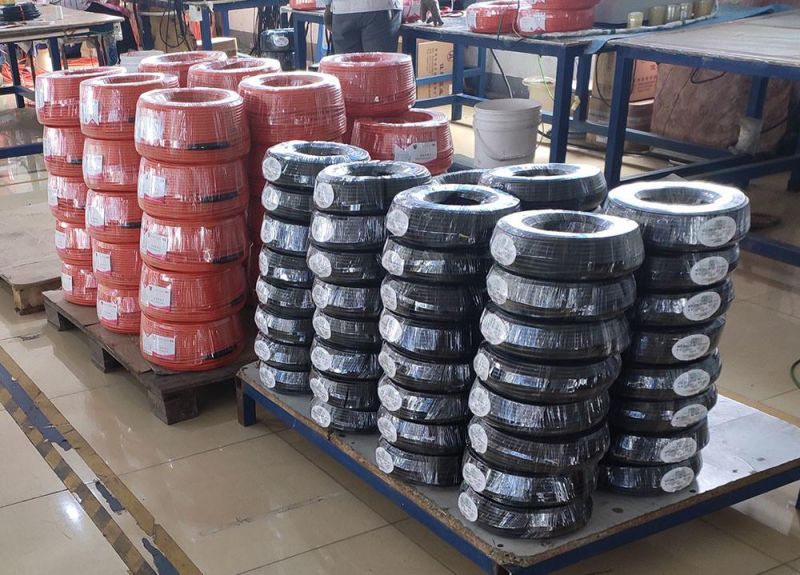

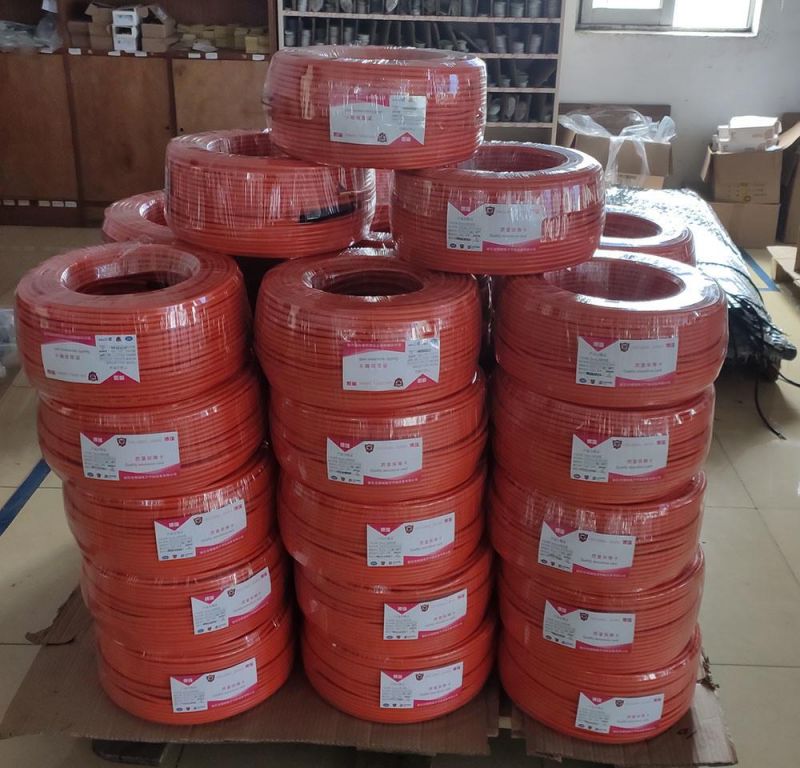

Outdoor Snow Melting Cable Twin Conductor Two Heating Wires

Radial power supply is adopted, which is led out from the snowmelt heating cable distribution box and laid along the cable bridge inside the outer wall of the lane to each heating cable.
The control mode is automatic and manual. In the automatic mode, PLC is used as the main control unit. The intelligent temperature inspection instrument transmits the surface temperature of the lane to the PLC. At the same time, the snowfall and rainfall detector transmits the snowfall or rainfall information to PLC. PLC compares the above information with the set temperature, and puts in or cuts off the number and time of heating cable according to the set program.The heating cable can also be manually put in and cut off. The intelligent temperature inspection instrument is installed on the distribution box to display the temperature of each temperature measuring point in real time. When the temperature exceeds the limit, the sound and light alarm will be given and the operation of the heating cable will be stopped.

Grounding

The grounding wire, metal protective layer, threading steel pipe, cable bridge and metal shell of distribution box of all heating cables shall be reliably grounded (PE).

Type/Power

Type	Cable length	Power(W)	Voltage(V)	Resistance(Ω)
SHSM-40-40M-220V	40	1600	220	30.25
SHSM-40-60M-220V	60	2400	220	20.17
SHSM-40-80M-220V	80	3200	220	15.13
SHSM-40-100M-220V	100	4000	220	12.10
SHSM-40-120M-220V	120	4800	220	10.08
SHSM-40-40M-380V	40	1600	380	90.25
SHSM-40-60M-380V	60	2400	380	60.17
SHSM-40-80M-380V	80	3200	380	45.13
SHSM-40-100M-380V	100	4000	380	36.10
SHSM-40-120M-380V	120	4800	380	30.08
